Additional Information
| Interface Options | Serial (RS-232), USB |
|---|---|
| Labels Per Day | 1,001 - 5,000 |
| Manufacturer AIDC | SATO |
| Max Roll Outer Diameter | 5.12 |
| Model Name | CG208 |
| Print Resolution | 203 dpi |
| Print Speed | 4 ips |
| Printer Type | Desktop |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 0.5 inch |

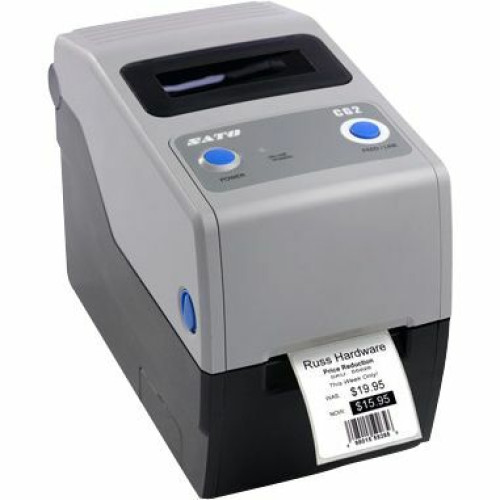

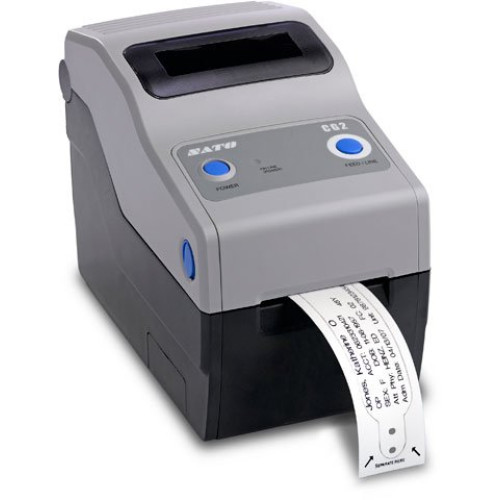

SATO CG208 Specs
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 2.20"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- JAN
- EAN
- Code 39
- Code 93
- Code 128
- GS1-128
- UCC/EAN 128
- Codabar
- ITF
- Industrial 2 of 5
- MSI
- Bookland
- POSTNET
- GS1 DataBar
- QR Code
- Micro QR
- PDF-417
- Micro PDF
- Maxi Code
- GS1 DataMatrix
General Information
- Product Type: Thermal Transfer Printer
- Product Series: CG2
- Brand Name: Sato
- Manufacturer: Sato Corporation
- Product Model: CG208
- Product Name: CG208 Label Printer
- Product Line: Compact
Physical Characteristics
- Height: 6.8"
- Width: 5"
- Depth: 9.3"
- Form Factor: Desktop
- Weight (Approximate): 3.53 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Media Types & Handling
- Maximum Label Width: 2.36"
- Maximum Label Length: 23.62"
- Media Type:
- Fanfold
- Roll Paper
- Media Thickness: 7.50 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Ribbon Core Size: 1.50"
- Maximum Roll Diameter: 5.12"
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 8 MB
- Flash Memory: 4 MB
Other
- Platform Supported: PC
Warranty
- Limited Warranty: 1 Year
