Additional Information
| Color | Dark Gray |
|---|---|
| Connectivity | Cordless, iOS/Android, iOS/iPad |
| Form Factor | Handheld |
| Included Cables | Scanner Only - No Cable |
| Interface Options | Bluetooth |
| Manufacturer | Socket Mobile |
| Model Name | Cordless Hand Scanner 7Mi |
| Scanner Capability | 1D |
| Scanner Type | CCD, Imager |

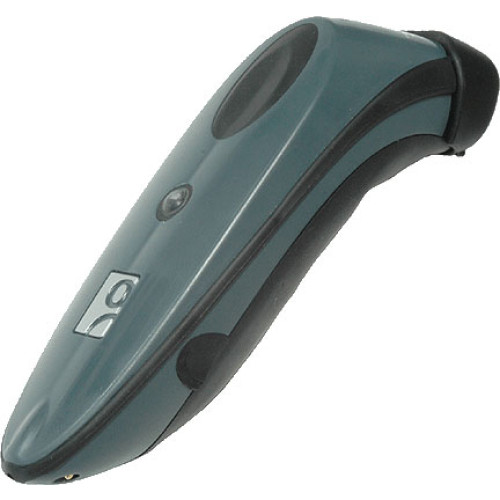

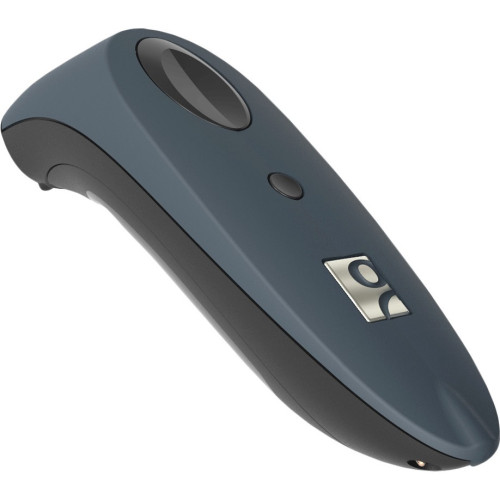

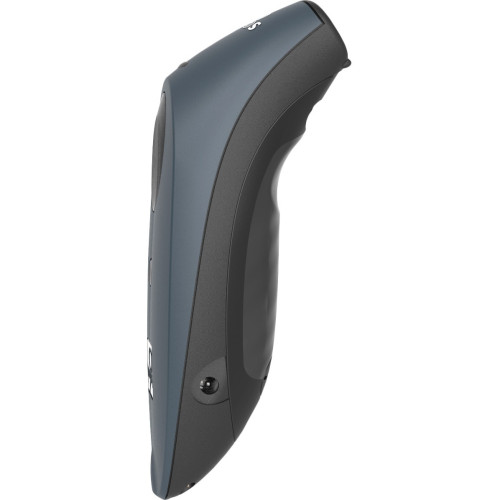

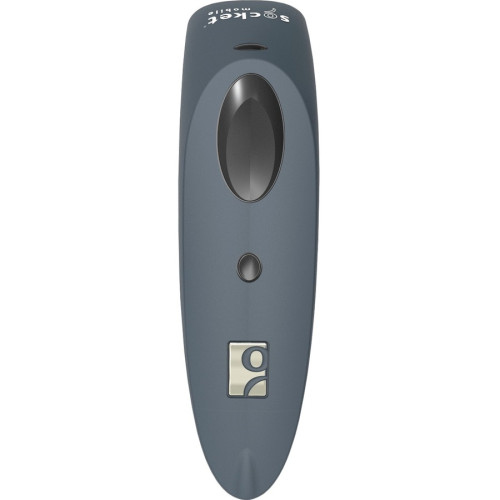

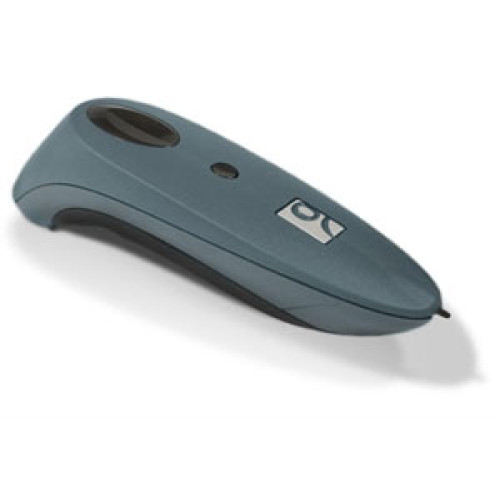

Socket Mobile Cordless Hand Scanner 7Mi Specs
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Bi-directional
- Scan Rate: 5 scan/s
- Connectivity Technology: Wireless
- Scanning Distance: 45"
- Light Source: Laser
- Barcode Symbology Supported:
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
General Information
- Product Type: Handheld Barcode Scanner
- Product Series: 7
- Brand Name: Socket
- Manufacturer: Socket Mobile, Inc
- Product Model: CHS 7Mi
- Product Name: Bluetooth Cordless Hand Scanner (CHS) 7Mi
Physical Characteristics
- Height: 5.1"
- Width: 1.4"
- Depth: 1.6"
- Color: Gray
- Weight (Approximate): 1.80 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- Bluetooth Cordless Hand Scanner (CHS) 7Mi
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/Belt Clip with Retractable Tether
- Software
- Bluetooth Cordless Hand Scanner (CHS) 7Mi
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/Belt Clip with Retractable Tether
- Software
- Certifications & Standards:
- Electrical Safety:
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
- EMI / RFI:
- FCC Part 15 Class C
- RSS 210
- iCES 003
- C-Tick
- CISPR 22
- CE EN55022
- EN55024
- TELEC
- Laser / LED Safety:
- IEC 60825-1
- EN 60825-1
- Platform Supported:
- iOS
- Android
- Smartphone
- PC
- Mac
Battery Information
- Battery Size Supported: AAA
- Number of Batteries Supported: 2
- Battery Rechargeable: Yes
- Maximum Number of Scans per Full Charge: 15000
- Battery Chemistry: Nickel Metal Hydride (NiMH)
Warranty
- Limited Warranty: 1 Year
Network & Communication
- Bluetooth: Yes
Power Description
- Power Source: Battery
