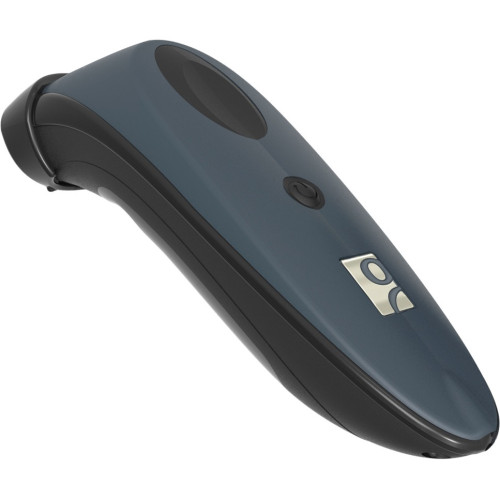

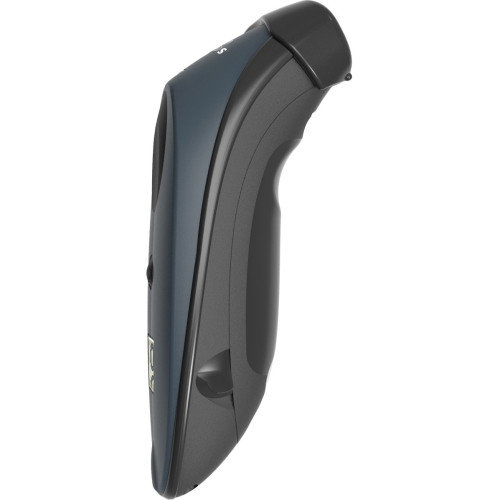

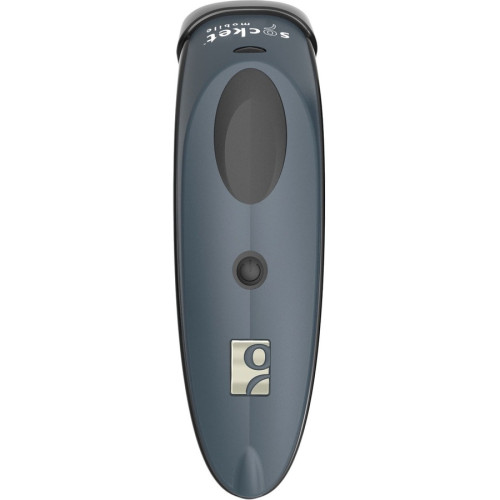

Socket Mobile 7Pi Barcode Scanner
Part #: CX2874-1413 | SKU: SOC221998

The Socket CHS 7Pi is a durable, high-performance 1D laser barcode scanner certified by Apple for iOS devices. It is best-suited for moderate to intensive scanning applications and/or scanning in sensitive lighting conditions.

Socket Mobile 7Pi Barcode Scanner

Part Details: Cordless - 1D Laser - Rugged Housing - Bluetooth Interface - Includes AC adapter and charging cable - Works with Apple iOS (iPad, iPhone, iPod) and Android - Charging cradle sold separately - Color: Gray

Need a different version of the Socket Mobile Cordless Hand Scanner 7Pi Barcode Scanner? View all 1 configurations

Additional Information

Color	Gray
Connectivity	Cordless, iOS/Android, iOS/iPad
Form Factor	Handheld
Included Cables	Scanner Only - No Cable
Interface Options	Bluetooth
Manufacturer AIDC	Socket Mobile
Model Name	Cordless Hand Scanner 7Pi
Scanner Capability	1D
Scanner Type	Laser

Socket Mobile Cordless Hand Scanner 7Pi Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Bi-directional
Scan Rate: 5 scan/s
Connectivity Technology: Wireless
Scanning Distance: 45"
Light Source: Laser
Barcode Symbology Supported:
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN

General Information

Product Type: Handheld Barcode Scanner
Product Series: 7
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: CHS 7Pi
Product Name: Bluetooth Cordless Hand Scanner (CHS) 7Pi

Physical Characteristics

Height: 5.2"
Width: 1.5"
Depth: 1.8"
Color: Gray
Weight (Approximate): 3.20 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Bluetooth Cordless Hand Scanner (CHS) 7Pi
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Llanyard/Belt Clip with Retractable Tether
- Software
- Bluetooth Cordless Hand Scanner (CHS) 7Pi
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Llanyard/Belt Clip with Retractable Tether
- Software
Certifications & Standards:
- <p>Electrical Safety:
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
- EMI / RFI:
- FCC Part 15 Class C
- RSS 210
- iCES 003
- C-Tick
- CISPR 22
- CE EN55022
- EN55024
- TELEC
- Laser / LED Safety:
- IEC 60825-1
- EN 60825-1
Platform Supported:
- iOS
- Android
- Smartphone
- PC
- Mac

Battery Information

Battery Size Supported: AAA
Number of Batteries Supported: 2
Battery Rechargeable: Yes
Maximum Number of Scans per Full Charge: 15000
Battery Chemistry: Nickel Metal Hydride (NiMH)

Warranty

Limited Warranty: 1 Year

Network & Communication

Bluetooth: Yes

Power Description

Power Source: Battery

Extended Details

Recommended Accessories for Model: Socket Mobile 7Pi Barcode Scanner

Socket Mobile Cordless Hand Scanner 7 Series Accessory
Part #: AC4055-1382 | SKU: SOC157173

Charging Cradle - Includes AC Adapter - Compatible with 7Di/7Pi/7Xi
Socket Mobile Cordless Hand Scanner 7 Series Accessory
Part #: AC4070-1518 | SKU: SOC291611

Socket Mobile Carrying Case (Holster) Bar Code Scanner - Belt Clip
