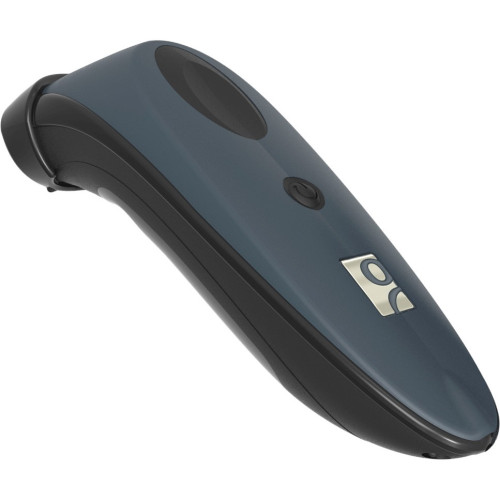

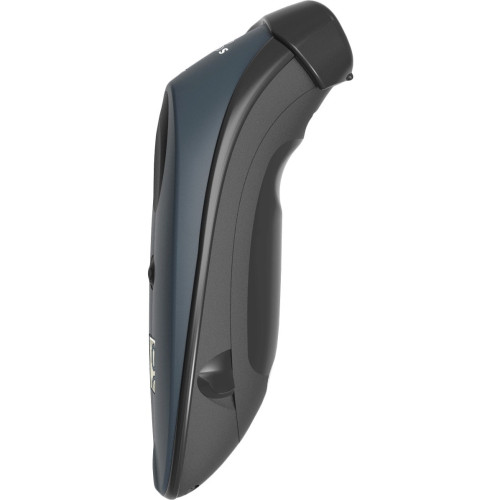

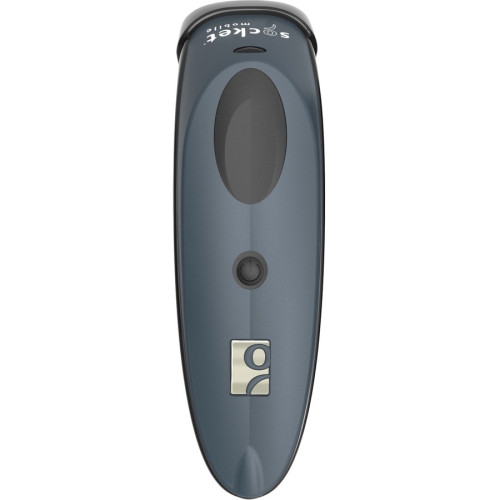

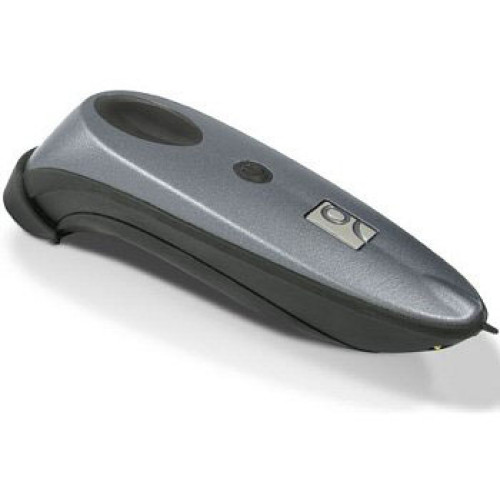

Socket Mobile CHS 7Di Barcode Scanner
Part #: CX2877-1472 | SKU: SOC194943

The Socket-Mobile Apple certified CHS 7Di combines durable construction, low cost and robust 1D barcode scanning performance for mobile workers in more rugged environments.

Socket Mobile CHS 7Di Barcode Scanner

Part Details: Cordless - 1D Linear Imager - Bluetooth Interface - Rugged Housing - Includes AC adapter and charging cable - Works with Apple iOS (iPad, iPhone, iPod) and Android - Charging cradle sold separately - Color: Gray

Need a different version of the Socket Mobile CHS 7Di Barcode Scanner? View all 1 configurations

Additional Information

Color	Gray
Connectivity	Cordless, iOS/Android, iOS/iPad
Form Factor	Handheld
Included Cables	Scanner Only - No Cable
Interface Options	Bluetooth
Manufacturer AIDC	Socket Mobile
Model Name	CHS 7Di
Scanner Capability	1D
Scanner Type	CCD, Imager

Socket Mobile CHS 7Di Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Rate: 5 scan/s
Connectivity Technology: Wireless
Scanning Distance: 20"
Image Sensor: Imager
Barcode Symbology Supported:
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- UPC/EAN/JAN supplemental redundancy
- Coupon Report
- ISSN EAN
- Inverse 1D
- ISBT concatenations
- Matrix 2 of 5
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- UPC/EAN/JAN supplemental redundancy
- Coupon Report
- ISSN EAN
- Inverse 1D
- ISBT concatenations
- Matrix 2 of 5

General Information

Product Type: Handheld Barcode Scanner
Product Series: 7
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: CHS 7Di
Product Name: Bluetooth Cordless Hand Scanner (CHS) 7Di

Physical Characteristics

Height: 5.2"
Width: 1.5"
Depth: 1.8"
Color: Gray
Weight (Approximate): 3.20 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Bluetooth Cordless Hand Scanner (CHS) 7Di
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/belt Clip with Retractable Tether
- Software
- Bluetooth Cordless Hand Scanner (CHS) 7Di
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/belt Clip with Retractable Tether
- Software
Certifications & Standards:
- Electrical Safety / Environmental:<br />
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
- EMI / RFI:
- FCC Part 15 Class C
- RSS 210
- iCES 003
- C-Tick
- CISPR 22
- CE EN55022
- EN55024
- TELEC
- Laser / LED Safety:
- IEC 60825-1
- EN 60825-1
Platform Supported:
- PC
- Mac
- iOS
- Android
- Smartphone

Battery Information

Battery Size Supported: AAA
Number of Batteries Supported: 2
Battery Rechargeable: Yes
Maximum Number of Scans per Full Charge: 15000
Battery Chemistry: Nickel Metal Hydride (NiMH)

Warranty

Limited Warranty: 1 Year

Network & Communication

Bluetooth: Yes

Power Description

Power Source: Battery

Extended Details
