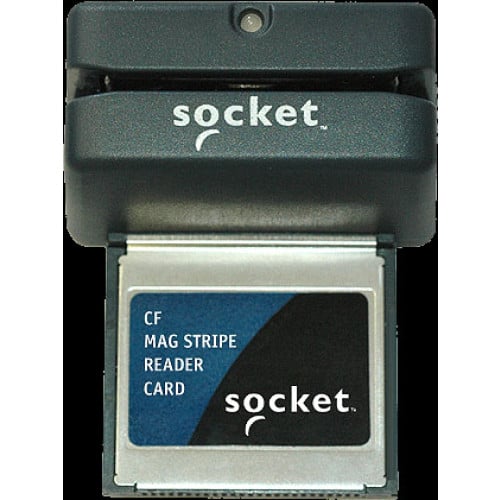

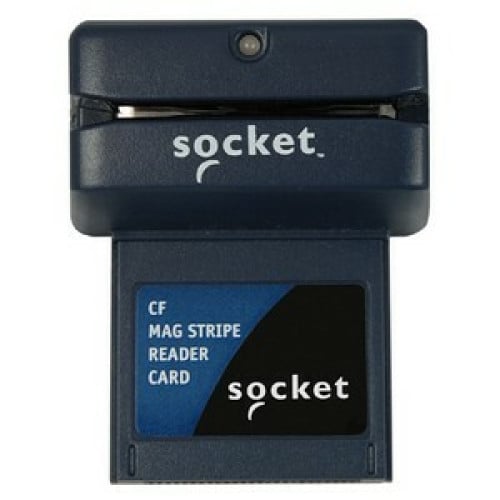

Socket Mobile CF Mag Stripe Reader 4E Check Reader
Part #: MS5105-1108 | SKU: SOC83249

Designed for use with any Windows Pocket PC, laptop or tablet with a PCMCIA or CF card slot, the CF Mag Stripe Reader 4E from Socket captures data from driver's licenses, IDs and credit cards to increase mobile worker productivity. Together with a wireless network, it can be used for online credit card authorizations. As a mobility-friendly product, the CF Mag Stripe Reader 4E is easy to use, reliable, and maximizes the battery life of the mobile device. No external batteries or power adapter are needed. 1, 2, & 3 Stripe.

Socket Mobile CF Mag Stripe Reader 4E Check Reader

Part Details: Socket SoMo 655 Mag Stripe Reader Plug-In 4E, Type II - Single Track - 50in/s

Additional Information

Manufacturer Socket Mobile
Model Name CF Mag Stripe Reader 4E

Technical Information

  • Magnetic Stripe Track Configuration: Single Track
  • Minimum Swipe Speed: 3 in/s
  • Maximum Swipe Speed: 50 in/s
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2
    • Track 3

General Information

  • Product Type: Magnetic Stripe Reader
  • Product Series: 4
  • Brand Name: Socket
  • Manufacturer: Socket Mobile, Inc
  • Product Name: CF Mag Stripe Reader Card 4E

Physical Characteristics

  • Height: 1.3"
  • Width: 2.2"
  • Length: 2.7"
  • Weight (Approximate): 1.52 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Socket CF Mag Stripe Reader Card with Flexible Rubber Collar
    • Restraining Bracket
    • Software and Documentation
    • Socket CF Mag Stripe Reader Card with Flexible Rubber Collar
    • Restraining Bracket
    • Software and Documentation
  • Certifications & Standards:
    • FCC: Part 15 Class B
    • CE: EN55024:1998
  • Additional Information:
    • Interface Standards: CompactFlash Type II
    • Operating System Support:
    • Windows Mobile 2003 for Pocket PC
    • Windows Mobile2003SE for Pocket PC
    • Windows Mobile 5.0 for Pocket PC
    • Windows Mobile 6.0/6.1 Classic (PDA)
    • Windows XP Professional/Tablet PC (SP1, SP2, SP3)
    • Windows Vista Business/Ultimate (SP1)

Environmental Conditions

  • Humidity: 10% to 90% Non-condensing Relative Humidity Operating
  • Temperature: 14°F (-10°C) to 140°F (60°C) Operating

Warranty

  • Limited Warranty: 1 Year
