Socket Mobile Serial I/O PC Spare Parts
Part #: SL0700-004 | SKU: SOC26874

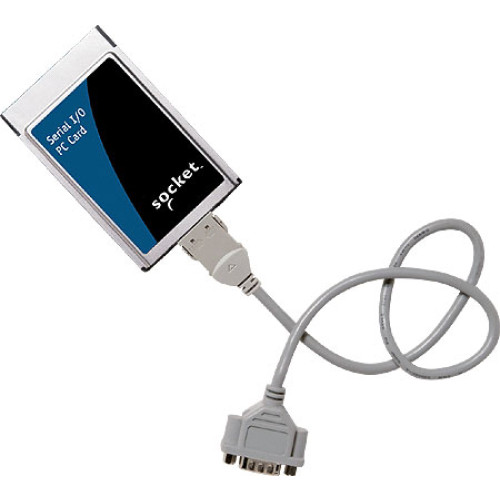

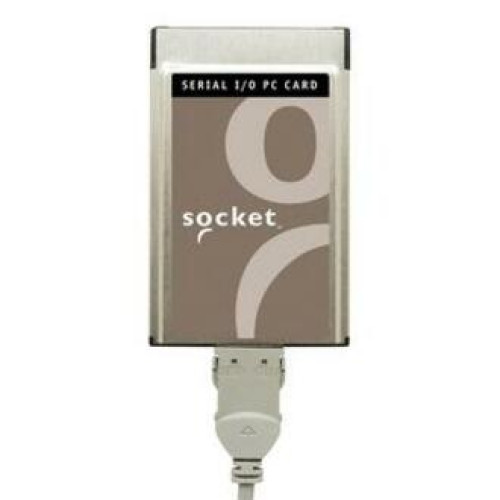

Socket's Serial I/O PC is an add-on serial adapter card, which easily adds an RS-232 port to your Windows- or Linux- based devices via PCMCIA (PC Card Type II) slot. It comes with Hi-Speed COM Tools and drivers, which enable users to re-map legacy baud rates to higher speeds, such as 230.4, 460.8, or 921.6 Kbps. The 16550-compatible UART provides internal data buffering to utilize full bandwidth of RS-232 peripherals. The unit also includes a 12 removable male DB-9 connector cable. Serial I/O PC features an exclusive battery-friendly design, which maximizes the battery life of your mobile device.

Socket Mobile Serial I/O PC Spare Parts

Part Details: Socket Serial I/O PC Card Serial Adapter - DISCONTINUED - 1 Pack - Plug-in Card - PC Card

Need a different version of the Socket Mobile Serial I/O PC Accessory? View all 1 configurations

Additional Information

Manufacturer AIDC	Socket Mobile
Model Name	Serial I/O PC
Type	No

Socket Mobile Serial I/O PC Specs (pdf)

Technical Information

Data Transfer Rate: 115.20 Kbps
Host Interface: PC Card
Baud Rate: Up to 921 Kbps
Platform Supported: PC
UART Type:
- 16550
- 16650
- 16750
- 16950

General Information

Product Type: Serial Adapter
Brand Name: QUATECH
Manufacturer: B&B Electronics Mfg. Co
Product Model: SL0700-004
Product Name: PC Serial I/O Card
Package Type: Retail
Packaged Quantity: 1

Physical Characteristics

Height: 0.2"
Width: 2.1"
Depth: 3.4"
Form Factor: Plug-in Card
Weight (Approximate): 2.08 oz

Interfaces/Ports

Ports: 1 x 9-pin DB-9 RS-232C Serial

Other

Certifications & Standards:
- FCC: Part 15, Class B,
- CE: EN55024: 1998, C-TICK s.182<br>
- Telecom Approval:<br> - FCC: Part 68, CTR 21
Compatibility:
- All notebooks, Handheld PCs and Pocket PCs with Type II or III slot
- External Modems
- Barcode Scanners
- Magnetic Stripe Readers
- GPS Receivers
- Court Reporting Stenograph Machines
- Other RS-232 Serial Devices
Additional Information:
- Warranty:
- Removable Cable: 90 days
- Card: Limited Lifetime
- Power Consumption:
- Standby: 5 mA
- Typical: 13 mA
- Operating System Support:
- Windows 950B
- Windows 98
- Windows 98SE
- Windows Me
- Windows 2000
- Windows XP
- Windows CE HPC Pro 2.11
- Windows CE HPC 2000
- Windows CE Pocket PC 2000
- Windows CE Pocket PC 2002
- Windows CE Pocket PC 2003
- Certification:
- FCC: Part 15, Class B
- CE: EN55024:1998
- C-TICK s.182

Warranty

Limited Warranty: Lifetime

Extended Details
