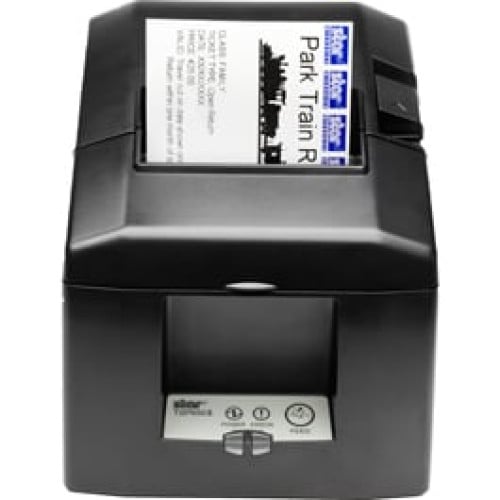

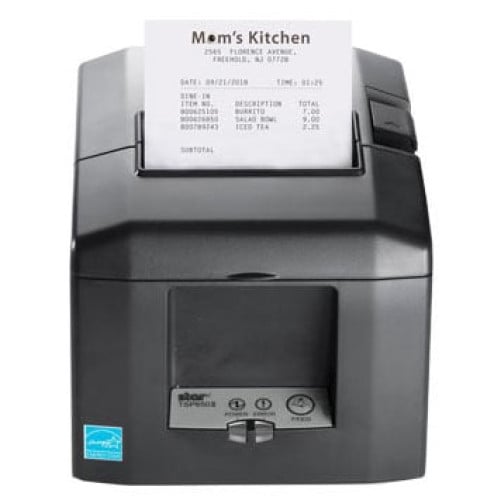

Star TSP654ii Receipt Printer Part # 39449670

iOS users will use the same familiar Airprint experience with their POS system. The printer will work seamlessly with all Apple devices enabling quick setup and simple, high quality receipt printing. This way receipt printing requires no extra configurations, software or additional drivers.

39449670 - Star TSP650 Series: TSP650ii POS Printer

Part Details: TSP650 Series: TSP650ii, MICRONICS, TSP654IIU-24 GRY US, THERMAL PRINTER, CUTTER, USB, GRAY, POWER SUPPLY INCLUDED, INTERFACE IS SWAPPABLE.

InStock

Need a different version of the Star TSP654ii Printer? View all 9 configurations

MSRP: $540.00 Price: $254.48

In Stock - Ships Free

Specs & Info

Additional Information

Application	Vend
Color	Dark Gray
Cutter Option	Auto-Cutter
Form Factor	Desktop
Interface	USB
Manufacturer	Star
Paper Dimension	3.15
Print Method	Thermal
Product Condition	New

Technical Information

Maximum Mono Print Speed: 11.81 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 3.15"
Recommended Use: Receipt Print
Features:
- Cutter
- Horizontal Printing
- Vertical Printing
Barcode Symbology Supported: PDF-417

General Information

Product Type: Direct Thermal Printer
Product Series: TSP650II
Brand Name: Star Micronics
Manufacturer: Star Micronics, Inc
Product Model: TSP654II
Product Name: TSP654II Receipt Printer

Physical Characteristics

Height: 5.2"
Width: 5.6"
Depth: 8"
Form Factor: Wall Mount
Weight (Approximate): 3.79 lb
Color: Gray

Interfaces/Ports

USB: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- ENERGY STAR
- RoHS
Platform Supported:
- Handheld
- PC
Package Contents:
- TSP654II Receipt Printer
- Installation CD (Printer Driver / Manuals)
- Wall Mount Bracket
- Vertical Mount Accessory
- 58mm Paper Guide
- Power Switch Cover
- Set Up Guide
- Start Up Paper Roll
- Power Supply
- TSP654II Receipt Printer
- Installation CD (Printer Driver / Manuals)
- Wall Mount Bracket
- Vertical Mount Accessory
- 58mm Paper Guide
- Power Switch Cover
- Set Up Guide
- Start Up Paper Roll
- Power Supply
Certifications & Standards:
- UL
- C-UL
- TüV
- FCC
- VCCI
- EN55022
- CE
- Gost

Media Types & Handling

Maximum Label Width: 3.15"
Media Type: Receipt
Media Thickness: 3.35 mil
Media Sensor:
- Out Of Paper Sensor
- Cover Open Sensor
Maximum Roll Diameter: 3.27"

Power Description

Input Voltage: 24 V DC
Power Source: Power Adapter

Fonts & Emulation

Language Emulation: ESC/POS

Warranty

Limited Warranty: 3 Year

Cutter

Cutting Method: Automatic

Memory

Flash Memory: 16 MB
