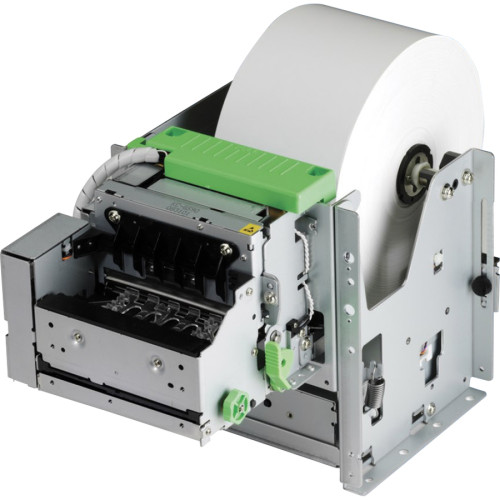

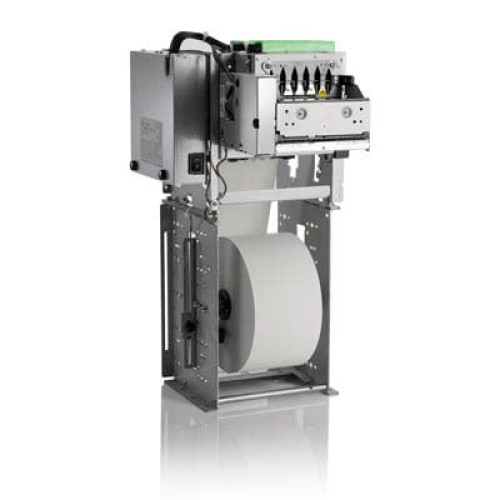

Star TUP500 Receipt Printer
Part #: 39470000 | SKU: STA143712

With a compact footprint and support for smaller paper widths, the TUP500 Series is a welcomed addition to Star's kiosk printer line to provide solutions to a great range of applications. The TTUP500 Series features an industry leading print speed of up to 220 mm/sec and a high reliability at an MCBF of 60 million lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The Presenter also uses Star" document capture technology to retract receipts left by the user, resulting in increased document security and a cleaner operation area. A brand new innovative bezel (snout) option can be directly attached to the presenter to capture the user"s attention with programmable 2-color (red & green) flashing LED lights. The TUP500 Series features adjustable paper widths of 45 mm to 82.5 mm documents. With the addition of the optional Large Paper Roll Accessory, it supports up to a 10" paper roll for many hours of unattended operation. The TUP500 Series kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.

Star TUP500 Receipt Printer

Part Details: Direct Line Thermal Kiosk Printer with Presenter, 203DPI, 220mm/second print speed, auto cutter, 2-color. Serial + Parallel + USB + Ethernet interface. Requires power supply (Part# 30781753). Does not include interface board. Compatible interface boards: Ethernet (Part# 39607800), Parallel (Part# 39607211), Serial (Part# 39607200), Serial 9 pin (Part# 39607300), USB (Part# 39607510). Also known as TUP592-24 THERMAL PRINTER.

Additional Information

Manufacturer AIDC Star
Model Name TUP500 Series

Technical Information

  • Maximum Mono Print Speed: 8.66 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 3.15"
  • Recommended Use: Receipt Print
  • Features: Auto-cutter
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • JAN
    • EAN-8
    • EAN-13
    • ITF
    • Code 39
    • Code 93
    • Code 128
    • Codabar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TUP500
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TUP592-24
  • Product Name: TUP500 TUP592-24 Receipt Printer

Physical Characteristics

  • Height: 7"
  • Width: 6.3"
  • Depth: 9.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 3.25"
  • Media Type: Receipt
  • Media Thickness: 5.91 mil
  • Media Sensor:
    • Out Of Paper Sensor
    • Paper Low Sensor
    • Reflective Media Sensor
  • Maximum Roll Diameter: 5.91"

Other

  • Platform Supported:
    • Mac
    • PC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 24 V DC

Fonts & Emulation

  • Language Emulation: ESC/POS
Extended Details

Recommended Accessories for Model: Star TUP500 Receipt Printer

  • Star 37421600 Accessory
    Part #: 37421600 | SKU: STA270128

    ROLL PAPER HOLDER TUP592, TUP9
    Price: $14.06
    In Stock
  • Star TSP654II Accessories Accessory
    Part #: 39607820 | SKU: STA256593

    Interface Board, Ifbd-Hu07, Usb Interface Board (Tsp650/Tsp700/Tsp800/Tup500/Tup900 Series), Replaces 39607510
    MSRP: $71.00 Price: $67.34
    In Stock
  • Star 39590301 Accessory
    Part #: 39590301 | SKU: STA310286

    TUP500, RHU-T500 L HOLDER, LARGE CAPACITY PAPER ROLL HOLDER (TUP500), REPLACES 39590300
    MSRP: $53.00 Price: $50.51
    In Stock
  • Star TUP500 Receipt Paper
    Part #: 37966511 | SKU: STA775859

    Receipt Paper - Star TUP500 - Paper - Thermal - Star Eco - TUP500: 80 mm Width - 950 ft Length - 150 mm Diameter - 25 mm Core - Fiber Core - 8 Rolls/Case
    MSRP: $186.00 Price: $177.78
    In Stock
  • Star 33914240 Accessory
    Part #: 33914240 | SKU: STA270100

    ROLL PAPER HOLDER S TUP 5, TUP9
    Price: $10.73

Recommended Receiptpapers for Model: Star TUP500 Receipt Printer

  • Star 37996690 Receipt Paper
    Part #: 37996690 | SKU: STA191221

    Receipt Paper, 3.15" x 6" outer diameter Thermal Receipt Paper, 0.09 MM, single roll. Also known as TRF-80-6MG.
  • Star 37996700 Receipt Paper
    Part #: 37996700 | SKU: STA38615

    80 mm, 3.15" x 6", Thermal Roll Paper, 8 rolls. Also available as a roll (Part# 37996700-R). Also known as TRF-80-6.
