Printer Method
|
Direct Line Thermal
|
|
Print Speed
|
37 Receipts Per Minute (180 mm/sec)
|
|

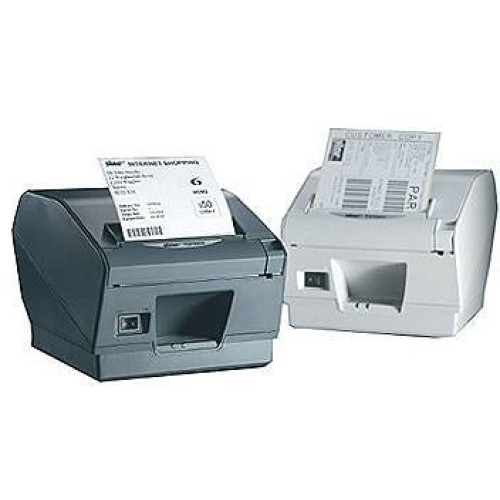

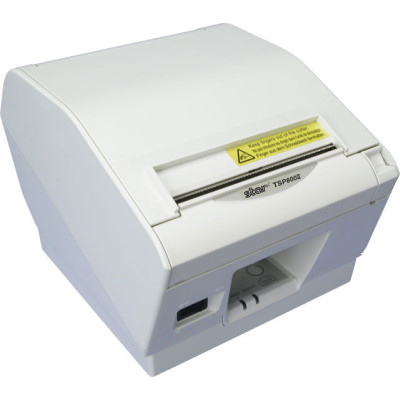

Printer Case Color
|
Putty or Gray
|
|
Model Available
|
TSP847 Includes Both Tear Bar and Auto Cutter
|
|
Print Resolution
(Vertical x Horizontal)
|
203 (8 dots per mm)
|
|
No. of Columns
|
104mm Max with A4 Reduction Facility
|
|
Font Size
|
12 x 24
|
|
Character Matrix
|
ANK, 12 x 24, IBM Graphic 12 x 32
|
|
Character Set
|
ANK 95, 32 Int 128 Graphic
|
|
Code Pages / Character Table
|
40 Code Pages, Katakana, IBM
|
|
Bar Codes
|
9 versions
|
|
Line Spacing
|
3 mm or 4 mm or programmable
|
|
Paper Specifications
Width
Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Black Mark Sensor
Paper Low Sensor
Maximum Print Width
|
112mm standard, Adjustable 82.5mm, 80mm, 58mm with Paper Guide
0.065 ~ 0.15 mm
Up to 100 mm
"Drop-In & Print"
Standard
Standard
Standard
104 mm Maximum
|
|
Top Margin
|
15 mm minimum default
|
|
External Paper Feed Support
|
Yes
|
|
Auto Cutter
|
Guillotine (Full or Partial Cut Selectable)
|
|
Cover Open Sensor
|
Yes
|
|
Flash ROM / SRAM
|
2 x 8 MBbit plus 2 x 1 Mbit Statis RAM
|
|
Multiple Copy Support
|
Supported through 2ndCopy Raster Driver
|
|
Journal Capability
|
N/A
|
|
Label Support
|
Yes; Black timing marks between labels required
|
|
Power Supply
|
External; Requires PS60A External Power Supply
|
|
Drivers Available
|
Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server
2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB
Vendor Class, Linux, Mac OS X, StarIO SDK with support for iOS,
Android and Blackberry and Scalable Raster Driver
|
|
Digitally Signed (WHQL)
|
N/A
|
|
Swappable Interfaces
|
Yes
|
|
Connectivity
|
Serial, Parallel, USB, Ethernet, (Wireless LAN on special order,
call STAR)
|
|
Emulation Modes
|
Star Mode, ESC/POS
|
|
Peripheral Drive Circuit
|
2 circuits, (24V max. 1A), 1 Compulsion input
|
|
Power Consumption
|
Average 1.8 Amp. Printing, 0.1 Amp. Standby
Requires PS60A External Power Supply
|
|
Operating Conditions
|
Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)
|
|
Storage Conditions
|
Temperature: -20C to 60C
Humidity: 10% - 90% RH
|
|
Dimensions
Weight
|
180 x 148 x 213 (w x h x d)mm
1.7 kg
|
|
Safety Standards
|
UL, C-UL, TA¬V, CB, FCC, VCCI, EN55022, CE
|
|
Reliability MCBF
Auto Cutter
|
37 Million Lines
2 Million Cuts
|
|
Included with Printer
|
User Manual, Start Up Paper Roll, Ferrite Core
|
|
Warranty
|
3 Year Limited Manufacturer Warranty (US and Canada)
|
|
Options
|
External Power Supply (PS60A)
Kitchen Buzzer (BU01-24-A)
Vertical Stand (VS-T800)
Wall Mount Bracket (WB-T800)
Paper Guide (DIVIDER T800)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
|
|
HARDWARE FEATURES AND BENEFITS - TSP800II
|
|
High Speed
|
Can print 37 six inch receipts per minute (180 mm/sec)
|
|
High Reliability
|
MCBF: 37 Million Lines
Guillotine Auto Cutter: 2 Million Cuts
|
|
Small Foot Print
|
Save precious counter space
|
|
Wide Area Printing
|
Replace large, bulky desktop printers with the compact TSP800II.
Shrink any A4 document and print it on a 112 mm wide receipt
|
|
"Drop In & Print" Paper Loading
|
Clamshell design allows for very fast and easy paper loading
|
|
Swappable Interface Connections
|
Future interface upgrades are fast and simple to do. With
swappable interfaces, there's no need to purchase a new printer
just to upgrade the connection
|
|
Horizontal or Vertical Orientation
|
Use the printer in the orientation that suits you best
|
|
Rear Feed Slot
|
Use a larger paper roll mounted behind the printer by feeding it
externally through the rear feed slot
|
|
Wall Mountable
|
Need more counter space? Create more room by mounting the
printer to the wall
|
|
SOFTWARE FEATURES AND BENEFITS - TSP800II
|
|
Simple-to-Use Utilities
|
Available for download from website, free, easy to use
|
|
Zoom Raster Driver
|
Shrink A4 documents to print on 112 mm wide paper. Expand 80 mm
receipts or documents to a larger, easier-to-read 112 mm
|
|
Automatic Second Copy Raster Driver
|
Automatically print a second copy of documents through the
Raster Driver
|
|
Logo Utility
|
Store logos and other graphics for professional receipt
branding
|
|
Memory Switch Utility
|
Fine-tune your print outs or print in different languages by
enabling, changing, or disabling certain settings
|
|
Ethernet Interface Set Up Utility
|
Setting up and configuring an ethernet printer has never been
more quick and easy!
|
|
OPTIONS AND ENHANCEMENTS - TSP800II
|
|
WiFi Power Pack
The Wifi Power Pack is designed to make any Star LAN interface
printer "wireless". Powered by the printer's cash drawer kick port,
the WiFi Power pack avoids additional power outlet, eliminating the
possibility of tangled cables. The WiFi Power Pack includes a
DK-USB power module and a TP Link wireless router.
Part Number: 99250000
|
|
|
External Power Supply
PS60A
The PS60A is a compact power supply that can be set beside or
behind the printer or easily hidden away underneath a counter.
Part Number: 30781870
|
|
|
Wall Mount Bracket
WB-T800
Save counter space by mounting the TSP800II on the wall using the
Wall Mount Bracket. It installs easily on to the back of the
printer.
Part Number: 39590110
|
|
|
Vertical Stand
VS-T800
To save counter space, mount the TSP800II vertically using the
Vertical Stand.
Part Number: 39590500
|
|
|
Kitchen Buzzer / Ticket Alarm
BU01-24-A
The Kitchen Buzzer is designed to connect directly to the RJ11 port
on the back of the printer. When a print job is sent to the
TSP800II, the buzzer will sound off. This is beneficial for high
noise environments like kitchens to alert cooks that orders have
been sent to them.
Part Number: 39594000
|
|
|
Swappable Interfaces
Easily upgrade the connection type in the future without purchasing
a new printer.
Interfaces Available:
RS232C Serial - IFBD-HD03
Part Number: 39607200
Parallel - IFBD-HC03
Part Number: 39607211
USB - IFBD-HU05
Part Number: 39607510
Ethernet - IFBD-HE07
Part Number: 39607800
|
|
|
Paper Guide
DIVIDER T800
Install the Paper Guide to use smaller width receipt paper. The
TSP800II Paper Guide enables users to adjust the width to print on
82.5mm, 80mm, or 58mm wide paper.
|
|
|
Mobile Power Supply
The Mobile Power Supply allows users to put the TSP800II into
vehicle applications like printing law enforcement tickets, truck
tickets, and more. It converts 12VDC into the required 24VDC to
power the printer.
|
|
|
Extend-A-Star Extended Warranty
The Extend-A-Star Extended Warranty Program provides full
bumper-to-bumper coverage available for a selectable span of 3 or 4
years.
|
|
|
Swap-A-Star Extended Warranty
The Swap-A-Star Extended Warranty Program provides next business
day replacement coverage available for a selectable span of 3 or 4
years.
|
|
Part Number
|
Model
|
Description
|
39443800
|
TSP847IID-24
|
Thermal, Friction, Cutter/Tear Bar, Serial, Putty, Ext PS (not
included)
|
39443810
|
TSP847IID-24GRY
|
Thermal, Friction, Cutter/Tear Bar, Serial, Grey, Ext PS (not
included)
|
39443700
|
TSP847IIC-24
|
Thermal, Friction, Cutter/Tear Bar, Parallel, Putty, Ext PS
(not included)
|
39443710
|
TSP847IIC-24GRY
|
Thermal, Friction, Cutter/Tear Bar, Parallel, Grey, Ext PS (not
included)
|
39443900
|
TSP847IIU-24
|
Thermal, Friction, Cutter/Tear Bar, USB, Putty, Ext PS (not
included)
|
39443910
|
TSP847IIU-24GRY
|
Thermal, Friction, Cutter/Tear Bar, USB, Grey, Ext PS (not
included)
|
37962120
|
TSP847IIL-24
|
Thermal, Friction, Cutter/Tear Bar, Ethernet (LAN), Putty, Ext
PS (not included)
|
37962130
|
TSP847IIL-24GRY
|
Thermal, Friction, Cutter/Tear Bar, Ethernet (LAN), Grey, Ext
PS (not included)
|
|
TSP847 Wifi
|
Wifi printer available on special order (call STAR)
|
|
TSP847 Wifi
|
Wifi printer available on special order (call STAR)
|
37962280
|
TSP847CII-24 GRY RX-US
|
Thermal, Friction, Cutter/Tear Bar, Parallel, Grey, Ext PS
Included, Paper Lock
|
37962290
|
TSP847DII-24 GRY RX-US
|
Thermal, Friction, Cutter/Tear Bar, Serial, Grey, Ext PS
Included, Paper Lock
|
39444530
|
TSP847IIE2-24 GRY RX-US
|
Thermal, Friction, Cutter/Tear Bar, Ethernet (LAN), Grey, Ext
PS Included, Paper Lock
|
|
TSP847UII WIFI GRY RX-US
|
Wireless LAN printer available on special order (call STAR)
|
|
TSP847WII WIFI GRY RX-US
|
Wireless LAN available on special order (call STAR)
|
|
