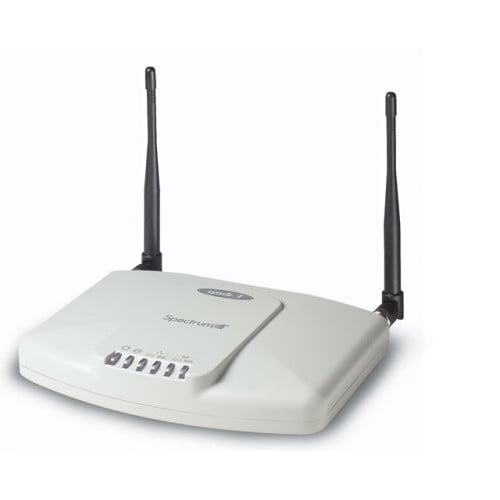

AP 3021Ethernet Access Point
IEEE 802.11 Seamless, Wireless Connection Between Wired
Ethernet LANs and Mobile Clients
Symbol's Spectrum24AP 3021Ethernet Access Points strategically
placed in your facility create a seamless, wireless extension of
your network, providing mobile workers with immediate access to
mission-critical information and enabling real-time communications
throughout the enterprise. Designed for high levels of speed, theAP
3021provides a fast 2 Mbps network link with any number of devices
equipped with Spectrum24 Wireless LAN PC adapter, radio or ISA
cards.
TheAP 3021is designed to IEEE 802.11 standards for wireless
local area networks (WLAN) and is based on frequency hopping spread
spectrum (FHSS) technology for secure, reliable data and voice
communications at ranges of up to 2,000 ft./606 m. Each access
point supports up to 256 clients. Advanced mobile IP features allow
Spectrum24 clients to roam freely about the facility while
remaining connected to any standards-based LAN system.
Other features of the award-winningAP 3021include:
- Enhanced, built-in diagnostics
- MAC layer bridge based on the IEEE 802.11 to Ethernet
standard
- Powerful data encryption and decryption based on the IEEE
802.11 Wired Equivalent Privacy standard
- UTP fiber and COAX connectivity options
- Simple Network Management Protocol
- Mobile IP support
- Wireless bridge support
Maximum Connectivity to Support Mobile Workers
TheAP 3021boosts productivity and communications by providing
real-time network access to PC-compatible laptop and desktop
computers, hand-held computers, Symbol's portable terminals with
integrated scanners and voice-over-IP NetVision® Phone
and Data Phone network appliances.
Wherever associates are located, from sales floors to
manufacturing areas, theAP 3021provides fast access to information
and to each other. And when your coverage and range needs grow,
your Spectrum24 Wireless LAN can be expanded simply by adding more
access points.
Easy Administration and Network Management
TheAP 3021is administered using a number of bundled management
tools for quick install, maintenance, and upgrade. In addition, you
can manage your entire WLAN installation using Symbol's
SpectrumSoft™ suite of tools, including software for
monitoring and controlling network activity and performance.
SpectrumSoft offers Web-based tools for fast application
development, and supports three-tier client /server architecture
for Internet- and intranet-based thin-client connection to your
servers and host systems. TheAP 3021supports full backward
compatibility to existing Spectrum24 IEEE 802.11 products such as
the AP 2410, LA 24XX, and EB 24XX series.
Extending Information Wirelessly
With more than 70,000 wireless LAN sites installed, Symbol's
global wireless industry leadership is founded on a comprehensive
range of innovative technologies and knowledgeable services.
Spectrum24 brings you a unique combination of benefits that enable
your organization's end-to-end mobile computing strategy and
optimizes the capture, computing and communication of data crucial
to business decision-making and success.
AP 3021Ethernet Access Point Features and Benefits
| Frequency Hopping Spread Spectrum (FHSS) transmission up to 2
Mbps |
Robust, reliable radio frequency transmission technology |
| Operation within the ISM 2.4 to 2.5 GHz Band |
Worldwide acceptance is ideal for multinational users |
| Automatic data rate selection of 1 or 2 Mbps |
Optimized range and throughput |
| Support for Mobile IP |
Seamless roaming between network segments |
| Software upgrade via FLASH memory |
Fast and easy access point maintenance and upgrades |
| Network management, configuration, and diagnostic tools |
Straightforward administration of your wireless network |
| SNMP compliant |
Allows integration with popular enterprise network management
systems such as Tivoli, CA Unicenter TNG, and HP Openview |
| Wired Equivalent Privacy (WEP) encryption and decryption |
Powerful data security at 64 bits |
| Standards: Commitment to open standards at every hardware and
software interface including IEEE 802.11, HTML user interface, ITU
H.323 voice-over-IP, NIC utilities |
-Bridges communication paths between wired and
wireless network segments
-Uses diverse application tools in the same wireless LAN
environment
-Supports technology that's already installed; integrates
seamlessly with existing systems
-Ensures interoperability with wireless LAN devices from other
vendors
-Protects your investment by ensuring migration path
-Enables converged voice and data on one wireless LAN |
| Scalable |
Adding an access point expands coverage and capacity to meet
your needs |
| Computing devices with Wireless PC Card |
A complete line of Symbol-designed-and-manufactured
Spectrum24-compatible terminals to meet your application needs |
| Complete SymbolCareSM Service and Support |
Count on Symbol to help you specify, configure, install, and
support your wireless LAN |
|
Spectrum24 Wireless LAN Specifications
| Frequency Range: |
Worldwide product covering 2.4 to 2.5 GHz, programmable for
different country regulations |
| Frequency Hopping: |
Number of hops: 79 in U.S. and Europe
(35 in France and 27 in Spain); 23 in Japan; programmable to meet
regulations of all other countries. Hopping rate: 100 hops/sec.
Hopping sequences: 66 |
| Data Rate: |
2 Mbps per channel with Dynamic Rate Scaling to 1 Mbps for
extended range |
| Output Power: |
500 mW and 100 mW versions available |
| Power Management: |
Power Consumption: Continuous Aware Mode
Sleep Mode: 3 mA
Receive: 500 mW = 375 mA, 100 mW = 375 mA both @ 5 V
Transmit: 500 mW = 500-675 mA, 100 mW = 450-600 mA
both @ 5 V |
| Range: |
Up to 2,000 ft./606 m in open environments;
up to 250 ft./75.5 m in typical office or retail space |
| TX Maximum Radiated EIRP: |
FCC regulations part 15.247 in U.S.; ETS 300 328 in Europe; RCR
STD-33 in Japan |
| Modulation: |
Binary GFSK, and 4GFSK for 2 Mbps |
| TX Out-of-Band Emissions: |
FCC regulations part 15.247, 15.205, 15.209 in U.S.; ETS 300
328 in Europe; RCR STD-33 in Japan |
| Operating Temperature: |
32° to 130° F/0° to 55° C |
| Storage Temperature: |
-5° to 140° F/-20° to 60° C |
|
| Driver Software Support: |
Microsoft Windows 95/98, Windows NT 4.0, 3.51, Windows CE 2.0,
2.11, Windows 2000; ODI Version 1.6, future enhancements to version
4.0; NDIS version 2.01, future enhancement to version 3.0 |
| Access Protocol: |
CSMA/CA |
| Roaming: |
2 Mbps per channel with Dynamic Rate Scaling to 1 Mbps for
extended range; virtually instantaneous |
|
