Value, Style and Performance

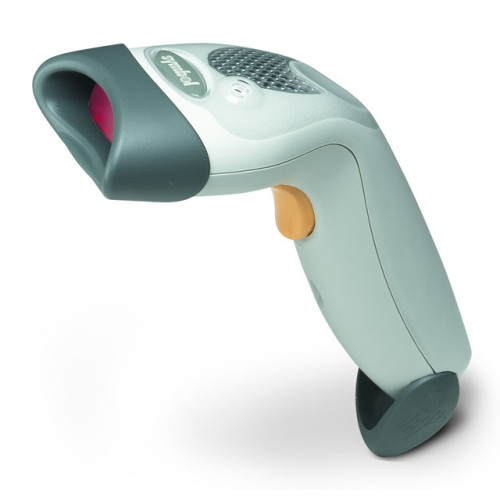

The LS 1902 Cobra of scanners from Symbol Technologies is
designed to fit your hand and your budget. Its sleek, lightweight,
ergonomic design is perfectly balanced to minimize operator strain
while maximizing comfort. The LS 1902 Cobra is a premium scanner at
an entry-level price with features you'd only expect to find on
high-end solutions. A hands-free stand delivers the flexibility to
operate as a presentation scanner for both triggered and
triggerless configurations. Backed by Symbol´s five-year plus
warranty, the LS 1902 Cobra offers the scanning quality and
versatility that users have relied on for over 25 years.
Enhance User Productivity Across Multiple Scanning
Applications
The LS 1902 Cobra offers a large, bright two-color LED plus a
beeper with adjustable volume for audible confirmation of good
decodes. Its highly visible scan line provides simple aiming, while
the curved rubber nose makes it easy to orient the scan beam– even
when scanning on contact. This ensures valid decodes the first
time, every time. The result: fast, accurate data capture and the
elimination of keyboard entry errors.
The LS 1902 Cobra offers a complete scanning and connectivity
feature set making it the scanner of choice for a wide range of bar
code data applications in grocery and specialty stores, video
rental establishments, music stores and more. Beyond the checkout
counter, the versatile LS 1902 Cobra is also a reliable solution
for applications such as document tracking, tool crib management,
time and attendance tasks, light industrial applications, and even
lottery ticket scanning.
Maximize Your Investment for the Long Term
The decoded versions have multiple on-board interfaces plus
universal cabling to provide flexible connectivity to future-proof
your hardware investment. Advanced Data Formatting (ADF)
capabilities allow scanned data to be modified prior to transfer
ensuring compatibility with the application on the host system. The
LS 1902 Cobra uses flash memory to facilitate post-purchase
upgrades, change default settings or customize the device for
singular applications. It even ships ready to read Reduced Space
Symbology (RSS), an emerging symbology for smaller products where
space is at a premium.
Backed by Symbol's five-year warranty, the LS 1902 Cobra will
meet your bar code data capture needs well into the future. To find
out how your company's workforce can increase productivity using
the LS 1902 Cobra , visit us at www.symbol.com/cobra
Product Configurations
The LS 1902 Cobra from Symbol Technologies is available in a
number of configurations to enable you to match desired features to
your specific application requirements:
- LS 1902 Cobra: Undecoded, triggered scanner
- LS 1902T/LS 1908T: Decoded, triggered scanner
- LS 1902C/LS 1908C: Decoded, triggerless scanner
LS 1902 Cobra Features
|
LS 1902 Cobra Benefits
|
Triggered and triggerless (continuous on) configurations
|
Select the best configuration to maximize ease of use for your
applications
|
Ergonomic design
|
Sleek, balanced form factor reduces user discomfort while
scanning
|
Large 2-color LED and beeper with adjustable volume
|
Multiple modes of confirmation ensure positive feedback to the
user
|
Decoded versions offer multiple interfaces on-board
|
Flexible connectivity allowing for host "future proofing"
|
Advanced Data Formatting (ADF)
|
Enables users to format data before it is sent to the host
computer eliminating costly modifications to the host software
|
Flash memory
|
Facilitates updates/customization of product in the field
|
Reads Reduced Space Symbology (RSS)
|
Compatible with this emerging symbology to leverage your
hardware investment
|
Mylar® scan element
|
Unsurpassed scanning performance without friction or wear;
covered by a lifetime warranty
|
Hands-free stand
|
Enables automatic presentation scanning
|
Universal cables
|
Shares cabling with other Symbol scanners for easy replacement
and/or upgrades
|
Supports 123Scan scanner setup utility
|
Flexible setup using PC utility download, or by scanning a
sequence of bar codes
|
|
Cobra™ LS 1900 Series Specification
Highlights
LS 1902 Cobra Physical Characteristics:
|
|
Dimensions:
|
5.3 in. H x 2.5 in. W x 2.2 in. D/13.4 cm H x 6.4 cm W x 5.7 cm
D
|
Weight (without cable):
|
LS 1900T: 4.0 oz./115 gm LS 1908T: 4.0 oz./115 gm LS 1908C; LS
1902C: 4.2 oz./120 gm
|
Voltage & Current:
|
LS 1900T: 4.8-14 VDC @ 80 mA nominal LS 1908T: 5 VDC @ 90 mA
nomina LS 1908C; LS 1902C: 4.5 - 5.5 VDC @ 140 mA nominal
|
Power Source:
|
LS 1900T; LS 1908T: Power supplied by interface controller LS
1908C; LS 1902C: Power supplied by host or power supply
|
Color:
|
Cash Register White (shown) or Twilight Black
|
|
LS 1902 Cobra Performance Characteristics:
|
|
Scanner Type:
|
Bi-directional retrocollective
|
Light Source:
|
650± nm visible laser diode
|
Scan Rate:
|
Approximately 44 scans per second (bi-directional)
|
Nominal Working Distance:
|
See Decode Zone
|
Minimum Element Width:
|
5 mil (0.127 mm)
|
Print Contrast Minimum:
|
25% minimum reflectance differential measured at 650 nm
|
Skew Angle:
|
±60° from normal
|
Pitch:
|
±65° from normal
|
Decode Capability:
|
Decoded scanners: UPC/EAN/JAN, UPC/EAN with supplementals, Code
128, Code 39, Code 39 Full ASCII, Code 93, MSI, Interleaved 2 of 5,
Discrete 2 of 5, UCC/EAN 128, Codabar, Code 11, Coupon Code,
Bookland EAN, RSS variants
|
Interfaces Supported:
|
LS 1908T, LS 1908C: RS-232, Keyboard Wedge, USB, IBM 468X/469X,
Wand Emulation and Synapse LS 1902T, LS 1902C: RS-232, Keyboard
Wedge, Wand Emulation and Synapse
|
|
LS 1902 Cobra User Environment
|
|
Operating Temperature:
|
32° to 104° F (0° to 40° C)
|
Storage Temperature:
|
-40° to 140° F (-40° to 60° C)
|
Humidity:
|
5% to 95% noncondensing
|
Drop Specifications:
|
Withstands multiple 5-ft./1.5-m drops to concrete
|
Ambient Light Immunity:
|
Light Indoor: 450 ft.-candles (4,842 LUX) Outdoor: 8,000
ft.-candles (86,112 LUX)
|
|
LS 1902 Cobra Regulatory:
|
|
Electrical Safety:
|
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
EMI/RFI:
|
FCC Part 15 Class B, ICES-003 Class B, European Union EMC
Directive, Australian SMA
|
Laser Safety:
|
CDRH Class II, IEC Class 2
|
|
Desktop/Counter Stand:
|
20-52659-01
|
Battery Box:
|
20-10615-01
|
|
The Symbol LS 1902 Cobra is warranted against defects in
workmanship and materials for a period of 60 months from date of
shipment, provided that the product remains unmodified and is
operated under normal and proper conditions. The Mylar®
scan element is covered by Symbol's limited lifetime warranty. The
Mylar scan element consists of a Mylar strip, frame, mirror
assembly and magnet. See the complete warranty for details.
|
|
LS 190XC Triggered Code Decode Zone
|
LS 190XT Triggered Code Decode Zone
|
|
LS 1902 Cobra 5-Year Plus Warranty
Symbol Technologies is a global leader in scanning solutions by
providing the best scanning products for all your different needs.
Being a leader in the industry, Symbol has added the 5-Year Plus
Warranty to the LS 1902 Cobra . The 5-Year Plus program will
warrant the products against manufacturer's defects and includes an
unprecedented limited lifetime warranty on the Mylar scan element.
When purchasing a Symbol scanner, you are purchasing the best value
and service in the market.
- For Warranty & Service Information within the North America,
Call: 1-800-653-5350
- For Warranty & Service Information outside North America,
contact your local Symbol Technologies representative
Symbol Technologies, Inc. manufactures its hardware products in
accordance with industry standard practices. Symbol warrants the LS
1902 Cobra for a period of sixty months (5 years) from date of
shipment, products will be free from defects in materials and
workmanship.
This warranty is provided to the original owner only and is not
transferable to any third party. It shall not apply to any product
(i) which has been repaired or altered unless done or approved by
Symbol Technologies. (ii) which has not been maintained in
accordance with any operating or handling instructions supplied by
Symbol Technologies, (iii) which has been subjected to unusual
physical or electrical stress, misuse, abuse, power shortage,
negligence or accident or (iv) which has been used other than in
accordance with the product operating and handling instructions.
Preventative maintenance is the responsibility of customer and is
not covered under this warranty.
The Mylar Scan Element has a limited lifetime warranty. It
consists of a Mylar Strip, frame, mirror assembly and magnet.
