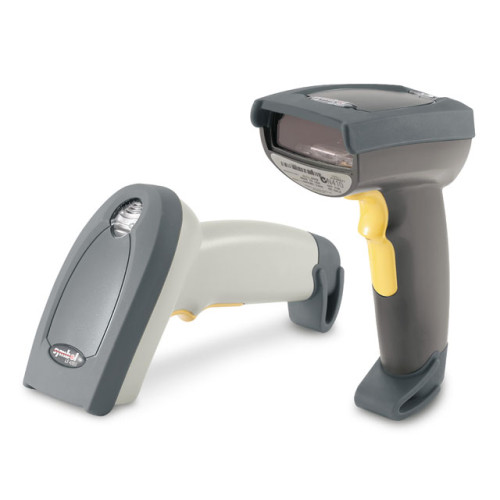

Versatile, High-Performance Handheld Scanner
Value, Innovation and Performance
Based on the highly successful LS 4000 Series platform from
Symbol Technologies, the LS 4008i showcases our experience in the
design of innovative, high performance scanning solutions. The LS
4008i combines superior bar code scanning performance and flexible
host connectivity with maximum user comfort at a highly attractive
price—backed by Symbol's 5 Year Plus warranty.
The LS 4008i scan line is visible even in bright light, so
aiming is simple. A wide working range—from contact out to more
than 19 in./48 cm on 100% UPC symbols—makes the LS 4008i ideal for
a wide variety of applications. Adaptive Logic Signal Processing
decodes even poorly printed or damaged bar codes so there is no
impact on productivity or throughput. And it even ships ready to
read emerging Reduced Space Symbology (RSS) and Composite Codes—so
your hardware investment is "futureproofed".
Flexible Host Connectivity
The LS 4008i ensures connectivity to virtually any host with
universal cabling and multiple onboard interfaces, including USB,
RS-232C, IBM468X/9X, Keyboard Wedge, Wand and Synapse. Advanced
Data Formatting (ADF) capabilities allow scanned data to be
modified prior to transfer, ensuring compatibility with the
application on the host system.
Ergonomic Design
Symbol knows that ergonomics are just as important as scanner
performance—so the rugged LS 4008i is packed with features designed
to enhance operability. The LS 4008i is lightweight to maximize
user comfort, with a handle optimized to fit comfortably into hands
of all sizes. The patented two-finger trigger reduces finger
fatigue—even over extended periods of use. A hands-free
Intellistand enables the convenience of presentation scanning for
increased throughput. LS 4008i scanners feature a large, bright
two-color LED plus a beeper with adjustable volume for audible
confirmation of good decodes. An over molded rubber "chin" and
"foot" achieve dual functionality of absorbing shock and raising
the scanner off the counter for easy pickup and placement.
The Mark of a Top Performer—Application Versatility
The LS 4008i offers a complete scanning and on-board
connectivity set, making it the perfect scanner for a wide variety
of retail and commercial applications—from small neighborhood
businesses to major retailers and corporations. LS 4008i scanners
can be used anywhere where efficiency needs to be improved through
the use of bar code data capture. In retail environments, the LS
4008i is ideal for applications such as point-of-sale scanning,
price markdowns and verifications, and in-store inventory
management for warehouse clubs, mass merchandisers, and department,
grocery, and specialty stores. In warehouse and manufacturing
environments, the LS 4008i improves productivity and accuracy in
shipping and receiving by streamlining inventory management,
assembly lines and document tracking processes. And the healthcare
industry benefits from more efficient tracking of patient
information, management of medical inventory, and more.
For More Information
To find out more about how your company can benefit from
Symbol's scanners, contact us at any of our offices, or visit us at
www.symbol.com/bar code.
|
LS 4008i Features
|
LS 4008i Benefits
|
|
|
Reads RSS and Composite Codes
|
Compatibility with emerging symbologies "futureproofs" your
hardware investment
|
|
Multiple interfaces on-board
|
Ensures flexible connectivity to virtually any host
|
|
Lightweight, sleek ergonomic design
|
Maximizes user comfort and productivity
|
|
Universal Cables
|
Shares cabling with other Symbol scanners for easy replacement
and/or upgrades
|
|
Adaptive Logic Electronics
|
Improves productivity by ensuring good decode on both damaged
and poorly printed symbols
|
|
Supports 123Scan scanner setup utility
|
Flexible set up via PC download, or by scanning a sequence of
bar codes
|
|
Advanced Data Formatting (ADF)
|
Ability to modify scanned data prior to sending to host
eliminates costly host software modifications
|
|
Flash Memory
|
Facilitates custom settings and future upgrades
|
|
Mylar® scan element
|
Unsurpassed scanning performance without friction or wear,
covered by a lifetime guarantee
|
|
LS 4008i Specification Highlights
|
LS 4008i Physical Characteristics
|
|
|
Dimensions:
|
6.3 in. H x 5 in. L x 2.8 in. W 16 cm H x 12.7 cm L x 7.1 cm
W
|
|
Weight:
|
Approximately 6 oz. /170 gm
|
|
Voltage & Current:
|
4.5 – 5.5 VDC @ 180 – 200 mA (nominal 5V) USB: Low Power Mode
<500 uA (nominal 5V)
|
|
Color:
|
Cash Register White or Twilight Black
|
|
|
LS 4008i Performance Characteristics
|
|
|
Light Source:
|
650 nm laser diode
|
|
Scan Rate:
|
100 scans per second bi-directional
|
|
Roll:
|
+/- 25º
|
|
Pitch:
|
+/- 55º
|
|
Yaw:
|
+/- 55º
|
|
Nominal Working Distance:
|
13 mil (100% UPC/EAN): 0 to 19 in. (48 cm) Refer to the Decode
Zone charts
|
|
Print Contrast:
|
1D: 25% minimum reflectance 2D (PDF): 35% minimum reflectance
differential
|
|
Decode Capability:
|
1D: UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII,
Tri-optic Code 39, Code 93, Codabar, Interleaved 2 of 5, Code 128,
UCC/EAN 128, Discrete 2 of 5, MSI, Bookland EAN, Code 11, and RSS
variants 2D: PDF417, UCC/EAN Composite Codes, Micro PDF
|
|
Interfaces Supported:
|
LS 4008i features on-board Multiple Interface ASIC with: RS-232C
(Standard, Nixdorf, ICL, & Fujitsu); IBM 468x/469x; Keyboard Wedge;
USB (Standard, IBM SurePOS, Macintosh); Laser/Wand Emulation. In
addition, Synapse Adaptive Connectivity allows for connectivity to
all of the above plus many non-standard interfaces.
|
|
|
Operating Temperature:
|
32º to 104º F / 0º to 40º C
|
|
Storage Temperature:
|
-40º to 140º F / -40º to 60º C
|
|
Humidity:
|
5% to 95%, noncondensing
|
|
Drop Specifications:
|
Withstands multiple 5 ft./1.5 m drops to concrete
|
|
Ambient Light Immunity:
|
Immune to normal artificial indoor and natural outdoor (direct
sunlight) lighting conditions
|
|
EAS Support:
|
Optional Checkpoint Electronic Article Surveillance EAS
|
|
|
Electrical Safety:
|
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
|
Laser Safety:
|
CDRH Class II, IEC Class 2
|
|
EMI/RFI:
|
FCC Part 15 Class B, ICES-003 Class B, European Union EMC
Directive, Australian SMA
|
|
|
Mounting Options (Accessories):
|
Intellistand with adjustable height: 5–10 in. 12.7–25.4 cm and
adjustable angle: 0º–90º
|
|
|
The LS 4008i Series is warranted against defects in workmanship
and materials for a period of 60 months from date of shipment,
provided that the product remains unmodified and is operated under
normal and proper conditions. The Mylar® scan element is covered by
Symbol's limited lifetime warranty. The Mylar scan element consists
of a Mylar strip, frame, mirror assembly and magnet. See the
complete warranty for details.
|
|
|
LS 4008i 1-D Bar code Decode Zone
|
LS 4008i 2-D Bar code Decode Zone
|
|
Symbol LS 4008i Specs
