- 320 x 320 resolution color/ mono display (with backlight) - 30 percent higher resolution than - VGA allows easy viewing in many environments for increased accuracy
- Adjustable scan head with left, right and front positions - User can adjust the scanning positions for maximum comfort and productivity
- Device management with Mobility Services Platform (MSP) - Enables real-time monitoring of critical mobile computer and wireless infrastructure parameters
- Intel XScale PXA270 processor and Microsoft Windows CE operating system - Delivers high-speed CPU performance through familiar interfaces with wide software application support
- IP54-rated sealing - Protects against water and dust for reliable performance in rough environmental conditions
- Keyboard options include 28, 38 and 48 keys - Provides multiple data-entry modes for maximum efficiency
- Light, ergonomic design - Reduces user fatigue for higher productivity in scan-intensive applications
- Rugged design - Designed to withstand multiple 4-foot drops (1.2m) to concrete and up to 500 tumbles
Capture, Move and Manage Data in Real Time for Real Business
Value

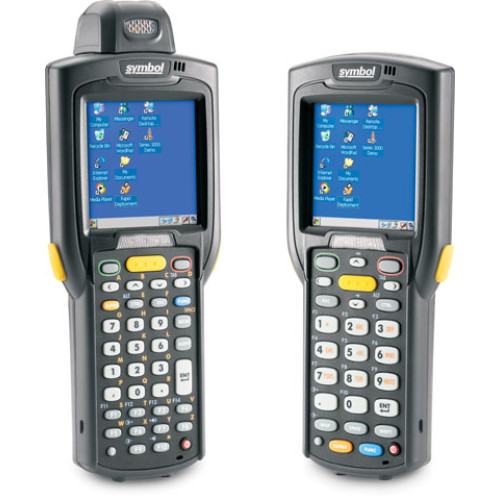

The MC3000 from Symbol Technologies is a lightweight, rugged
mobile computer ideal for scan-intensive environments that require
high-quality data capture throughout the enterprise. Its superior
ergonomic design and flexible configurations facilitate faster
decision making and increased workforce satisfaction inside the
retail store, on the loading dock or on a delivery route.
Unprecedented Flexibility, Performance and Power
A variety of feature options, including one-dimensional (1D)
laser and 2D image scanning, color or monochrome display, batch or
wireless communications, and three different keypad options, allows
you to meet your customer, employee and IT needs. And, for added
comfort and productivity, the laser scanner configuration is
equipped with a rotating scan turret with left, right and front
positions.
Reliable Performance in Variable Conditions
The MC3000's rugged design and IP54-rated sealing ensures
continued use and uptime by protecting against dust, moisture and
extreme temperatures. And, whether working inside or out, the
MC3000 has a drop spec of four feet to concrete across vast
temperature ranges, reducing equipment and maintenance
costs.
Unlock the Value of Your Information with Microsoft Windows
CE
Bringing the next generation of mobile computing to your
business, Symbol's MC3000 is built on the Windows® CE operating
system. With real-time processing, faster performance, rich
multimedia and Web browsing capabilities, your enterprise can
become truly mobile with interoperability between personal
computers, servers, Web services and devices.
For more information about the MC3000, please contact us at
+1.800.722.6234 or 1.631.738.2400.
Light, ergonomic design
|
Reduces user fatigue for higher productivity in scan-intensive
applications
|
Adjustable rotating scan turret with left, right and front
positions
|
User can adjust the scanning positions for maximum comfort and
productivity
|
320 x 320 resolution color/ mono display (with backlight)
|
30% higher resolution than 1Ú4 VGA allows easy viewing in many
environments for increased accuracy
|
Wireless 802.11b/g LAN connectivity
|
Provides real-time data exchange for maximum productivity
|
Rugged design
|
Designed to withstand multiple 4-foot drops (1.2m) to concrete
and up to 500 tumbles
|
IP54-rated sealing
|
Protects against water and dust for reliable performance in
rough environmental conditions
|
Intel XScale PXA270 processor and Microsoft Windows CE operating
system
|
Delivers high-speed CPU performance through familiar interfaces
with wide software application support
|
Keyboard options include 28, 38 and 48 keys
|
Provides multiple data-entry modes for maximum efficiency
|
Device management with Mobility Services Platform (MSP)
|
Enables real-time monitoring of critical mobile computer and
wireless infrastructure parameters
|
|
MC3000 Specification Highlights
Dimensions
|
Imager Configuration:
7.43 in L x 3.18 in W x 1.76 in D (188 mm x 80.8 mm x 44.7 mm)
At grip: 2.40 in W x 1.43 in D (61 mm x 36.3 mm)
Laser Configuration:
8.33 in L x 3.18 in W x 1.57 in D (211.6 mm x 80.8 mm x 39.9
mm)
At grip: 2.40 in W x 1.10 in D (61 mm x 27.9 mm)
|
Weight
|
Laser Configuration: 13.4 oz (379 gm) ( with WLAN)
Imager Configuration: 15.1 oz (428 gm) (with WLAN
|
Keyboard
|
28, 38 and 48 key
Terminal emulation (5250, 3270, VT)
|
|
Performance Characteristics
|
|
Display Resolution
|
320 x 320
|
Operating System
|
Monochrome Display Configuration: Microsoft Windows CE4.2 Core
Version
Color Display Configuration: Microsoft Windows CE4.2 Professional
Version
|
Application Development
|
Symbol SDK
|
Environment
|
Microsoft Windows CE SDK
|
Processor
|
Monochrome Display Configuration: IntelXScale PXA270 @312MHz
Color Display Configuration: IntelXScale PXA270 @520MHz
|
Memory FLASH/RAM (MB)
|
Monochrome Display Configuration: 64/32
Color Display Configuration: 64/64
|
Data Capture
|
Monochrome Display Configuration: 1D Laser
Color Display Configuration: 1D Laser, 2D CCD Imager
|
Secure Digital Slot
|
User accessible (located under battery) - approved for memory
expansion only
|
Communications
|
RS-232, USB (Host and Client)
|
Power
|
Laser Configuration: 2,600 mAh @ 3.7Vdc
Imager Configuration: 4,400 mAh @ 3.7Vdc
|
|
Operating Temperature
|
Monochrome: -4o to 122 o F (-20 o to 50 o C)
Color: 14 o to 122 o F (-10 o to 50 o C)
|
Storage Temperature
|
-22 o to 160 o F (-30 o to 70 o C)
|
Humidity
|
5% to 95% non-condensing
|
Drop
|
Multiple 4-foot (1.2 m) drops to concrete across operating
temperature
|
Tumble
|
500 one-half meter tumbles at room temperature (1,000 drops)
|
Environmental Sealing
|
IP54 Category 2
|
ESD
|
+/-15kVDC air discharge
+/-8kVDC direct discharge
+/-8kVDC indirect discharge
|
|
Wireless Data Communications
|
|
WLAN
|
Symbol Spectrum24, 802.11b, 802.11g
|
Output Power
|
100 mW U.S. and international
|
Data Rate
|
802.11b: 11 MB per second
802.11g: 54 MB per second
|
Antenna
|
Internal
|
Frequency Range
|
Country-dependent; typically 2.4 to 2.5 GHz
|
|
Peripherals and Accessories
|
|
Cradles
|
Single-slot USB/RS-232 charging cradle with spare battery
well
Four-slot Ethernet charging cradle
Four-slot Charge-only cradle
|
Chargers
|
Four-slot battery charger
Adaptor for universal battery charger
|
Printers
|
Support Symbol approved printers
|
Other Accessories
|
Holsters, charging cables
|
|
Electrical Safety
|
Certified to UL60950, CSA C22.2 No. 60950, EN60950/IEC 950
|
EMI/RFI Radio Versions
|
North America: FCC Part 2 (SAR), FCC Part 15, RSS210 Class B, EN
301 489-1, 489-17
|
EMI/RFI Batch Versions
|
EU: EN55022 Class B EN55024
Japan: CISPR 22, Class B
Australia: AS3548
North America: FCC Part 15, ICES 003 Class B
|
Laser Safety
|
IEC Class 2/FDA Class II in accordance with
IEC60825-1/EN60825-1
|
|
