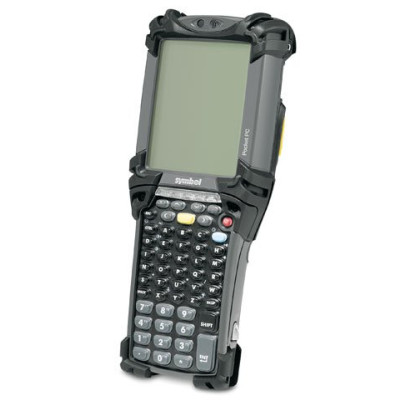

Symbol MC9000-K Mobile Computer

Symbol MC9000-K Mobile Computer

Symbol MC9000-K Mobile Computer

The rugged Symbol MC9000-K is a highly configurable mobile computer for delivering real-time visibility into the supply chain. With a wireless WAN-enabled configuration, three keypad options and a choice of color or monochrome display, the MC9000-K delivers maximum flexibility in creating task-specific devices that help employees perform tasks faster and make more informed decisions. Ideal for your field, delivery, operations, warehouse or factory environments, the MC9000-K has a rugged design combined with superior processing performance, giving you the ability to deliver the right information to the right people at the time they need it.
Discontinued - Need Assistance
See all options
Symbol MC9000-K Specs Symbol MC9000-K Specs (pdf)

Physical and Environmental Characteristics

Dimensions:

9.2 in L x 3.6 in. W x 1.7 in. H
23.4 cm L x 9.1 cm H x 4.3 cm H

Weight:

22-25 oz., configuration-dependent

Keyboard:

28-, 43- and 53-key

Display:

Embedded CE models: 3.8 in. 1/4 VGA Mono or Color

Windows Mobile models:

3.8 in. 1/4 VGA Mono or Color

Power:

Removable, rechargeable 7.2 volt Lithium ion 2200 mAh, 15.8 watt hours

Performance Characteristics

CPU:

XScale PXA255 processor at 400 MHz

Operating System:

Microsoft Windows Embedded CE. NET or Windows Mobile 2003 with Pocket PC Phone Edition

Memory (RAM/ROM):

Embedded CE: 32/32 MB
Windows Mobile: 64/64 MB or 128/64 MB

Application Development:

SDK available through Symbol Developer Zone Web site

Data Capture Options:

1D laser scan engine
1D and 2D imaging engine omnidirectionally reads symbologies and captures grayscale images and signatures with intuitive laser aiming

User Environment

Operating Temperature:

Monochrome: -4 F° to 122° F (-20° C to 50° C)
Color: -4 F° to 122° F (-20° C to 50° C)

Storage Temperature:

-25° F to 160° F (-40° C to 70° C)

Humidity:

5% to 95% non condensing

Drop Spec:

Multiple drops to concrete: 6 ft. (1.8 m): -20° C to 50° C

Tumble:

2,000 one-meter tumbles at room temperature (4,000 drops)

Environmental Sealing:

IP64 (electronic enclosure, display and keypad)

ESD:

+/-15kVdc air discharge
+/-8kVdc direct discharge
+/-8kVdc indirect discharge

Wireless Data Communications

WLAN:

Symbol Spectrum24, 802.11b, 802.11

Output Power:

100 mW U.S. and international

Data Rate:

802.11b: 11 MB per second DS
802.11: 2 MB per second FH

Antenna:

Internal

Frequency Range:

Country-dependent; typically 2.4 to 2.5 GHz

PAN (Bluetooth Support):

Optional

WWAN:

GSM / GPRS and CDMA (1XRTT), Peripherals and Accessories

Cradles:

Single-slot serial/USB, vehicle, 4-slot Ethernet, 4-slot charge only

Printers:

Supports extensive line of Symbol-approved printers and cables

Charger:

Universal battery charger, 4-slot battery charger

Other Accessories:

Cable adapter module; snap-on magnetic stripe reader; modem module; holster; full set of cables; and user accessible SD card slot

Regulatory

Electrical Safety:

Certified to UL60950, CSA C22.2 No. 60950, EN60950/IEC 950

EMI/RFI Radio Versions:

North America: FCC Part 2 (SAR), FCC Part 15, RSS210 Class B, EN 301 489-1, 489-17

EMI/RFI Batch Versions:

EU: EN55022 Class B EN55024
Japan: CISPR 22, Class B
Australia: AS3548
North America: FCC Part 15, ICES 003 Class B

Laser Safety:

IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. GPRS (5)
  2. Bluetooth (4)
  3. CDMA (1)
Style
  1. Full-size (11)
Operating System
  1. Windows Mobile (11)
  2. Windows Mobile 2003 (11)
Scanner Type
  1. Imager (6)
  2. Laser (5)
RAM Memory
  1. 64 MB (9)
  2. 128 MB (2)
Display Resolution
  1. 240 x 320 (11)
  1. Symbol MC9000-K Mobile Computer

    Symbol MC9000-K Mobile Computer
    Part #: MC9003-KHEHBEEA400 | SKU: SYM15173

    MC9000-K, 64MB RAM, Wireless Terminal, 53 key, Color Display, with Standard Range Scanner, Windows Mobile 2003 operating system. Order cradle, cable, & power supply separately. See accessories.
