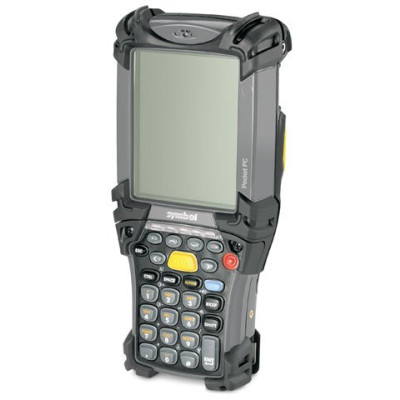

Symbol MC9000-S Mobile Computer

The MC9000-S delivers an unsurpassed choice of scanning and imaging technologies. Choose from an integrated high-performance laser bar code scan engine or a feature-rich, powerful imager, depending on application requirements. The MC9000-S features an innovative mechanical design that withstands multiple 6-foot drops to concrete. Its IP64 sealing rating makes it virtually impervious to dust and moisture in environments where intensive bar code scanning takes place. Multimode wireless communication offers real-time access to data anytime, anywhere.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Symbol MC9000-S Specs (pdf)

Physical and Environmental Characteristics

Dimensions:	7.6 in L x 3.6 in. W x 1.7 in. H 19.3 cm L x 9.1 cm H x 4.3 cm H
Weight:	20-23 oz., configuration-dependent
Keyboard:	28-key
Display:	Embedded CE models: 3.8 in. 1/4 VGA Mono or Color
Windows Mobile models:	3.8 in. 1/4 VGA Mono or Color
Power:	Removable, rechargeable 7.2 volt Lithium ion 1550 mAh, 11.1 watt hours

Performance Characteristics

CPU:	XScale PXA255 processor at 400 MHz
Operating System:	Microsoft Windows Embedded CE. NET or Windows Mobile 2003 with Pocket PC Phone Edition
Memory (RAM/ROM):	Embedded CE: 32/32 MB
Windows Mobile:	64/64 MB or 128/64 MB
Application Development:	SDK available through Symbol Developer Zone Web site
Data Capture Options:	1D laser scan engine 1D and 2D imaging engine omnidirectionally reads symbologies and captures grayscale images and signatures with intuitive laser aiming

User Environment

Operating Temperature:	Monochrome: -4 F° to 122° F (-20° C to 50° C) Color: -4 F° to 122° F (-20° C to 50° C)
Storage Temperature:	-25° F to 160° F (-40° C to 70° C)
Humidity:	5% to 95% non condensing
Drop Spec:	Multiple drops to concrete: 6 ft. (1.8 m): -20° C to 50° C
Tumble:	2,000 one-meter tumbles at room temperature (4,000 drops)
Environmental Sealing:	IP64 (electronic enclosure, display and keypad)
ESD:	+/-15kVdc air discharge +/-8kVdc direct discharge +/-8kVdc indirect discharge

Wireless Data Communications

WLAN:	Symbol Spectrum24, 802.11b, 802.11
Output Power:	100 mW U.S. and international
Data Rate:	802.11b: 11 MB per second DS 802.11: 2 MB per second FH
Antenna:	Internal
Frequency Range:	Country-dependent; typically 2.4 to 2.5 GHz
PAN (Bluetooth Support):	Optional
WWAN:	GSM / GPRS and CDMA (1XRTT)

Peripherals and Accessories

Cradles:	Single-slot serial/USB, vehicle, 4-slot Ethernet, 4-slot charge only
Printers:	Supports extensive line of Symbol-approved printers and cables
Charger:	Universal battery charger, 4-slot battery charger
Other Accessories:	Cable adapter module; snap-on magnetic stripe reader; modem module; holster; full set of cables; and user accessible SD card slot

Regulatory

Electrical Safety:	Certified to UL60950, CSA C22.2 No. 60950, EN60950/IEC 950
EMI/RFI Radio Versions:	North America: FCC Part 2 (SAR), FCC Part 15, RSS210 Class B, EN 301 489-1, 489-17
EMI/RFI Batch Versions:	EU: EN55022 Class B EN55024 Japan: CISPR 22, Class B Australia: AS3548 North America: FCC Part 15, ICES 003 Class B
Laser Safety:	IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Extended Details

Refine Your Options

Shop By

Interface Options

Style

Full-size (12)

Operating System

Scanner Type

RAM Memory

Display Resolution

240 x 320 (12)

Symbol MC9000-S Mobile Computer
Part #: MC9063-SHEH9AEA7WW | SKU: SYM21643

MC9000-S, Windows Mobile 2003 128 MB RAM Wireless Bluetooth 28 key Numeric keypad Color Display XScale PXA255 processor at 400 MHz Code Division Multiple Access Sprint, Laser Standard Range Scanner Includes: MC9063-K Mobile Computer, Battery, Stylus, Hand Strap, Regulatory Guide, Quick Start Guide. Cradles, Power supply and Communication Cables not included. See accessories.
Symbol MC9000-S Mobile Computer
Part #: MC9063-SHFHBAEA7WW | SKU: SYM26413

MC9000-S, 64MB RAM, 802.11b Embedded T3, CDMA, 1D scanner, Color, 28 key Keypad, Pocket PC, Audio-Bluetooth
