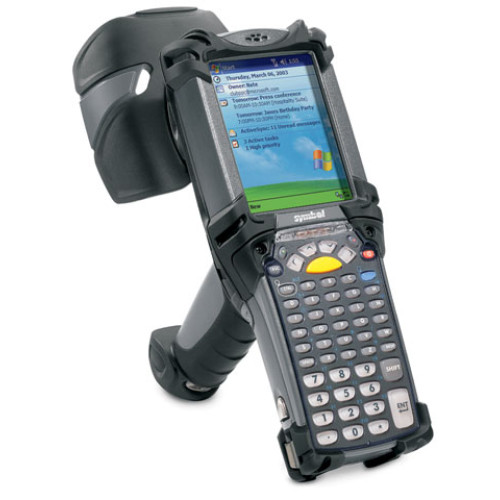

The MC9060-G RFID from Symbol Technologies is a ruggedized
mobile computer that features integrated support for the most
popular radio frequency identification standard - EPC™, the
Electronic Product Code. By integrating support for either EPC
Class 1 or Class 0 RFID reading and programming with a robust
commercial mobile computer, the MC9060-G RFID is able to offer an
unparalleled level of functionality suitable for a broad range of
RFID applications. Combining RFID, bar code reading, imaging,
802.11 connectivity, a full 1/4 VGA screen and alphanumeric keypad,
the MC9060-G RFID with RFID has the flexibility to give your
organization real-time access to mission-critical information from
key points in your supply chain. Enterprise-wide management and
control of the MC9060-G RFID is easy with Symbol's Mobility
Services Platform (MSP).
Many of the world's largest retailers, manufacturers and
logistics organizations are integrating RFID as part of their
supply chain processes, and RFID is rapidly emerging as a key
technology across a wide range of markets and applications. With a
feature set that delivers superior data collection, communication
and collaboration, the MC9060-G RFID with RFID facilitates faster
decision-making and increased productivity in a variety of
environments - from the factory to the warehouse to the sales
floor.
Mobile Solutions Add Value to RFID
Traditional supply chain applications of RFID rely on automatic
reading of tagged items using fixed readers installed at dock
doors, mechanized conveyors, depalletization stations and other
"choke" points in the movement of goods. However, when integrated
with a mobile solution, RFID technology expands and improves the
general functionality and performance of your entire mobile
application.
|
Features
|
Benefits
|
|
Available in EPC Class 1 read/write or EPC Class 0 read/write
models
|
Allows easy integration of RFID as part of your supply chain
processes
|
|
Extremely rugged design withstands multiple 6 ft./1.8 m drops to
concrete; 2,000 3.3 ft./1 m tumbles (4,000 hits)
|
Ensures less down time due to accidental drops
|
|
Dual mode: integrated bar code scanning and RFID
|
Maximum flexibility for enterprise applications
|
|
IP64 sealing rating (electronic enclosure)
|
Protects against water and dust to ensure reliable performance
in rough conditions
|
|
Microsoft Windows CE .NET (Class 1 model only), Windows Mobile
2003 operating system (both models)
|
Gives versatility through familiar interfaces with wide software
application support
|
|
Intel XScale™ PXA255 processor at 400 MHz
|
Delivers high-speed CPU performance for robust enterprise
applications, including multimedia
|
|
3.8" large, bright, color display with backlit keypad
|
Allows easy viewing in many environments, such as ambient
light
|
|
Wireless LAN communications
|
Enables real-time data exchange for maximum productivity
|
|
Forward scanning, pistol grip ergonomics
|
Reduces user fatigue in scan-intensive applications
|
|
Directional antenna (70-degree forward-looking)
|
Enables you to isolate the RFID tags you are interested in
|
|
API (Application Programming Interface) for Microsoft Windows CE
.NET (Class 1 model only), Windows Mobile 2003 (both models)
|
Use familiar tools to build RFID enabled applications
|
|
MC9060-G RFID with RFID: Market, Applications and Users
|
Market
|
Applications
|
User
|
|
Manufacturing
|
Inventory management
Supply-line replenishment
|
Assembly-line personnel
Shipping/receiving personnel
|
|
Retail
|
Warehouse management
Price audits/changes
Store receiving
Inventory management
|
Sales associates
Receiving-dock personnel
Stock-room personnel
Supervisors
|
|
Wholesale
|
Warehouse management
Receiving/Putaway/Shipping
|
Warehouse personnel
|
|
Distribution
|
Returns processing
|
Loading-dock personnel
|
|
Third-party logistics
|
Warehouse management
|
Warehouse personnel
|
|
Pharmaceutical
|
Enhanced Traceability
|
Compliance personnel
|
|
Aviation
|
Parts Tracking
Baggage
|
Maintenance personnel
Baggage handling personnel
|
|
Defense
|
Logistics/Supply
|
Service personnel
|
|
How Do Mobile Solutions Add Value to RFID Technology?
|
Challenge
|
Mobile Solution Value
|
|
Exception Processing
|
Allows misreads and other problem shipments to be investigated
away from the dock without impeding flow
|
|
Remote Location Support
|
Provides a means of utilizing RFID information for receiving -
even in the middle of a desert
|
|
Quick Start
|
No installation and low total solution cost allows a "quick
start" with RFID
|
|
In Site Processing
|
Goods stored away from fixed readers - e.g. in storage racks -
can still be processed using RFID tag information
|
|
Mixed Bar code and RFID
|
Lets workers switch quickly between RFID-tagged items and items
marked with a bar code
|
|
MC9060-G RFID with RFID Specification Highlights
|
Physical and Environmental Characteristics
|
|
|
Dimensions:
|
10.75 in. L x 4.7 in. W x 7.7 in. H
27.3 cm L x 11.9 cm W x 19.5 cm H
|
|
Weight:
|
35.4 oz./1 kg (includes battery, scanner and radio)
|
|
Keyboard:
|
53-key
|
|
Display:
|
Embedded CE models (Class 1 only): 3.8 in. 1/4 VGA Mono
Windows Mobile models (Class 1 and Class 0): 3.8 in. 1/4 VGA Mono
or Color
|
|
Power:
|
Removable, rechargeable 7.4 volt 2200 mAh Li Ion battery pack
(2200mAh, 7.4V)
|
|
|
Performance Characteristics
|
|
|
CPU:
|
XScale PXA255 processor at 400 MHz
|
|
Operating System:
|
XScale PXA255 processor at 400 MHzMicrosoft Windows Embedded CE.
NET (Class 1 model only) or Windows Mobile 2003 (Both Class 0 and
Class 1 models)
|
|
Memory:
|
64/64MB
|
|
Application Development:
|
SDK available through Symbol Developer Zone Web site
|
|
Bar code Options:
|
Class 1 model: 1D scan engine, omnidirectional 1D and 2D imaging
engine
Class 0 model: Omnidirectional 1D and 2D imaging engine
|
|
|
Operating Temperature:
|
Monochrome/Color: -4° to 122° F/-20° to 50°C
|
|
Storage Temperature:
|
-25° to 160° F/-40° to 70° C
|
|
Humidity:
|
5% to 95% non condensing
|
|
Drop Spec:
|
Multiple drops to concrete:
6 ft/1.8 m: 14° C to 122° F/-10° C to 50° C
5 ft/1.5 m: -13° C to 14° F/-25° C to -10° C
|
|
Tumble:
|
2,000 3.3 ft./1 m tumbles at room temperature (4,000 hits)
|
|
Environmental Sealing:
|
IP64 (electronic enclosure)
|
|
ESD:
|
+/-15kVdc air discharge
+/-8kVdc direct discharge
+/-8kVdc indirect discharge
|
|
|
Standards supported:
|
EPC Class 1 read/write model or EPC Class 0 read/write model
|
|
Nominal read range*:
|
0.2 ft. to 10 ft./6.09 cm to 304.8 cm
|
|
Nominal write range*:
|
1 ft. to 2 ft./30.5 cm to 60.9 cm
|
|
Field:
|
70-degree cone (approx.) measured from nose of device
|
|
Antenna:
|
External, linearly polarized
|
|
Frequency Range:
|
902-928 MHz
|
|
Output Power:
|
1W (4W EIRP)
|
|
|
Wireless Data Communications
|
|
|
WLAN:
|
802.11b
|
|
Output Power:
|
100 mW
|
|
Data Rate:
|
802.11b: 11 MB per second
|
|
Antenna:
|
Internal
|
|
Frequency Range:
|
Country-dependent; typically 2.4 to 2.5 GHz
|
|
|
Peripherals and Accessories
|
|
|
Cradles:
|
Single-slot and 4-slot cradles available
|
|
Printers:
|
Supports extensive line of Symbol-approved printers, cables and
accessories
|
|
Charger:
|
4-Slot universal battery charger
|
|
Other Accessories:
|
Cable adapter module; snap-on magnetic stripe reader and modem;
holster
|
|
|
General:
|
Suitable for sale in the United States and Canada only
|
|
Electrical Safety:
|
Certified to UL60950, CSA C22.2 No. 60950
|
|
EMI/RFI Radio Versions:
|
North America: FCC Part 2 (SAR), FCC Part 15
RSS210 Class B (Class 1 model only)
|
|
Laser Safety:
|
IEC Class2/FDA Class II in accordance with
IEC60825-1/EN60825-1
|
|
|
*Actual read/write range is dependent upon a number of factors,
including the specific tag used, nature of the items tagged, and
presence or absence of radio interference.
|
|
