State-of-the-art Technology for Reading Damaged or Poorly
Printed Bar codes

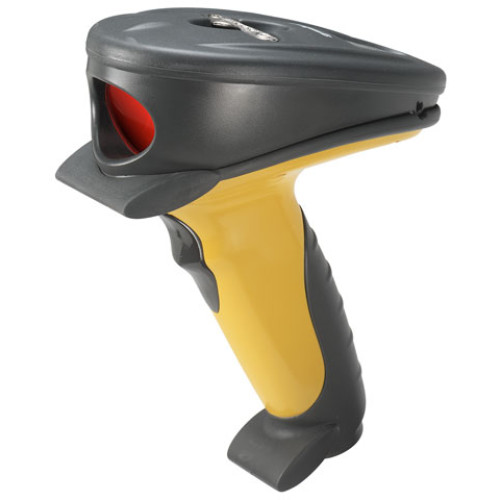

Symbol introduces the P302 FZY decoded industrial handheld
scanner with enhanced second-generation fuzzy logic. In addition to
great performance on high-quality 1-D bar codes, it offers an
unsurpassed ability to quickly and accurately read damaged, dirty
and poorly printed bar codes that are commonly found in rugged
industrial environments.
Designed for Extreme Environments (XE)
The P302 FZY meets the most stringent industrial standards,
earning the Symbol XE class label. It is sealed to the IP54
specification against windblown dust and rain, and withstands
multiple 6-ft./1.8 m drops to concrete over the entire temperature
range of -22° to 122°F/-30° to 50°C.
Its XE class ruggedness and high-throughput scanning ability
make the P302 FZY an ideal choice for a wide range of 1-D
applications in industrial environments such as distribution
centers, manufacturing floors and warehouses.
Innovative Design Features
As innovative as it is rugged, the P302 FZY delivers the
sophisticated ergonomic and operational features industrial
applications demand. The scanner's exit window is scratch-resistant
and recessed to prevent damage from direct contact. A twist-to-lock
cable seals the scanner and provides superior strain relief. For
those applications requiring quick access and out-of-the-way
storage, the P302 FZY comes with a built-in metal hook for
attachment to a pulley. And the large, LED-enhancing window and
extra loud 75 dB twin beepers make the "good decode" feedback
impossible to miss. The P302 FZY also utilizes the award-winning
Phaser "handle-forward" design making the scanner extremely
comfortable to hold and reduces fatigue when scanning throughout a
full shift in scan-intensive applications.
High-Productivity Scanning
Building on Symbol's experience and leadership in the industrial
handheld scanner market, the P302 FZY offers numerous hardware and
software improvements that deliver better performance and more
durability than ever. The enhanced digital fuzzy logic processing
resides on the single Integrated Multibit Processor ASIC with a
digital signal processor. This results in a noticeable improvement
in decode speed, increased working range, and the ability to read
bar codes that are damaged or poorly printed. The high-visibility
650 nm laser makes it faster and easier to aim the scanner and read
bar codes in sunlight and bright ambient light. These improvements
combine to provide reliable high-throughput scanning, maximizing
user productivity.
Easy System Integration
The P302 FZY has four on-board interfaces for quick and
inexpensive direct connectivity to the widest variety of host
systems. These interfaces include RS-232, keyboard wedge, Wand
interfaces and all popular host terminals through the use of
Symbol's Synapse "smart" cables, including those using USB ports.
Synapse "smart" cables provide the flexibility to connect to many
different host types and eliminate the need for separate
scanner-to-host controllers. In addition, the P302 FZY has built-in
Advanced Data Formatting (ADF), giving you the ability to modify
the bar code data string before sending it to the host. This
feature virtually eliminates formatting-driven application
modifications, making the introduction of the P302 FZY into a
pre-existing application almost effortless.
To find out how your company can benefit from Symbol's scanners,
contact us at any of our offices, or visit us at www.symbol.com/bar
code.
|
P302 FZY Features
|
P302 FZY Benefits
|
|
|
XE-class durability
|
Withstands multiple 6-ft./1.8 m drops to concrete
|
|
Fuzzy logic technology
|
Unsurpassed reading of poorly printed, dirty or damaged bar
codes
|
|
Sealed to IP54 standard
|
Protected from windblown dust and rain
|
|
650 nm laser
|
Easy to see laser beam
|
|
Flash memory
|
Easy software upgrades in the field
|
|
Advanced Data Formatting
|
Seamless integration into existing host applications
|
|
P302 FZY Specification Highlights
|
P302 FZY Physical Characteristics
|
|
|
Dimensions:
|
6.8 in. H x 5.9 in. L x 2.9 in. D/173 mm H x 150 mm L x 74 mm
D
|
|
Weight:
|
11 oz./312 gm (without cable)
|
|
Power Requirements:
|
Beeper On 300 mA Laser On 190 mA Standby 90
mA continuous mode; 50 mA low power mode
|
|
Memory:
|
8KB SRAM/128KB Flash
|
|
Power Supply:
|
Input voltage from 4.75 V to 14V
|
|
|
P302 FZY Performance Characteristics
|
|
|
Interface Type:
|
Integrated RS-232, Wand and Keyboard supported by Synapse Smart
Cables (USB, OCIA, Dual RS-232, etc.)
|
|
Scan Element Type:
|
Retro-collective
|
|
Light Source:
|
650 nm laser diode/1.2 mW max
|
|
Scan Rate:
|
35 scans per second
|
|
Minimum Reflectance
|
Difference:25% measured at 650 nm
|
|
Program Loading:
|
Parameters set by bar code menus Flash memory for software
upgrades
|
|
Decode Capabilities:
|
UPC-A, UPC-E, EAN 8, EAN 13, Code 39, Tri-Optic Code 39, Code
93, Discrete 2 of 5, Bookland EAN, UPC Coupon Code, Code 39 Full
ASCII, Code 128, Interleaved 2 of 5, Codabar, UCC.EAN 128 with full
autodiscrimination between all symbologies, MSI Plessey, UPC E1
|
|
|
P302 FZY User Environment
|
|
|
Operating Temperature:
|
-22° to 122°F/-30° to 50°C
|
|
Storage Temperature:
|
-40° to 158°F/-40° to 70°C
|
|
Humidity:
|
5% to 95% (non-condensing)
|
|
Shock:
|
Withstands multiple 6-ft./1.8 m drops to concrete
|
|
Ambient Light Immunity:
|
Sunlight: 10,000 ft.-candles Incandescent, Fluorescent, Sodium
Vapor, and Mercury Light: 450 ft.-candles, 4,845 LUX. Immune to
direct exposure from normal office and factory level lighting
|
|
Environmental Sealing:
|
IP54 (Industry standard for dust and water sealing)
|
|
Agency Approvals:
|
CDRH Class II, IEC 825 Class II, FCC Class A, UL, CSA, VDE
|
|
|
Electrical Safety:
|
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
|
Laser Safety:
|
CDRH Class II, IEC Class 2
|
|
EMI/RFI:
|
FCC Part 15 Class B, IECES-003 Class B, European Union EMC
Directive
|
|
