with Image Capture
Rugged Imager with Multiple Capabilities

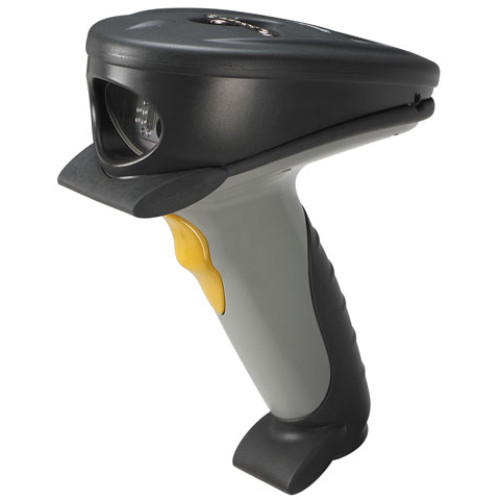

Symbol introduces the rugged handheld
imager for reading all major barcode
symbologies with the added capability of image capture. Powered by
Symbol's SE 4200 scan engine and an award-winning ergonomic design,
this industrial handheld imager is perfect for applications
requiring not only 1-D and 2-D omni-directional scanning but also
the ability to capture images and signatures.
Designed for Extreme Environments (XE)
The meets the most stringent
industrial standards, earning the Symbol XE class label. It is
sealed to the IP54 specification against windblown dust and rain,
and withstands multiple 6-ft./1.8 m drops to concrete over the
entire temperature range of -22° to 122°F/-30° to 50°C. Its XE
class ruggedness and high-throughput scanning ability make the
an ideal choice for a wide range of 2-D
and 1-D applications in industrial environments such as
distribution centers, manufacturing floors and warehouses
Innovative Design Features
As innovative as it is rugged, the
delivers the sophisticated ergonomic and operational features
industrial applications demand. The scanner's exit window is
scratch-resistant and recessed to prevent damage from direct
contact. A twist-to-lock cable seals the scanner and provides
superior strain relief. For those applications requiring quick
access and out-of-the-way storage, the
comes with a built-in metal hook for attachment to a pulley. And
the large, LED enhancing window and extra loud 75 dB twin beepers
make the "good decode" feedback impossible to miss. Leveraging the
award-winning Phaser "handle-forward" design makes the scanner
extremely comfortable to hold and reduces fatigue when scanning
throughout a full shift in scan-intensive applications.
PDF417, DataMatrix, MaxiCode and Postal Code
Whether your requirement is to read DataMatrix for small item
identification, MaxiCode for parcel sortation, postal codes for
mail-handling, omni-directional linear bar
codes or PDF417 across a variety of
applications, the provides unmatched
performance. The -HD, high density
imager, can read matrix codes as small as 5 mil DataMatrix, while
maintaining great working ranges on all other symbologies.
Image Capture and Video Applications
For image capture applications, the
enables the creation of an electronic image database by delivering
clear VGA resolution images while providing the user total control
over image attributes such as compression quality, transfer time
and file size. Understanding the need for instantaneous image
transfers, the 's "thumb nail" image can
be transmitted to the host in as little as half of a second over
your PC's standard COM port. Leveraging its extremely fast image
transfer capabilities, the can also
rapidly transmit sequentially captured images, providing a basic
video output for host display.
XE-class durability
|
Withstands multiple 6-ft./1.8 m drops to concrete over entire
temperature range.
|
Sealed to IP54 standard
|
Protected from windblown dust and rain
|
Bright, easy-to-see laser aiming pattern
|
Easy to aim: Point-and-shoot scanning and image capture
|
Very fast image transfer over a standard serial connection
|
Full black and white VGA resolution image transferred to host in
approximately 5 seconds
|
User selectable file formats
|
Industry standard file formats: JPEG, TIFF and BMP
|
Flash memory
|
Easy software upgrade in the field
|
|
Intuitive Operation and Use
|
|
To ensure you capture the best image on the first try, the
provides more than one aiming option. A
bright laser generated pattern clearly outlines the imager's field
of view, providing straightforward point-and-shoot scanning and
image capture. And introducing an industry first, a "video
viewfinder" that displays live images of your target on your host,
letting you decide if you have the picture you want, before you
pull the trigger.
To find out how your company can benefit from Symbol's scanners
contact us at any of our offices, or visit us at www.symbol.com/bar
code.
Specification Highlights
Physical Characteristics:
|
|
Dimensions:
|
6.8 in. H x 5.9 in. L x 2.9 in. D/173 mm H x 150 mm L x 74 mm
D
|
Weight:
|
11.7 oz./332 gm (without cable)
|
Power Requirements:
|
+4.75 to 5.25V Standby Current: 1 mA Average Current: 450 mA
|
|
Performance Characteristics:
|
|
Interfaces:
|
Integrated RS-232 with additional host interfaces supported by
Synapse Smart Cables (Keyboard wedge, OCIA, Dual RS-232, etc.)
|
Field of View:
|
32° horizontal / 24° vertical
|
Focal Point:
|
Standard: 6.5 in./16.5 cm from nose of scanner High Density: 2.5
in./6.4 cm from nose of scanner
|
Sensor:
|
Progressive Scan CCD
|
Optical Resolution:
|
640 x 480 pixels x 256 shades of gray
|
Pitch:
|
± 60° (from front to back)
|
Skew:
|
± 50° from plane parallel to symbol (side)
|
Rotational Tolerance:
|
± 180°
|
Print Contrast Resolution:
|
25% (1-D symbologies) or 35% (PDF417) absolute dark/light
reflectance differential
|
Aiming Pattern:
|
Visible laser diode at 650 nm
|
Decode Capability:
|
1-D Symbology: UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Code 39,
Code 39 Full ASCII, Trioptic Code 39, Code 93, UCC/EAN, ISBT 128,
Code 128, Codabar, I2of5, D2of5, Bookland EAN, UPC Coupon Code, MSI
Plessey 2-D Symbology: PDF417, MaxiCode, DataMatrix (ECC 200)
Postal Codes: U.S., Canada, UK, Japan, Australian, Holland
|
Imaging Options (User Selectable):
|
File Formats: JPEG, TIFF, BMP Image Resolution: Full (640x480
pixels), 1/2 (320x240), 1/3 (214x160) and 1/4 (Thumb Nail 160x120)
Grayscale Level: 256, 16, 2 shades of gray
|
|
Operating Temperature:
|
-22° to 122°F/-30° to 50°C
|
Storage Temperature:
|
-40° to 158°F/-40° to 70°C
|
Shock:
|
Withstands multiple 6-ft./1.8 m drops to concrete over entire
temperature range
|
Environmental Sealing:
|
IP54 (Industry standard for dust and water sealing)
|
Humidity:
|
5% to 95% (non-condensing)
|
Ambient Light Immunity:
|
Sunlight: Up to 9,000 ft.candles/96,890 LUX
|
|
Electrical Safety:
|
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
Laser Safety:
|
CDRH Class II, IEC Class 2
|
EMI/RFI:
|
FCC Part 15 Class B, ICES-003 Class B, European Union EMC
Directive
|
|
