Flexibility that Works Inside and Outside the
Enterprise

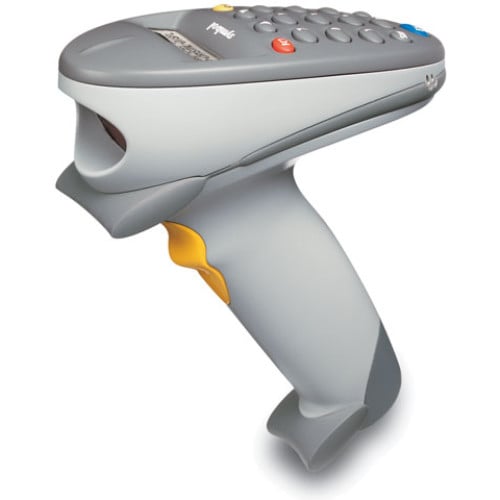

The Phaser P370 and P470 cordless RF bar code scanners from are
rugged, high-performance wireless devices that enable instant
decision-making and seamless communications throughout the
enterprise.
Designed with a comfortable forward-scanning pistol grip to
minimize fatigue in scan-intensive applications, the P370 and P470
scanners are available in keypad or keyless configurations.
|
Market
|
P470 Applications
|
User
|
|
Manufacturing/Industrial
|
Loading dock Factory floor Warehouse
|
Shipping and receiving clerks Assembly and line personnel
Forklift operators
|
|
Retail
|
Point-of-sale scanning Inventory counts Price verification
|
Cashiers Clerks Cashiers
|
|
Easy System Integration and Programmable Architecture
The P370 and P470 offer easy system integration along with a
programmable architecture that extends functionality beyond basic
bar code scanners. For fast integration, both the P370 and P470
support the 123Scan setup utility software, a convenient
Microsoft® Windows®-based program that helps
reduce your start-up time and costs for these scanners. This free
utility enables you to configure communication settings and
enable/disable symbologies. It also assists you in generating
advanced data formatting (ADF) rules to allow bar code data to be
modified by the scanner before it is sent to the host application.
The P370 and P470 scanners can be programmed via PC download or by
scanning bar codes generated by the utility.
For added versatility, you can also purchase MCLTM-Designer
software, a programmable architecture that extends scanner
functionality. Even non-programmers can develop custom data
management applications to harness the on-board computing power of
these scanners. Further, MCL-Link communication software easily
connects the P370 and P470 to your host. Capabilities include ODBC
database connectivity plus the automation of frequent tasks such as
nightly data downloads and look-up file updates.
Proven Performance and Affordability
With the Phaser P370 and P470 cordless RF bar code scanners, you
can choose the device that best meets your application needs in any
environment. The P370 is suited for extreme environments, making it
ideal for warehouse, yard or loading dock applications. And the
P470 delivers the identical data capture functionality for in-store
uses including stockroom tasks and oversized item checkout. Both
scanners deliver the proven performance and affordability that
customers have grown to expect from .
|
P470 Features
|
P470 Benefits
|
|
|
Cordless RF scanning
|
Enables real-time bar code data collection in factory,
warehouse, retail environments and wherever cables could restrict
movement or limit access
|
|
Keyless and keypad versions
|
Choose the features most needed
|
|
Pre-loaded application
|
Ready-to-use application allows scanning, data and quantity
entries right out of the box
|
|
2.4 GHz point-to-point radio frequency technology
|
Improves accuracy with error-free, reliable data
transmission
|
|
17-key alphanumeric keypad and 2-line x 20-character display
|
Allows users to easily view, enter and delete scanned records
for maximum productivity
|
|
Forward-scanning pistol grip
|
Reduces user fatigue in scan-intensive environments
|
|
Programmable architecture
|
Enables development of customized scanning applications using
MCL-Designer
|
|
Advanced long-range functionality
|
Enables users to read bar codes from as far as 30 feet (9.1
meters) for maximum productivity
|
|
Flash memory
|
Conduct easy software upgrades in the field
|
|
Supports 123Scan™ Advanced Data Formatting (ADF)
|
Delivers seamless integration of scanned data into the existing
host application
|
|
Sealed to IP54 standards (P370 only)
|
Suitable for extreme environments
|
|
Optional MCL-Designer
|
Develop custom data management applications
|
|
Preloaded inventory application software
|
Scan and store bar code data, enter quantities, review and
delete records
|
|
P370 and P470 Specification Highlights
|
P470 Physical Characteristics:
|
|
|
Dimensions
|
7.0 in. H x 9.2 in. W x 3.5 in. D/17.8 cm H x 23.1 cm W x 9.0 cm
D
|
|
Weight
|
12 oz/336 gm
|
|
Color
|
P370: Yellow body with dark gray keypad P470: Cash register
white body with light gray keypad
|
|
Keypad:
|
17-key keypad; single stroke numeric and shifted alpha;
user-programmable function keys
|
|
Display:
|
2-line x 20-character; view long lists/menus using scroll keys
with MCL application
|
|
Battery:
|
1100 mAh Lithium-ion battery charged via the cradle
|
|
Battery Charge Time:
|
Fully charged (100%) in approximately 3.5 hours
|
|
|
P470 Performance Characteristics:
|
|
|
Light Source:
|
650 nm visible laser diode
|
|
Scan Rate:
|
35 ± 5 scans per second (bi-directional)
|
|
Nominal Working Distance:
|
See Decode Zones
|
|
Print Contrast Minimum:
|
P370/470: 20% minimum reflectance P370ALR: 40% absolute
dark/light reflectance at 650 nm
|
|
Scan Angle:
|
42° ± 2°
|
|
Decode Capability:
|
UPC/EAN, Bookland EAN, Code 39, Code 39 Full ASCII, Trioptic
Code 39, Code 93, Codabar, Interleaved 2 of 5, Code 128, EAN 128,
Discrete 2 of 5, MSI Plessey and Coupon Code
|
|
Interfaces Supported:
|
RS-232, MCL-Link Lite or Synapse cables (Keyboard wedge, USB,
OCIA, Dual RS-232, etc.)
|
|
|
Operating Temperature:
|
P370: -4° to 122° F/ -20° to 50° C P470: 32° to 104° F/ 0° to
40° C
|
|
Storage Temperature:
|
-40° to 158° F/ -40° to 70° C
|
|
Humidity:
|
5% to 95% noncondensing
|
|
Drop Specifications:
|
P370: Multiple 6 ft./1.8 m drops to concrete over entire
temperature range P470: Multiple 5 ft./1.5 m drops to concrete over
entire temperature range
|
|
Environmental Sealing:
|
P370: All components sealed to IP54 against windblown rain and
dust
|
|
Ambient Light Immunity:
|
P370/470: Sunlight: 10,000 ft. candles/107,644 LUX Artificial
light: 450 ft. candles/4,844 LUX P370ALR: Sunlight: 4,000
ft-candles/ 43,056 LUX Artificial: 450 ft-candles/4,844 LUX
|
|
|
Default Application (Preloaded):
|
Transmit scanned or keyed in alpha-numeric data; key in quantity
to eliminate repetitive bar code scanning
|
|
MCL-Designer (Optional):
|
Windows-based application development software for creation of
customized P370/P470 /P360/P460 scanner applications
|
|
MCL-Link (Optional):
|
Communications software used with MCL-Designer-generated
applications enables seamless connection to host application for
task automation, ODBC connectivity, real time text messaging,
built-in CRC error detection and more
|
|
|
Radio Range:
|
Up to 100 ft./30 m without a direct line of sight; coexists with
Spectrum24®‚ systems
|
|
Frequency:
|
2.4 GHz point-to-point narrow band, 82 user-selectable
channels
|
|
Radio Output:
|
<10 mW
|
|
|
Versions:
|
PL370 Dark Gray ; PL470 Light Gray
|
|
Dimensions:
|
3.5 in. H x 9.5 in. L x 4 in. W / 8.9 cm H x 24.1 cm L x 10.2 cm
W
|
|
Power:
|
Operates from a separate 9V power supply 1.2A
|
|
Cables:
|
RS-232 or Synapse cables
|
|
|
Electrical Safety:
|
Certification to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
|
Laser Safety:
|
CDRH Class II, IEC Class 2
|
|
EMI/RFI:
|
FCC Part 15 Class B, ICES-003 Class B, European Union EMC
Directive, Australian SMA
|
|
|
