| Manufacturer AIDC | Symbol |
|---|---|
| Model Name | AP 5131 |

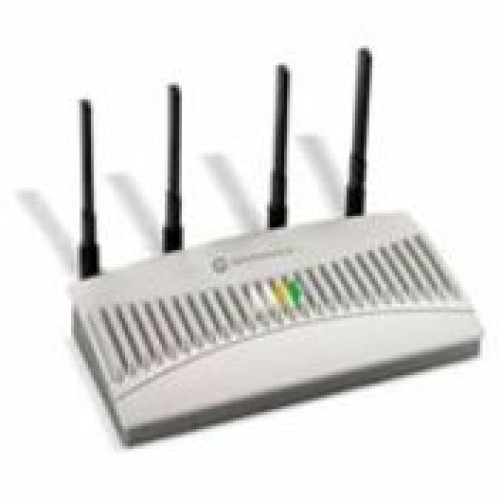

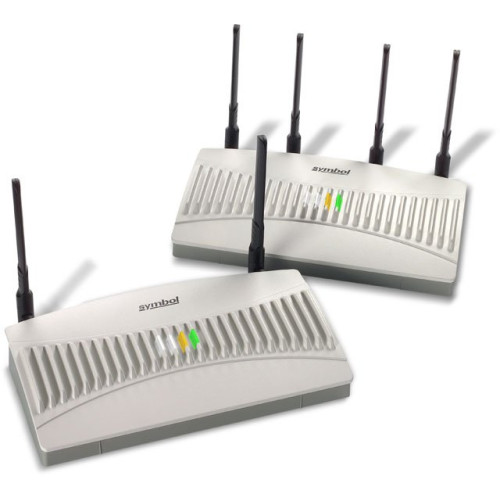

Symbol AP 5131 Specs
Technical Information
- Wireless LAN Standard: IEEE 802.11a/b/g
- ISM Band: Yes
- UNII Band: Yes
- ISM Minimum Frequency: 2.41 GHz
- UNII Minimum Frequency: 5.15 GHz
- Total Number of Antennas: 4
- Wireless Transmission Speed: 54 Mbps
- ISM Maximum Frequency: 2.46 GHz
- UNII Maximum Frequency: 5.85 GHz
- Wireless Security:
- 802.11i
- WPA2
- WPA
- Triple DES
- IPSec encryption
General Information
- Product Type: Wireless Access Point
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: AP-5131
- Product Name: AP-5131 Wireless Access Point
- Packaged Quantity: 1
Physical Characteristics
- Height: 1.8"
- Depth: 5.3"
- Form Factor:
- Desktop
- Wall Mountable
- Weight (Approximate): 1.95 lb
Interfaces/Ports
- Fast Ethernet Port: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- Standards Compliance:
- UL / cUL 60950-1
- IEC / EN60950-1
- UL2043
- TUV GS
- RoHS
- FCC (USA)
- Industry Canada
- CE (Europe)
- TELEC (Japan)
- WPA2
- WMM
- IEEE Standards:
- IEEE 802.3af
- IEEE 802.11i
- IEEE 802.1x
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.3
- Wi-Fi:
- Wi-Fi
- Additional Information:
- Operating Channels:
- Channnel 1-35 (4920 - 5825 MHz)
- Channnel 1-13 (2412 - 2472 MHz)
Management & Protocols
- Management:
- Java web-based graphical user interface
- DHCP
- QoS
- SNMP v3
- Command line interface (CLI)
Power Description
- Input Voltage: 48 V DC
- Power Source: AC Adapter
