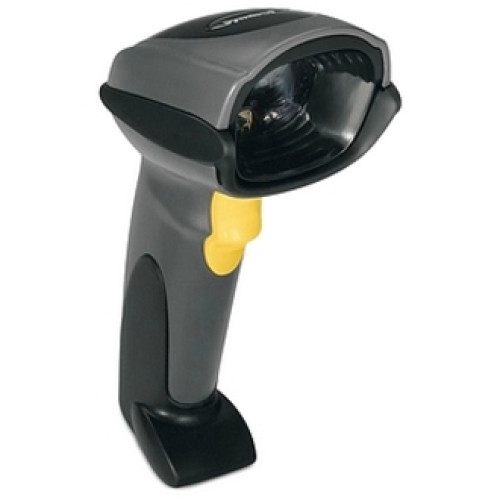

Symbol DS6707 Barcode Scanner Symbol DS6707 Barcode Scanner Symbol DS6707 Barcode Scanner Symbol DS6707 Barcode Scanner

Symbol DS6707 Barcode Scanner
Part #: DS6707-DC20007ZZR | SKU: SYM21055

The Motorola DS6707 helps maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor. With the DS6707, you get the power of a barcode scanner, digital camera and document scanner in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable barcode scanning and the ability to scan full size documents including fine print the DS6707 is the right tool for the job. A wide range of connection options makes the Motorola DS6707 the right choice for any application.

Symbol DS6707 Barcode Scanner

Part Details: DS6707-DC, SCANNER ONLY, 2D Imager, Document Capture capability. Color: Black. Cables and accessories must be purchased separately.
Need a different version of the Symbol DS6707 Barcode Scanner? View all 9 configurations

Additional Information

Color Black
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Symbol
Model Name DS6707
Scanner Capability 2D
Scanner Type Imager
Symbol DS6707 Specs Symbol DS6707 Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 10"@5 mil - Code 39
    • 0.80" - 16.80"@13 mil - 100% UPC/EAN
    • 0.70" - 28.30"@20 mil - Code 39
    • 1.90" - 11.80"@10 mil - PDF417
    • 2.60" - 12.20"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6707
  • Product Name: DS6707 DC Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Medical Electrical Equipment: EN60001-1-2: 2002
    • Electrical Safety:
    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • Laser Safety:
    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • 21CFR1040.10
    • 21CFR1040.11
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
  • Additional Information:
    • Supported Interfaces:
    • USBSerial

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details
