Symbol DS6707 Barcode Scanner Symbol DS6707 Barcode Scanner Symbol DS6707 Barcode Scanner Symbol DS6707 Barcode Scanner Symbol DS6707 Barcode Scanner

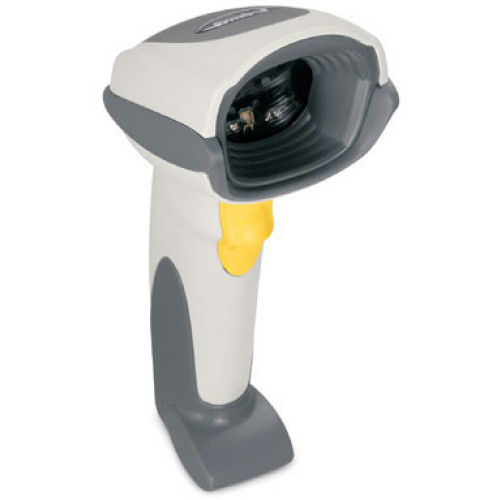

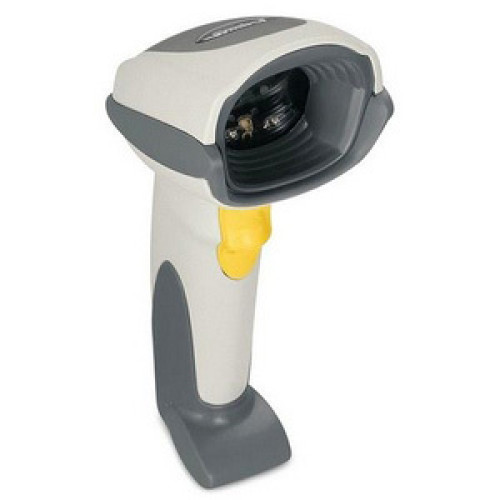

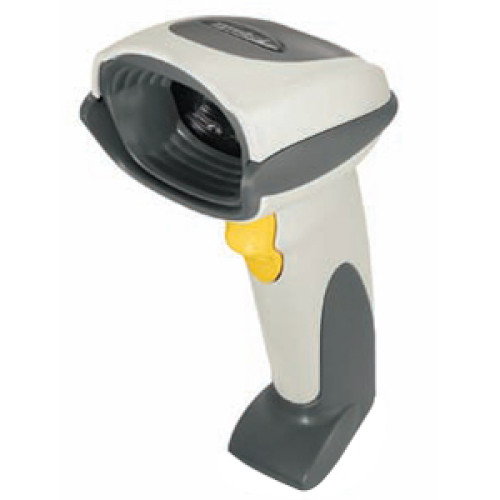

Symbol DS6707 Barcode Scanner
Part #: DS6707-HD20001ZZR | SKU: SYM72658

The Motorola DS6707 helps maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor. With the DS6707, you get the power of a barcode scanner, digital camera and document scanner in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable barcode scanning and the ability to scan full size documents including fine print the DS6707 is the right tool for the job. A wide range of connection options makes the Motorola DS6707 the right choice for any application.

Symbol DS6707 Barcode Scanner

Part Details: DS6707-HD, SCANNER ONLY, 2D Imager, High Density. Cables and accessories must be purchased separately. Color: White.
Need a different version of the Symbol DS6707 Barcode Scanner? View all 9 configurations

Additional Information

Color White
Included Cables Scanner Only - No Cable
Manufacturer Symbol
Model Name DS6707
Scanner Capability 2D
Scanner Type Imager
Symbol DS6707 Specs Symbol DS6707 Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN and with supplementals
    • Code 39
    • Code 39 Full
    • ASCII
    • Tri-optic Code 39
    • RSS variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • PDF417 (and Variants):
    • PDF417
    • microPDF417 and composite codes
    • Postal:
    • U.S. Postnet and Planet
    • U.K.
    • Japan
    • Australian
    • Dutch
    • 2-D:
    • MaxiCodde
    • DataMatrix (ECC 200)
    • QR Code
    • 1-D:
    • UPC/EAN and with supplementals
    • Code 39
    • Code 39 Full
    • ASCII
    • Tri-optic Code 39
    • RSS variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • PDF417 (and Variants):
    • PDF417
    • microPDF417 and composite codes
    • Postal:
    • U.S. Postnet and Planet
    • U.K.
    • Japan
    • Australian
    • Dutch
    • 2-D:
    • MaxiCodde
    • DataMatrix (ECC 200)
    • QR Code
  • Depth of Field:
    • 0.84" - 2.42"@3 mil - Code 39
    • 0.42" - 3.13"@4 mil - Code 39
    • 0.29" - 3.38"@5 mil - Code 39
    • 4.38"@7.50 mil - Code 39
    • 0.59" - 4.96"@10 mil - Code 39
    • 0.42" - 8.21"@20 mil - Code 39
    • 0.21" - 5.13"@13 mil - 100% UPC
    • 0.63" - 3.10"@6.67 mil - PDF417
    • 0.46" - 3.54"@10 mil - PDF417
    • 1.33" - 4.46"@15 mil - PDF417
    • 1.04" - 2.13"@4 mil - Data Matrix
    • 0.79" - 2.50"@5 mil - Data Matrix
    • 0.50" - 3"@7.50 mil - Data Matrix
    • 0.54" - 3.50"@10 mil - Data Matrix
    • 1.13" - 2.17"@4 mil - QR Code
    • 0.88" - 2.54"@5 mil - QR Code
    • 0.67" - 3"@7.50 mil - QR Code
    • 0.46" - 3.42"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6707
  • Product Name: Symbol DS6707 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 5 Year
Extended Details
