Additional Information
| Color | Black |
|---|---|
| Connectivity | Corded |
| Form Factor | Handheld |
| Included Cables | Scanner Only - No Cable |
| Interface Options | USB |
| Manufacturer | Symbol |
| Model Name | DS6707 |
| Scanner Capability | 2D |
| Scanner Type | Imager |
Symbol DS6707 Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Cable
- Light Source: Laser
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1-D:
- UPC/EAN and with supplementals
- Code 39
- Code 39 Full ASCII
- Tri-optic Code 39
- GS1DataBar (formerly RSS)
- Code 128
- Code 128 Full ASCII
- GS1-128 (formerly UCC/EAN-128)
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Codell
- IATA
- Bookland EAN
- Code 32
- PDF417 (and Variants):
- PDF417
- MicroPDF417 and composite codes
- Postal:
- U.S. Postnet and Planet
- U.K.
- Japan
- Australian
- Dutch
- 4 State Postal
- Post US 4
- 2-D:
- MaxiCode
- DataMatrix (ECC 200)
- QR Code
- MicroQR
- Aztec
- 1-D:
- UPC/EAN and with supplementals
- Code 39
- Code 39 Full ASCII
- Tri-optic Code 39
- GS1DataBar (formerly RSS)
- Code 128
- Code 128 Full ASCII
- GS1-128 (formerly UCC/EAN-128)
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Codell
- IATA
- Bookland EAN
- Code 32
- PDF417 (and Variants):
- PDF417
- MicroPDF417 and composite codes
- Postal:
- U.S. Postnet and Planet
- U.K.
- Japan
- Australian
- Dutch
- 4 State Postal
- Post US 4
- 2-D:
- MaxiCode
- DataMatrix (ECC 200)
- QR Code
- MicroQR
- Aztec
- Depth of Field:
- 0.84" - 2.42"@3 mil - Code 39
- 0.42" - 3.13"@4 mil - Code 39
- 0.29" - 3.38"@5 mil - Code 39
- 4.38"@7.50 mil - Code 39
- 0.59" - 4.96"@10 mil - Code 39
- 0.42" - 8.21"@20 mil - Code 39
- 0.21" - 5.13"@13 mil - 100% UPC
- 0.63" - 3.10"@6.67 mil - PDF417
- 0.46" - 3.54"@10 mil - PDF417
- 1.33" - 4.46"@15 mil - PDF417
- 1.04" - 2.13"@4 mil - Data Matrix
- 0.79" - 2.50"@5 mil - Data Matrix
- 0.50" - 3"@7.50 mil - Data Matrix
- 0.54" - 3.50"@10 mil - Data Matrix
- 1.13" - 2.17"@4 mil - QR Code
- 0.88" - 2.54"@5 mil - QR Code
- 0.67" - 3"@7.50 mil - QR Code
- 0.46" - 3.42"@10 mil - QR Code
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS6707

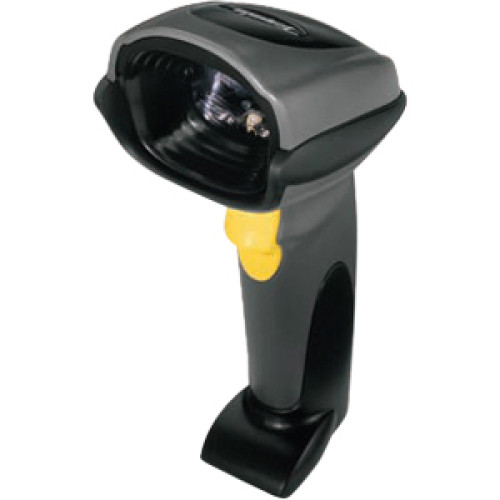

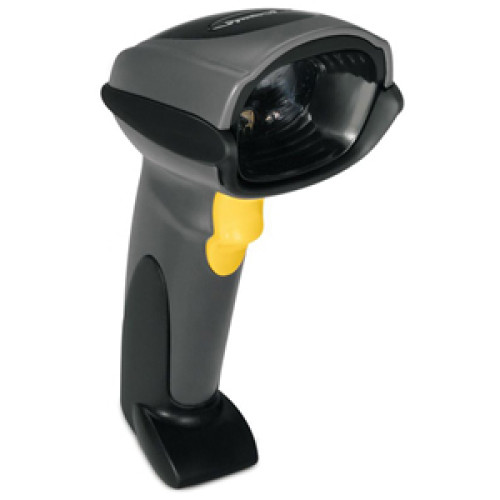

- Product Name: Symbol DS6707 Barcode Reader
- Product Line: Symbol
Physical Characteristics
- Height: 6.6"
- Width: 2.8"
- Depth: 5.1"
- Color: Twilight Black
- Weight (Approximate): 7.40 oz
Interfaces/Ports
- Host Interface: USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Warranty
- Limited Warranty: 5 Year
