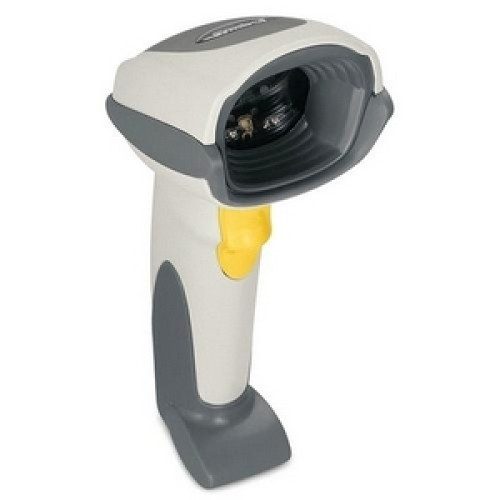

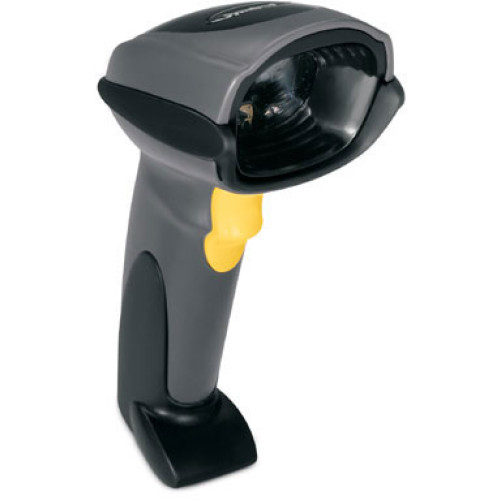

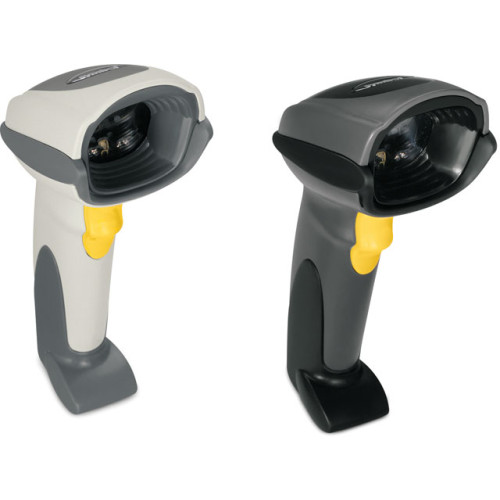

Symbol DS6707 Barcode Scanner Part # DS6707-SR20007ZZR

The Motorola DS6707 helps maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor. With the DS6707, you get the power of a barcode scanner, digital camera and document scanner in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable barcode scanning and the ability to scan full size documents including fine print the DS6707 is the right tool for the job. A wide range of connection options makes the Motorola DS6707 the right choice for any application.

DS6707-SR20007ZZR Symbol DS6707

Part Details: DS6707-SR, SCANNER ONLY, 2D Imager. Cables and accessories must be purchased separately. Color: Black. For the full kit purchase (Part# DS6707-SRBU0100ZR).

Additional Information

Color Black
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Symbol
Model Name DS6707
Product Condition New
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.10" - 6.50"@5 mil - Code 39
    • 0.50" - 9.70"@13 mil - 100% UPC/EAN
    • 0.50" - 15.20"@20 mil - Code 39
    • 0.90" - 7"@10 mil - PDF417
    • 1.10" - 7.50"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6707
  • Product Name: DS6707 SR Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Medical Electrical Equipment: EN60001-1-2: 2002
    • Electrical Safety:
    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • Laser Safety:
    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • 21CFR1040.10
    • 21CFR1040.11
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
  • Additional Information:
    • Supported Interfaces:
    • USBSerial

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details

Recommended Accessories

  • LS 1203 (CBA-K01-S07PAR)

    Cable, 7 ft. straight PS/2 Keyboard wedge cable.
    Price: $22.08
    In Stock
  • ET1 Enterprise (23844-00-00R)

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $16.99
    In Stock
  • Cables (CBA-U15-S15ZAR)

    Cable, 15' PoweredUSB cable, Straight, Call to purchase.
    Price: $57.00
    In Stock
  • Cables (CBA-U06-S09EAR)

    Cable, USB EAS, Series A Connection, 9 ft, Straight
    Price: $68.00
    Temporarily out of stock, available to order
  • Cables (CBA-R32-S07PAR)

    Cable, 7 feet, Straight, RS-232, TRU TTL DB-9F
    Price: $58.00
    In Stock
