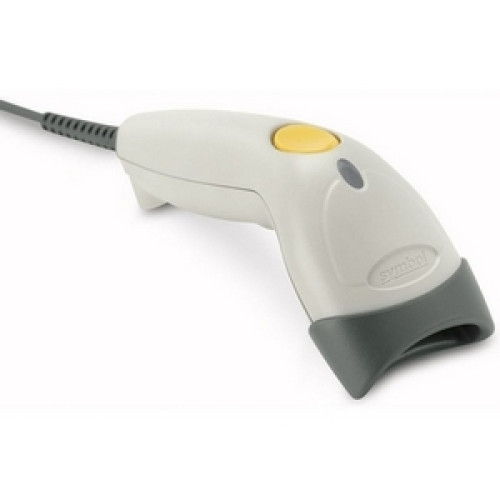

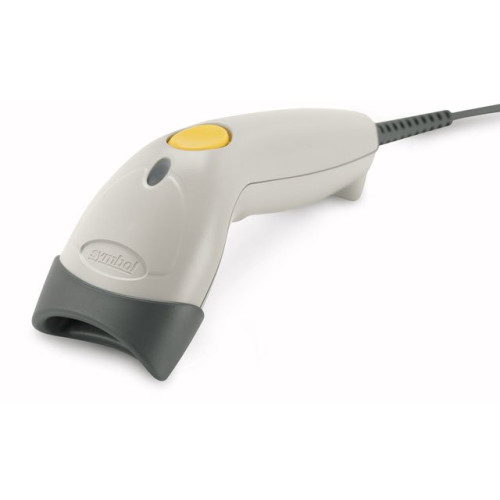

Symbol LS1203 Barcode Scanner
Part #: LS1203-7AZU0100Z | SKU: SYM20091

The Motorola LS1203 handheld scanner is designed to meet the needs of small retailers, delivering high quality laser scanning, user-friendly ergonomics and durability at an affordable price. From gift shops, boutiques, video and sporting goods stores to jewelers, florists and more, the LS1203 delivers the features, functionality and reliability needed to improve operational efficiencies from the checkout line to the back room. Manual keying is minimized, customers are charged the correct amount and paper-based inventory processes are automated. The result is faster checkout, increased customer satisfaction, increased employee productivity and a rapid return on investment. The LS1203 features a choice of USB, Keyboard Wedge and RS232 interface kits as well as scanner-only versions.

Symbol LS1203 Barcode Scanner

Part Details: LS 1203, USB kit, Black. Includes 7 ft. USB cable.

Additional Information

Manufacturer Symbol
Model Name LS1203
Scanner Capability 1D

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Scanning Distance: 8"
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • IATA
    • Code 11
    • RSS Variants
    • Chinese 2 of 5
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • IATA
    • Code 11
    • RSS Variants
    • Chinese 2 of 5
  • Depth of Field: 8"@ - 100% UPC/EAN

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS1203
  • Product Name: Symbol LS1203 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 2.4"
  • Width: 2.4"
  • Depth: 7.1"
  • Color: Black
  • Weight (Approximate): 4.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS1203 Barcode Reader
    • USB Type A Cable
    • Symbol LS1203 Barcode Reader
    • USB Type A Cable
  • Certifications & Standards:
    • Laser Safety: IEC Class 1
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Keyboard Wedge
    • Serial

Power Description

  • Input Voltage: 5 V DC
  • Power Source: AC Adapter

Warranty

  • Limited Warranty: 3 Year
