Symbol LS2208 Barcode Scanner Symbol LS2208 Barcode Scanner Symbol LS2208 Barcode Scanner Symbol LS2208 Barcode Scanner Symbol LS2208 Barcode Scanner

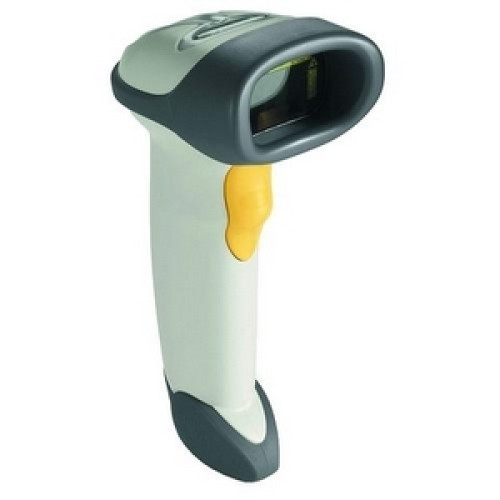

Symbol LS2208 Barcode Scanner
Part #: LS2208-1AZR0100E | SKU: SYM23744

Introducing Zebra's LS2208 handheld laser imager. With over eight million sold, the LS2208 remains Zebra's best selling handheld laser scanner. The LS2208 has it all ? enterprise class scanning in a very ergonomic and strength lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 ? the well-proven scanner powering the checkout lines all around the world.

Symbol LS2208 Barcode Scanner

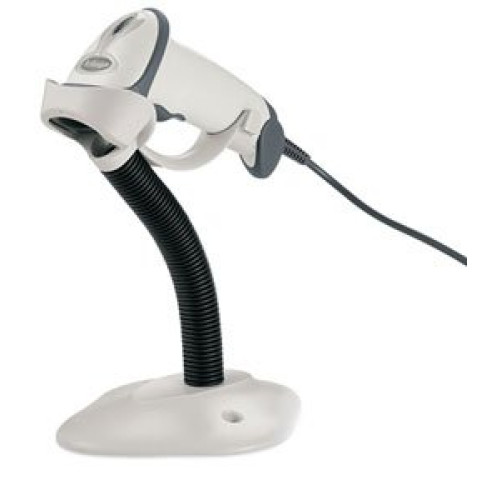

Part Details: LS2208, RS-232 kit, White. Includes 9 ft. RS-232 cable, 220V, Intellistand.
Need a different version of the Symbol LS2208 Barcode Scanner? View all 40 configurations

Additional Information

Manufacturer Symbol
Model Name LS2208
Scanner Capability 1D
Symbol LS2208 Specs Symbol LS2208 Specs (pdf)

Technical Information

  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 39 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • IATA
    • RSS Variants
    • China Post 2 of 5
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 39 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • IATA
    • RSS Variants
    • China Post 2 of 5
  • Depth of Field:
    • 2.50" - 6"@5 mil
    • 1.50" - 10"@7.50 mil
    • 1" - 14.50"@10 mil
    • 0 mil - 17"@ - 100% UPC
    • 0 mil - 23"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS2208
  • Product Name: Symbol LS2208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6"
  • Width: 2.5"
  • Depth: 3.3"
  • Color: White
  • Weight (Approximate): 5.15 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS2208-SR20001 Barcode Reader
    • RS232 Cable assembly (25-32465-20) DB9 Female, TxD on 2, 6 ft.
    • 220V Power Supply (50-14000-009)
    • Stand (20-61019-01)
    • CD ROM (SW-61077-02)
    • Symbol LS2208-SR20001 Barcode Reader
    • RS232 Cable assembly (25-32465-20) DB9 Female, TxD on 2, 6 ft.
    • 220V Power Supply (50-14000-009)
    • Stand (20-61019-01)
    • CD ROM (SW-61077-02)
  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 220 V AC
Extended Details
