| Manufacturer | Symbol |
|---|---|
| Model Name | LS2208 |
| Scanner Capability | 1D |

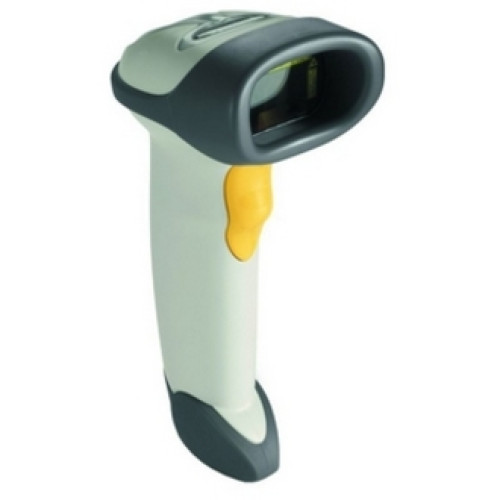

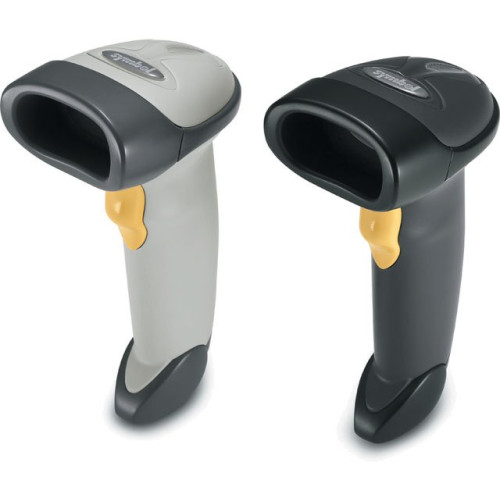

Symbol LS2208 Specs
Technical Information
- Form Factor: Handheld Scanner
- Symbologies Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- RSS Variants
- Chinese 2 of 5
- Scanner Type: Laser
- Scan Rate: 100 Scans/sec
- Interface Options:
- RS-232
- Keyboard Wedge
- Wand
- IBM 468X/469X
- USB
- Undecoded
- Synapse
- Interface Connectivity: Corded
- Scan Pattern: Bi-directional
- Depth of Field:
- 2.5 - 6"@5mils
- 1.5 - 10"@7.5mils
- 1 - 14.5"@10mils
- 0 - 17" - 100 % UPC
- 0 - 23"@20mils
General Information
- Manufacturer: Symbol
- Product Name: LS 2208 Barcode Scanner
Physical Characteristics
- Dimensions: 6" (152.4mm) x 2.5" (63.5mm) x 3.34" (84.84mm)
- Weight: 5.15 oz
- Color: Black
Agency Approvals
- Agency Approvals:
- UL 1950
- CSA C22.2 No. 950
- EN60950
- IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Taiwan EMC
- Japan:
- VCCI
- MITI
- Dentori
- CDRH Class II
- IEC Class 2
Other
- Package Contents:
- LS2208 Barcode Scanner
- Siemens Nix Cable (25-55591-20)

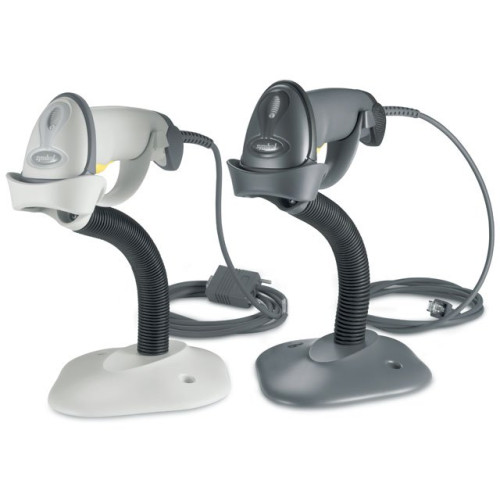

- Stand (20-61019-02)
- CD ROM (SW-61077-02)
- Cables Included: RS-232
Environmental Conditions
- Temperature:
- 0°C (32°F) to 50°C (122°F) Operating
- -40°C (-40°F) to 70°C (158°F) Storage
- Humidity: 5 to 95% Non-condensing
Warranty
- Manufacturer Warranty: 5 Year(s)
