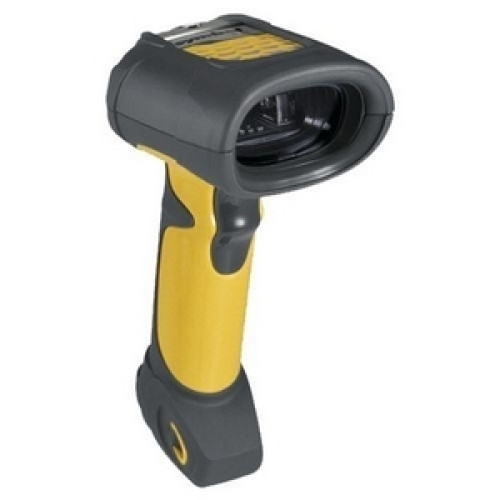

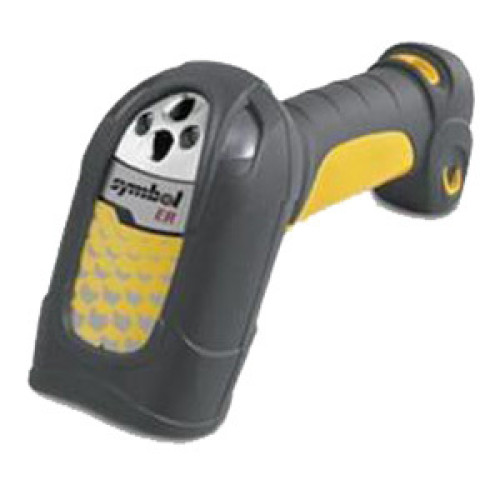

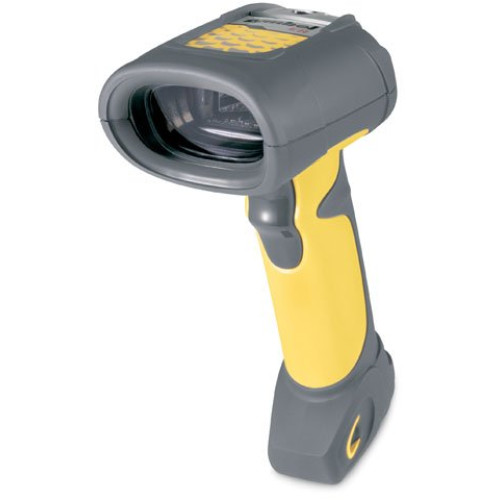

Symbol LS3408ER, LS3408 Series Barcode Scanner Symbol LS3408ER, LS3408 Series Barcode Scanner Symbol LS3408ER, LS3408 Series Barcode Scanner Symbol LS3408ER, LS3408 Series Barcode Scanner

Symbol LS3408ER, LS3408 Series Barcode Scanner
Part #: LS3408-ER20005R | SKU: SYM27717

The LS3408ER : LS3408 Series can read barcodes from as far away as 45 feet (14.6 meters) and as close as 5 inches (13 cm) to give you the kind of versatility that's necessary for today's industrial applications. The rugged housing, sealed to IP65 standards, withstands repeated drops of up to 6.5 feet (2 meters) to concrete, ensuring limited downtime. A variety of interface options makes connecting to existing systems fast and easy.

Symbol LS3408ER, LS3408 Series Barcode Scanner

Part Details: Scanner Only - 1D Laser - Extended Range - Cables and accessories sold separately
Need a different version of the Symbol LS3408-ER Barcode Scanner? View all 2 configurations

Additional Information

Color Yellow
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer AIDC Symbol
Model Name LS3408-ER
Scanner Capability 1D
Scanner Type CCD, Imager
Symbol LS3408-ER Specs Symbol LS3408-ER Specs (pdf)

Technical Information

  • Scan Rate: 36 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • UCC/EAN RSS Variants
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • UCC/EAN RSS Variants
  • Maximum Scan Resolution: 7 mil
  • Depth of Field:
    • 0.25" - 20"@7.50 mil
    • 2" - 32"@10 mil
    • 3" - 69"@15 mil
    • 3" - 94"@20 mil
    • 15" - 15 ft@55 mil
    • 0 mil - 30.42 ft@70 mil
    • 0 mil - 45 ft@100 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3408-ER
  • Product Name: Symbol LS3408-ER Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 12.56 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • LS3408-ER Barcode Reader
    • Quick Start Guide
    • LS3408-ER Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • RoHS
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
Extended Details
