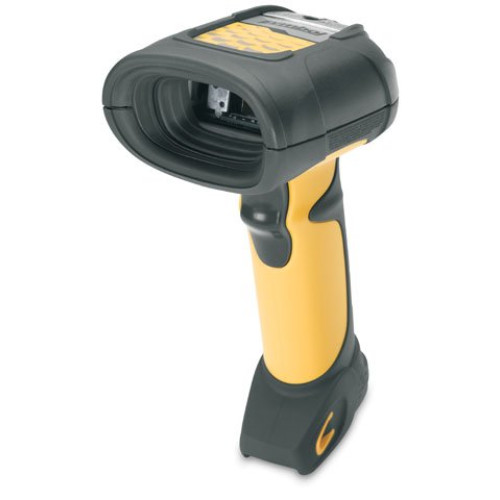

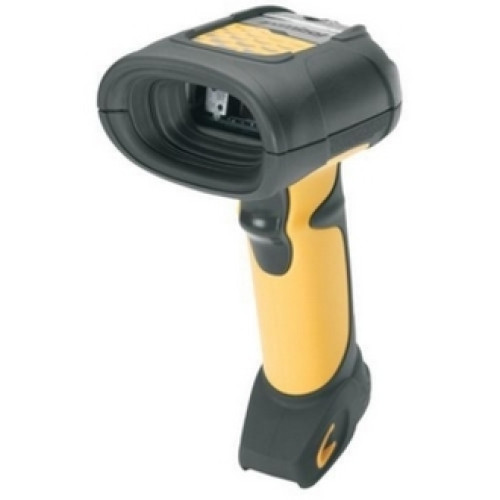

Symbol LS 3478 ER Barcode Scanner
Part #: LS3478-ER20005WR | SKU: SYM29388

The Symbol LS 3478 ER is a new, rugged wireless barcode scanner with extended range capabilities, meaning barcodes can be read from up to 45 feet away. Warehouses, industrial facilities and retail stockrooms require higher standards of dirt and moisture protection, so the LS 3478 ER was designed with an IP65-rated seal, keeping the electronics performing properly for years. The LS 3478 ER reads all linear barcode, has a comfortable grip and features both bright LED and beeper positive scan notifications - never worry you missed a scan again!

Symbol LS 3478 ER Barcode Scanner

Part Details: LS 3478 ER, Scanner only (Bluetooth, Extra Range, M-Interface, Cordless Scanner and CL 2) - Color: Yellow. Cradle and cables not included. See accessories.

Need a different version of the Symbol LS 3478 ER Barcode Scanner? View all 3 configurations

Additional Information

Connectivity	Cordless
Manufacturer	Symbol
Model Name	LS 3478 ER
Scanner Capability	1D

Symbol LS 3478 ER Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Rate: 36 scan/s
Connectivity Technology: Wireless
Scanning Distance: 328.08 ft
Light Source: Laser
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS Variants
- RSS Variants
- Code 128
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS Variants
- RSS Variants
- Code 128
Maximum Scan Resolution: 7.50 mil
Depth of Field:
- 0.25" - 20"@7.50 mil
- 2" - 32"@10 mil
- 3" - 69"@15 mil
- 3" - 94"@20 mil
- 15" - 15 ft@55 mil
- 0 mil - 30.42 ft@70 mil
- 0 mil - 45 ft@100 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS3478-ER
Product Name: Symbol LS3478-ER Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 7.3"
Width: 4.8"
Depth: 2.9"
Color:
- Yellow
- Black
Weight (Approximate): 14.80 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- RoHS Compliant
- Input Transient Protection:
- IEC 1000-4-(2,3,4,5,6,11)
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Japan VCCI/MITI/Dentori
- Laser Safety:
- IEC825-1 Class 2
Additional Information:
- Supported Interfaces:
- Serial
- Keyboard Wedge
- Wand Emulation
- IBM 468X/469X
- USB
- Synapse

Warranty

Limited Warranty: 3 Year

Network & Communication

Bluetooth: Yes

Extended Details
