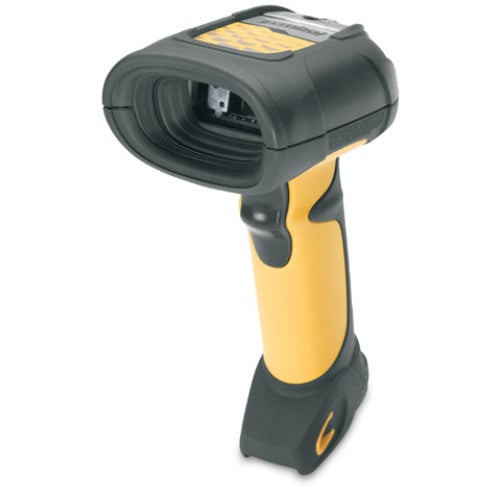

Symbol LS 3478 ER Barcode Scanner
Part #: LS3478-ER20005WW | SKU: SYM15735

The Symbol LS 3478 ER is a new, rugged wireless barcode scanner with extended range capabilities, meaning barcodes can be read from up to 45 feet away. Warehouses, industrial facilities and retail stockrooms require higher standards of dirt and moisture protection, so the LS 3478 ER was designed with an IP65-rated seal, keeping the electronics performing properly for years. The LS 3478 ER reads all linear barcode, has a comfortable grip and features both bright LED and beeper positive scan notifications - never worry you missed a scan again!

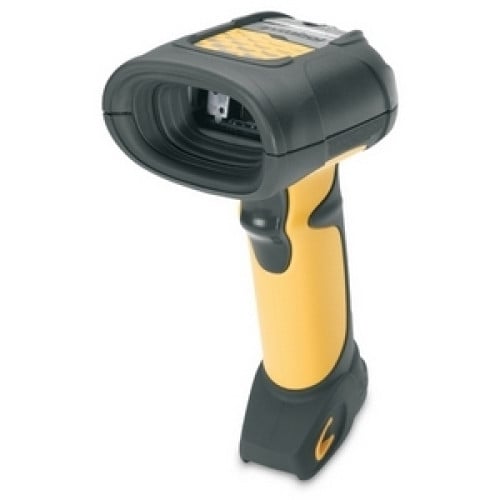

Symbol LS 3478 ER Barcode Scanner

Part Details: LS 3478 ER, Scanner only (Bluetooth, Extra Range, M-Interface, Cordless Scanner and CL 2) - Color: Yellow. Cradle and cables not included. See accessories.

Need a different version of the Symbol LS 3478 ER Barcode Scanner? View all 3 configurations

Additional Information

Connectivity	Cordless
Manufacturer AIDC	Symbol
Model Name	LS 3478 ER
Scanner Capability	1D

Symbol LS 3478 ER Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 7.5 mil(s)
Symbologies Supported:
- Bookland EAN
- Codabar
- Code 11
- Code 32
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 93
- Code 128
- Code 128 Full ASCII
- Discrete 2 of 5
- Interleaved 2 of 5
- IATA
- JAN-8
- JAN-13
- MSI
- RSS Variants
- UCC/EAN 128
- UCC/EAN RSS
- UPC/EAN
- UPC/EAN Supplementals
Scanner Type: Laser
Scan Rate: 36 Scans/sec
Interface Options:
- RS-232
- Keyboard Wedge
- Wand Emulation
- Scanner Emulation
- IBM 468X/469X
- USB
- Synapse
Interface Connectivity: Cordless
Cordless Range: 100m
Depth of Field:
- 0.25 - 20"@7.5mils
- 2.0 - 32"@10mils
- 3.0 - 69"@15mils
- 3 - 94"@20mils
- 15 - 180"@55mils
- 0.0 - 365"@70mils - Reflective
- 0.0 - 540"@100mils - Reflective
Battery Capacity: 2200 mAh

General Information

Manufacturer: Symbol
Product Name: LS3478-ER Rugged Cordless Barcode Scanner

Physical Characteristics

Dimensions: 18.65cm x 12.25cm x 7.43cm
Weight: 14.8 oz - Including LiON Battery
Color:
- Black
- Yellow

Agency Approvals

Agency Approvals:
- IEC 1000-4-(2,3,4,5,6,11)
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Japan VCCI/MITI/Dentori
- IEC825-1 Class 2

Environmental Conditions

Temperature:
- -20Â°C (-4Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
