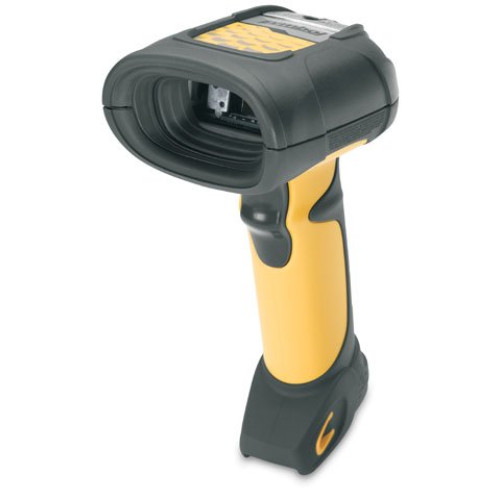

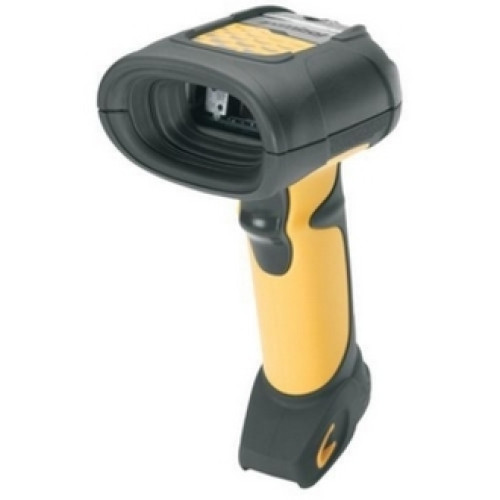

Symbol LS 3478 ER Barcode Scanner
Part #: LS3478-ERBU0100UR | SKU: SYM29389

The Symbol LS 3478 ER is a new, rugged wireless barcode scanner with extended range capabilities, meaning barcodes can be read from up to 45 feet away. Warehouses, industrial facilities and retail stockrooms require higher standards of dirt and moisture protection, so the LS 3478 ER was designed with an IP65-rated seal, keeping the electronics performing properly for years. The LS 3478 ER reads all linear barcode, has a comfortable grip and features both bright LED and beeper positive scan notifications - never worry you missed a scan again!

Symbol LS 3478 ER Barcode Scanner

Part Details: LS 3478 ER, Scanner with Radio/Charging Cradle, 7 ft. Straight USB Cable and US Power supply.

Additional Information

Manufacturer Symbol
Model Name LS 3478 ER

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 0.25" - 20"@7.50 mil
    • 2" - 32"@10 mil
    • 3" - 69"@15 mil
    • 3" - 94"@20 mil
    • 15" - 15 ft@55 mil
    • 0 mil - 30.42 ft@70 mil
    • 0 mil - 45 ft@100 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-ER
  • Product Name: Symbol LS3478-ER Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 14.80 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS3478-ER Barcode Reader
    • Cradle
    • Power Supply
    • 7ft. USB Straight Cable
    • Symbol LS3478-ER Barcode Reader
    • Cradle
    • Power Supply
    • 7ft. USB Straight Cable
  • Certifications & Standards:
    • RoHS Compliant
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeWand EmulationIBM 468X/469XUSBSynapse

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Extended Details

Recommended Accessories for Model: Symbol LS 3478 ER Barcode Scanner

  • Zebra VC5090 Accessory
    Part #: 25-71918-01R | SKU: 26254

    Cable, Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information.
    Price: $205.79
    In Stock
  • Zebra DS3578-ER Power Device
    Part #: 50-16000-182R | SKU: 21798

    AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
    Price: $13.92
    In Stock
  • Zebra LS 3478 ER & FZ Battery
    Part #: BTRY-LS34IAB00-00 | SKU: 21800

    Accessory, Spare battery, Li-Ion, Compatible with LS3478, LS3578, DS3478 and DS3578.
    $103.50
    In Stock
  • Zebra DS3508 Power Device
    Part #: PWR-BGA9V18W0WW | SKU: 447183

    Universal Power Supply, 9v D/C, 100-250v A/C. Requires Line Cord (P/N 50-16000-182R).
    $55.20
    In Stock
  • Symbol LS 3578 ER & FZ Accessory
    Part #: STB3508-C0007R | SKU: 30166

    STB3508 Cradle, Charge Only Cradle (No Communication), Compatible with LS3578 and DS3578. Cradle Only. Power supply and US AC line cord must be purchased separately.
