LS 3478 FZ, Scanner with Radio/Charging Cradle, 7 ft. Straight RS-232 Cable and US Power supply.
Free Shipping

Product was successfully added to your shopping cart.
16981 Symbol

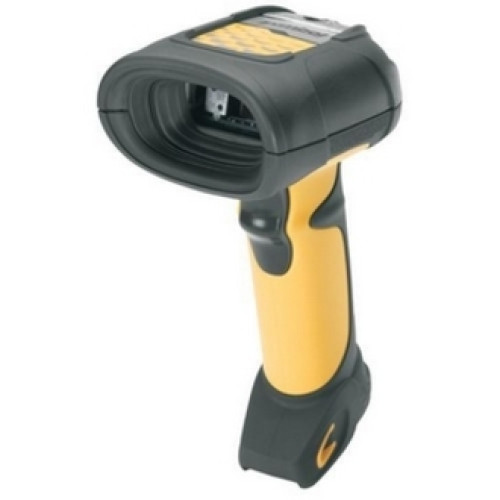

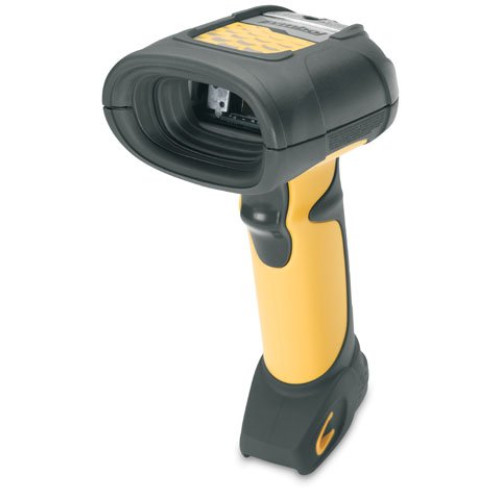

LS3478-FZBR0100U - Symbol LS 3478 FZ Bar code Scanner

LS 3478 FZ, Scanner with Radio/Charging Cradle, 7 ft. Straight RS-232 Cable and US Power supply.
InStock
Free Shipping

Description

The Symbol LS 3478 FZ is a new, rugged wireless bar code scanner with fuzzy logic technology, which allows reading of soiled, smudged or otherwise damaged bar codes. Warehouses, industrial facilities and retail stockrooms require higher standards of dirt and moisture protection, so the LS 3478 FZ was designed with an IP65-rated seal, keeping the electronics performing properly for years. The LS 3478 FZ reads all linear bar code, has a comfortable grip and features both bright LED and beeper positive scan notifications - never worry you missed a scan again!
  • Advanced data formatting - Eliminates costly modifications to the host software
  • Bright 650 nm laser aiming dot - Delivers clearly visible line for more accurate scanning
  • Bright LED and beeper with adjustable volume - Ensure positive user feedback in noisy environments with multiple modes of confirmation, so employees don't waste time trying to determine if a scan has been completed
  • Cordless scanning - Enables real-time barcode data collection unrestricted by a cable, reducing repairs made necessary by cable failure
  • Flash memory - Simplifies updates and customization of product in the field
  • High-performance scanner with fuzzy logic decode capability - Quickly and accurately scans all 1D barcodes on the first scan, including poorly printed, dirty, damaged or low-contrast barcodes
  • IP65-rated seal (electronic enclosure) - Protects against water and dust to ensure reliable performance in harsh industrial conditions, reducing unplanned downtime because of equipment failure
  • Multi-point communication - Four scanners communicate to a single cradle for increased productivity
  • Multiple on-board interfaces - Ensures flexible connectivity with different hosts, enabling you to maximize use of your existing technology
  • Rugged design withstands multiple 6.5-ft. (2-m) drops to concrete, 2,500 3.5-ft. (1-m) tumbles (5,000 hits) - Ensures maximum reliability with less downtime resulting from accidental drops.
  • Simplifies updates and customization of product in the field - Allows for easy replacement and upgrades
  • Supports reduced space symbologies (RSS) - Ensures compatibility with emerging symbologies to protect your hardware investment

Additional Information

Manufacturer Symbol

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS Variants
    • RSS
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS Variants
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.25"@5 mil
    • 2" - 15.75"@7.50 mil
    • 1" - 24"@13 mil - 100% UPC
    • 0 mil - 39.50"@20 mil - 80% MRD
    • 0 mil - 26.50"@20 mil - 31% MRD
    • 2" - 67"@40 mil
    • 4" - 84"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-FZ
  • Product Name: Symbol LS3478-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • LS3478-FZ Barcode Reader
    • Radio/charging Cradle
    • 7ft straight RS-232 Cable
    • Universal AC power supply
    • LS3478-FZ Barcode Reader
    • Radio/charging Cradle
    • 7ft straight RS-232 Cable
    • Universal AC power supply
  • Certifications & Standards:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
