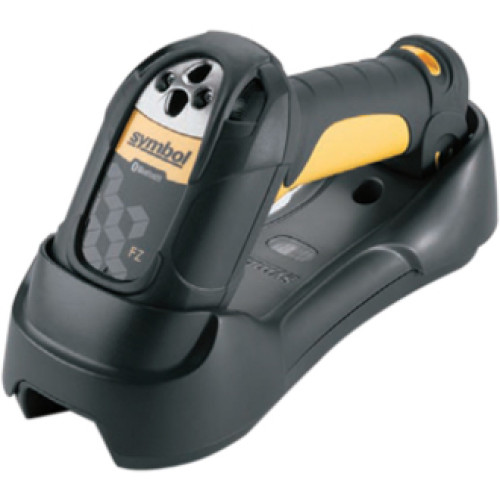

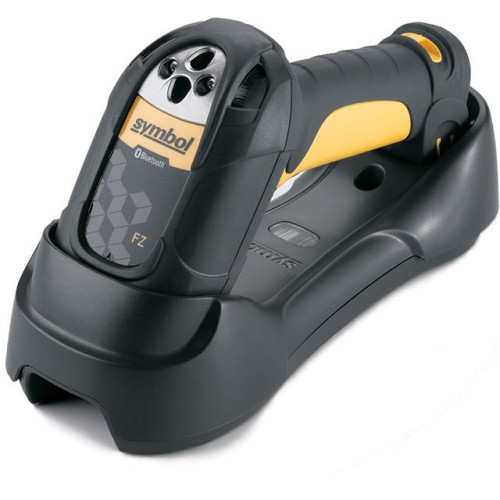

Symbol LS3578-FZ Barcode Scanner Part # LS3578-FZBU01000R

Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D barcode, even when the barcode is dirty or damaged. Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.

LS3578-FZBU01000R - Symbol LS3578-FZ Bar code Scanner

Part Details: LS3578-FZ, USB Kit, 1D Laser, Cordless, Fuzzy Logic. Includes Charging and Communications Cradle and USB cable. Requires power supply and line cord. See accessories.
New

Additional Information

Color Yellow
Communication Type Bluetooth
Connectivity Cordless
Form Factor Handheld
Included Cables USB
Manufacturer Symbol
Model Name LS3578-FZ
Product Condition New
Ruggedness Rugged
Scanner Capability 1D
Scanner Type Laser

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Supported Symbologies:
    • UPC.EAN
    • UPC.EAN with Supplemental
    • GS1-128 (formerly UCC/EAN 128)
    • JAN 8 & 13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 Trioptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • GS1DataBar (formerly RSS)
    • Supported Symbologies:
    • UPC.EAN
    • UPC.EAN with Supplemental
    • GS1-128 (formerly UCC/EAN 128)
    • JAN 8 & 13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 Trioptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • GS1DataBar (formerly RSS)
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.25"@5 mil - Code 39
    • 2" - 15.75"@7.50 mil - Code 39
    • 1" - 24"@13 mil - 100% UPC
    • 0 mil - 39.50"@20 mil - Code 39
    • 2" - 67"@40 mil - Code 39
    • 4" - 84"@55 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3578-FZ
  • Product Name: Symbol LS3578-FZ Handheld Barcode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Extended Details
