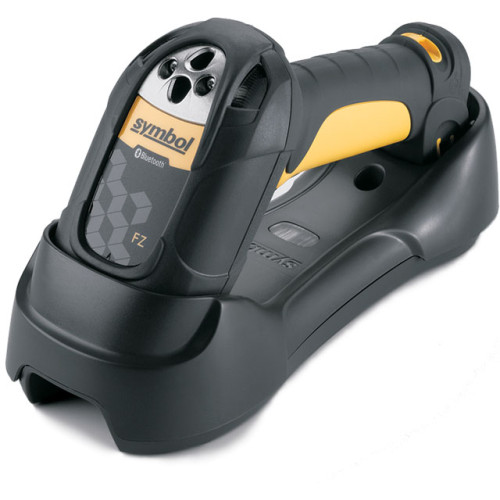

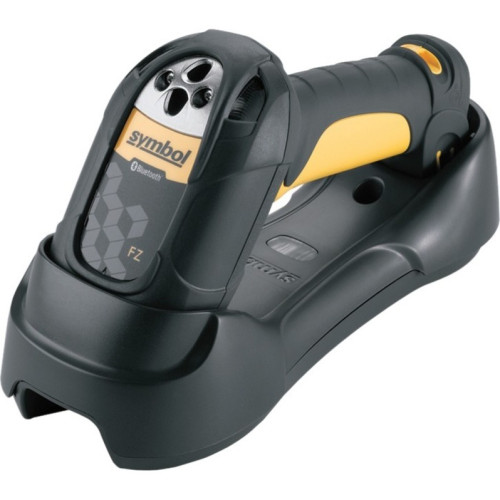

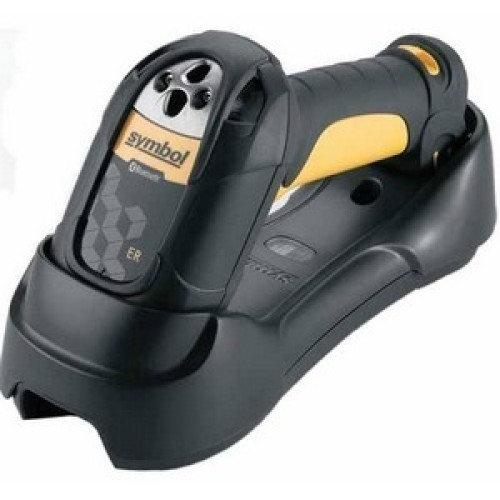

Symbol LS3578-FZ Barcode Scanner Part # LS3578-FZBU0100UR

Designed to meet the challenges of harsh manufacturing environments, the Symbol LS3578-FZ features fuzzy logic technology which allows first pass reads of nearly any 1D barcode, even when the barcode is dirty or damaged. Reliable and secure wireless data transmission between the scanner and host is guaranteed with integrated Bluetooth, while the 150 ft. (45 m) range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.

LS3578-FZBU0100UR - Symbol LS3578-FZ Bar code Scanner

Part Details: LS3578-FZ, USB Kit, 1D Laser, Cordless, Fuzzy Logic. Includes Charging and Communications Cradle, 7' straight USB cable, Power supply, and Line Cord.

New

Need a different version of the Symbol LS3578-FZ Scanner? View all 14 configurations

Additional Information

Color	Yellow
Communication Range	less than 33 ft
Communication Type	Bluetooth
Connection	USB
Connectivity	Cordless
Form Factor	Handheld
Included Cables	USB
Manufacturer	Symbol
Model Name	LS3578-FZ
Product Condition	New
Ruggedness	Rugged
Scan Pattern	Single Line
Scanner Capability	1D
Scanner Type	Laser

Symbol LS3578-FZ Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Rate: 36 scan/s
Connectivity Technology: Wireless
Scanning Distance: 147.64 ft
Light Source: Laser
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
Maximum Scan Resolution: 5 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS3578-FZ
Product Name: Symbol LS3578-FZ Barcode Reader
Product Line: Symbol

Physical Characteristics

Color:
- Black
- Yellow
Weight (Approximate): 14.60 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Symbol LS3578-FZ Rugged Barcode Reader
- Cradle
- 7 ft. Straight USB Cable
- Universal Power Supply
- US AC Line Cord
- Symbol LS3578-FZ Rugged Barcode Reader
- Cradle
- 7 ft. Straight USB Cable
- Universal Power Supply
- US AC Line Cord
Certifications & Standards:
- IP65
- RoHS Compliant
- Radio EN 300 328
- Input Transient Protection:
- IEC 1000-4-2
- IEC 1000-4-3
- IEC 1000-4-4
- IEC 1000-4-5
- IEC 1000-4-6
- IEC 1000-4-11
- EMI/RFI:
- EN 301 489-1
- EN 301 489-17
- IEC 60601-1-2
- EN 55022, EN 55024
- EN 61000-3-2
- EN 61000-3-3
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Japan VCCI/MITI/Dentori
- Laser Safety:
- IEC825-1 Class 2
- EN 60825-1
- IEC 60825-1
- 21CFR1040.10
- Electrical Safety:
- UL 60950-1
- C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- RF Exposure:
- EN 50360
- EN 50361
- FCC Part 2
- OET Bulletin 65
- RSS102
Additional Information:
- Supported Interfaces:
- SerialKeyboard WedgeIBM 468X/469XUSBSynapse

Power Description

Input Voltage: 14 V DC
Power Source: Battery

Warranty

Limited Warranty: 3 Year

Network & Communication

Bluetooth: Yes

Extended Details
