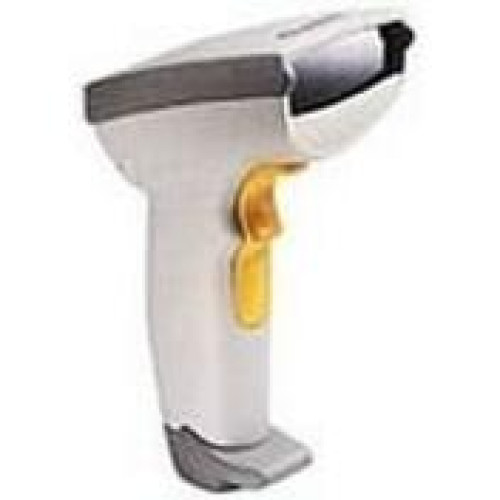

Symbol LS4004 i Barcode Scanner
Part #: LS4004I-I100-7700Z | SKU: SYM16253

For superior barcode scanning performance and maximum user comfort at a highly attractive price the LS4004 i Series from Symbol Technologies establishes a new standard of excellence. LS4004 i scanners inherit the leadership legacy of Symbol's best-selling handheld laser scanners. Symbol has leveraged its in-depth capabilities for innovation design and advanced technology to set the LS4004 i apart from anything else on the market.

Symbol LS4004 i Barcode Scanner

Part Details: LS4004 i, 1D/PDF417, 9-Foot Coiled Synapse Adapter Cable-25-16458-20 and Product Reference Guide-25-16458-20.

Need a different version of the Symbol LS4004 i Barcode Scanner? View all 12 configurations

Additional Information

Manufacturer	Symbol
Model Name	LS4004 i
Scanner Capability	1D

Symbol LS4004 i Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC/EAN
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- Code 93
- Codabar
- Interleaved 2 of 5
- Code 128
- Discrete 2 of 5
- UCC/EAN 128
- MSI/PLESSEY
- Bookland EAN
- PDF 417
- UPC/EAN Supplementals
- UPC/EAN
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- Code 93
- Codabar
- Interleaved 2 of 5
- Code 128
- Discrete 2 of 5
- UCC/EAN 128
- MSI/PLESSEY
- Bookland EAN
- PDF 417
- UPC/EAN Supplementals
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1" - 4.75"@5 mil
- 0 mil - 16"@ - 100% UPC/EAN
- 1" - 26"@20 mil
- 0.50" - 9"@7.50 mil
- 3" - 45"@55 mil
- 1" - 5"@6.60 mil - PDF417
- 2" - 15"@15 mil - PDF417

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS 4000i
Product Name: Symbol LS 4004i Barcode Reader

Physical Characteristics

Height: 6.3"
Width: 5"
Depth: 2.8"
Weight (Approximate): 6 oz

Interfaces/Ports

Host Interface: Serial

Other

Package Contents:
- Symbol LS 4004i Barcode Reader
- Synapse Cable Assy (25-16458-20)
- Product Reference Guide (70-37898-03)
- Symbol LS 4004i Barcode Reader
- Synapse Cable Assy (25-16458-20)
- Product Reference Guide (70-37898-03)
Certifications & Standards:
- Electrical Safety:
- Certified to UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- Laser Safety:
- CDRH Class II
- IEC Class 2
- EMI/RFI:
- FCC Part 15 Class A
- ICES-003 Class A
- European Union EMC Directive
- Australian SMA
Platform Supported: PC
Additional Information:
- Roll (Skew): +/- 25°
- Pitch: +/- 55°
- Yaw: +/- 55°

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC
