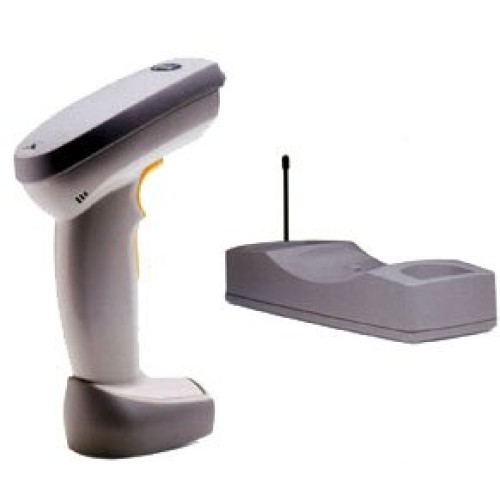

Symbol LS 4074 Barcode Scanner
Part #: LS4074-I3US-7750 | SKU: SYM9538

The LS 4074 scanner from Symbol Technologies offers cableless scanning operation for greater flexibility mobility and user friendliness. Ergonomically designed with the operator in mind the LS 4074 also provides excellent scanning performance superior to competitive corded scanners. Plus it's a member of Symbol's LS 4000 family of high-performance scanners. Also available with Reduced Space Symbology (RSS).

Symbol LS 4074 Barcode Scanner

Part Details: LS 4074, 916 MHz. RSS Includes RL474 base, USB cable & AC adapter.

Need a different version of the Symbol LS 4074 Barcode Scanner? View all 5 configurations

Additional Information

Manufacturer	Symbol
Model Name	LS 4074
Scanner Capability	1D

Symbol LS 4074 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- UPC/EAN
- Codabar
- Code 39 Full ASCII
- Code 128
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI/PLESSEY
- RSS
Scanner Type: Laser
Scan Rate: 36 Scans/sec
Interface Connectivity: Cordless
Cordless Range: 3m
Scan Pattern: Bi-directional
Power Supply: External Included
Depth of Field:
- 3 - 45"@55mils
- 1 - 4.75"@5mils
- 0.5 - 9"@7.5mils
- 0 - 11" - 80% UPC/EAN
- 0 - 16" - 100% UPC/EAN
- 1 - 26"@20mils
- 2 - 35"@40mils

General Information

Manufacturer: Symbol
Product Line: LS 4000i
Product Name: LS 4074 Cordless Barcode Scanner

Physical Characteristics

Weight: 10.23 oz

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95%

Other

Package Contents:
- LS 4074 Cordless Barcode Scanner
- USB Series A Synapse Cable
Cables Included: USB

Agency Approvals

Agency Approvals: VDE

Warranty

Manufacturer Warranty: 5 Year(s)

Extended Details
