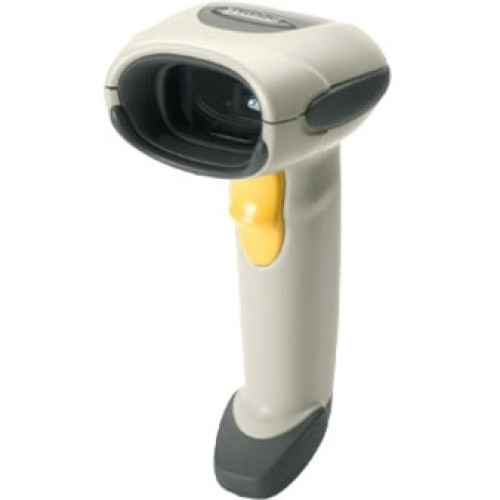

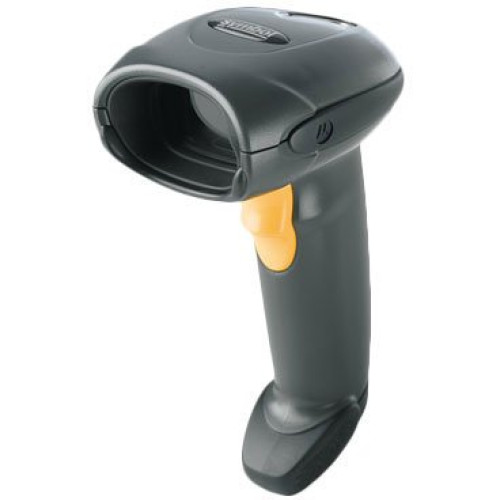

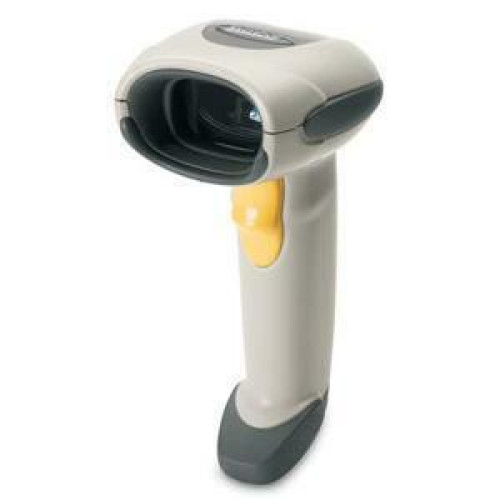

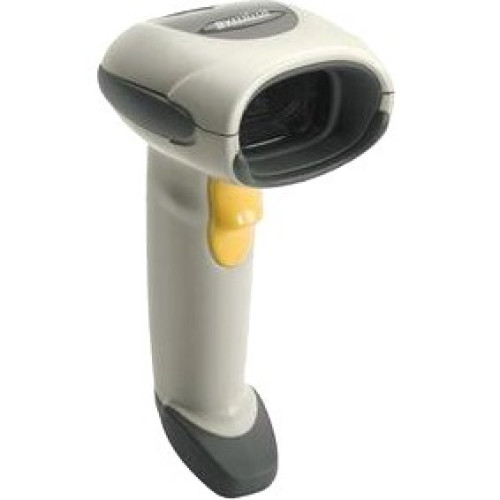

Symbol LS4208 Barcode Scanner
Part #: LS4208-PBZU0100ZR | SKU: SYM37740

The Motorola LS4208 handheld laser barcode scanner is able to effortlessly speed throughput, even with barcodes in poor condition. Wherever there's a need to quickly capture and process data - such as at the retail checkout counter, in pharmacies and hospitals, and in light warehouse environments - the ergonomically designed LS4208 scanner helps increase accuracy, improve productivity, cut maintenance costs and reduce downtime. The Motorola LS4208 is not only able to provide next-generation technology today, but can also meet your needs even as they change. The scanner's multiple interfaces (including USB, RS232 and keyboard wedge) and universal cables help connect it to a variety of hosts, allowing easy system updates. And since the LS4208 is designed for the newest and emerging 1D Motorola ogies such as RSS barcodes, it will perform well for all scanning requirements well into the future.

Symbol LS4208 Barcode Scanner

Part Details: LS4208, USB Kit, 1D Laser, PDF417 decoding capability. Includes USB cable. Color: Black

Additional Information

Color Black
Connection USB
Connectivity Corded
Form Factor Handheld
Included Cables USB
Manufacturer Symbol
Model Name LS4208
Ruggedness General Purpose
Scanner Capability 1D
Scanner Type CCD, Imager, LED Beam

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: 2D Raster
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Micro PDF
    • Composite Codes
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Micro PDF
    • Composite Codes
  • Maximum Scan Resolution: 20 mil
  • Depth of Field:
    • 1.50" - 5.50"@5 mil - Code 39
    • 0 mil - 14"@10 mil - Code 39
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 0 mil - 29"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS4208
  • Product Name: Symbol LS 4208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS 4208 Barcode Reader
    • 7ft USB Type A Straight Cable
    • Symbol LS 4208 Barcode Reader
    • 7ft USB Type A Straight Cable
  • Certifications & Standards:
    • Electrical safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • USB
    • Wand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details
