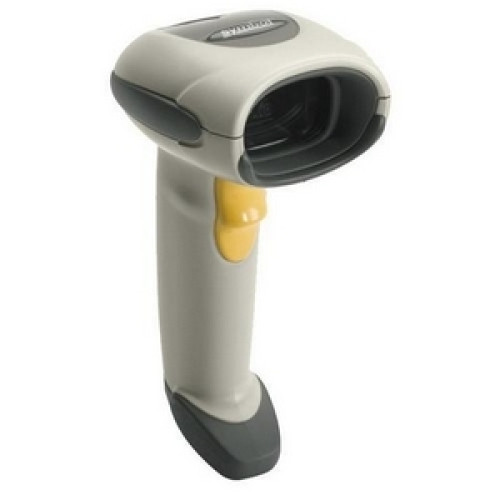

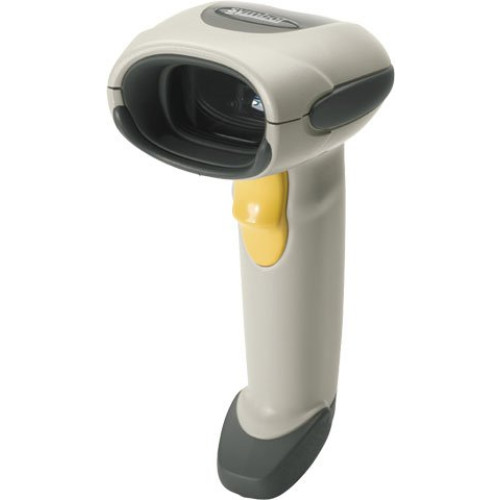

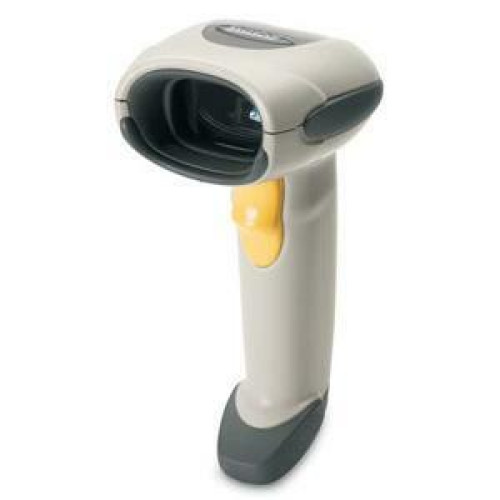

Symbol LS4208 Barcode Scanner
Part #: LS4208-SWZR0100A | SKU: SYM16997

The Motorola LS4208 handheld laser barcode scanner is able to effortlessly speed throughput, even with barcodes in poor condition. Wherever there's a need to quickly capture and process data - such as at the retail checkout counter, in pharmacies and hospitals, and in light warehouse environments - the ergonomically designed LS4208 scanner helps increase accuracy, improve productivity, cut maintenance costs and reduce downtime. The Motorola LS4208 is not only able to provide next-generation technology today, but can also meet your needs even as they change. The scanner's multiple interfaces (including USB, RS232 and keyboard wedge) and universal cables help connect it to a variety of hosts, allowing easy system updates. And since the LS4208 is designed for the newest and emerging 1D Motorola ogies such as RSS barcodes, it will perform well for all scanning requirements well into the future.

Symbol LS4208 Barcode Scanner

Part Details: LS4208, RS-232 Kit: Includes scanner, RS-232-DB9F 7 ft. straight cable and US (110 VAC) Power supply. Color: White.

Additional Information

Manufacturer Symbol
Model Name LS4208
Scanner Capability 1D

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D
  • Symbologies Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Scanner Type: Laser
  • Scan Rate: 200 decodes / second
  • Interface Options:
    • RS-232 - Standard, Nixdorf, ICL, & Fujitsu
    • IBM 468X/469X
    • Keyboard Wedge
    • USB - Standard, IBM SurePOS, Macintosh
    • Wand Emulation
  • Interface Connectivity: Corded
  • Scan Pattern: 2-D Raster
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 1.5 - 5.5"@5mils - Code 39
    • 0 - 14"@10mils - Code 39
    • 0 - 19"@13mils - 100% UPC/EAN
    • 0 - 29"@20mils - Code 39

General Information

  • Manufacturer: Symbol
  • Product Name: LS4208 Barcode Scanner

Physical Characteristics

  • Dimensions: 6.7" (170.18mm) x 2.7" (68.58mm) x 3.7" (93.98mm)
  • Weight: 6.4 oz - Approximately
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Other

  • Package Contents:
    • LS4208 Barcode Scanner
    • 7ft RS-232 DB-9 Female Straight Cable
    • 110 VAC Power Supply
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 158°F (70°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
