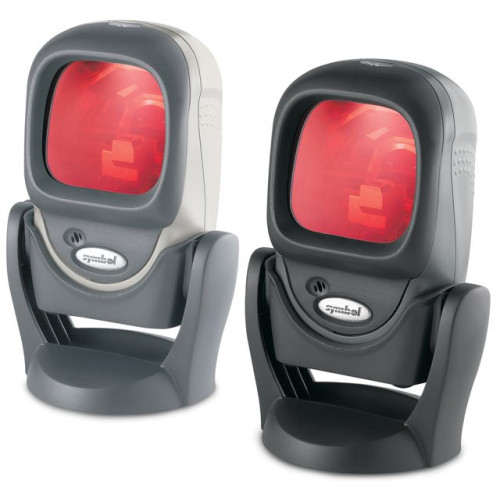

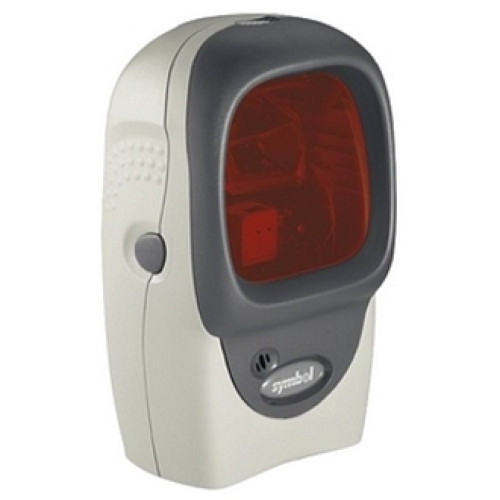

Symbol LS 9208 Barcode Scanner
Part #: LS9208-SR10007NNWW | SKU: SYM16273

The LS 9208 from Symbol Technologies serves as a presentation scanner and provides a high performance processor with an innovative 100-line rastering omnidirectional scan pattern for greater productivity at checkout, and increasing customer satisfaction. Created to be quick and versatile, the LS 9208 offers both omni-directional and single-line scanning to cover any application. The LS 9208 also supports Electronic Article Surveillance (EAS) for added security and convenience. Additionally, an adjustable multimount stand is included for greater adaptation in a variety of environments and is especially good at reading reduced space symbology (RSS) Best of all, it includes a 3 year warranty.

Symbol LS 9208 Barcode Scanner

Part Details: LS 9208, Scanner with Quick Reference Guide and No Adjustable Stand. Color: Twilight Black.

Need a different version of the Symbol LS 9208 Barcode Scanner? View all 9 configurations

Additional Information

Manufacturer	Symbol
Model Name	LS 9208
Scanner Capability	1D

Symbol LS 9208 Specs (pdf)

Technical Information

Form Factor: Presentation Scanner
Resolution: 5 mil(s)
Symbologies Supported:
- UPC/EAN/JAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- Code 128
- ISBT 128
- Code 39
- Trioptic Code 39
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- Code 11
- Codabar
- MSI
- RSS Variants
Scanner Type: Laser
Scan Rate:
- 1500 Scans/sec (Omnidirectional)
- 75 Scans/sec (Single scan line)
Interface Options:
- USB
- RS-232
- IBM 468X/469X
- Keyboard Wedge
- Wand
- Synapse
Interface Connectivity: Corded
Scan Pattern:
- Single Line
- Omnidirectional
Input Voltage: 5 V DC
Depth of Field:
- 1 - 2.5"@5mils - 38 %
- 0 - 6"@7.8mils - 60 %
- 0 - 7.5"@10.4mils - 80 %
- 0 - 9"@13mils - 100 % UPC

General Information

Manufacturer: Symbol
Product Name: LS9208 Barcode Scanner

Physical Characteristics

Dimensions: 5.51" (139.95mm) x 3.49" (88.65mm) x 2.96" (75.18mm) - Scanner only
Weight: 10.2 oz - Scanner only
Color: Black

Agency Approvals

Agency Approvals:
- UL 1950
- CSA C22.2 No. 950 EN60825
- CDRH Class IIa Laser Product
- IEC 60825 Class 1 Laser Product
- CISPR B
- FCC B

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Other

Package Contents:
- LS9208 Barcode Scanner
- Quick Reference Guide

Warranty

Manufacturer Warranty: 30 Month(s)
