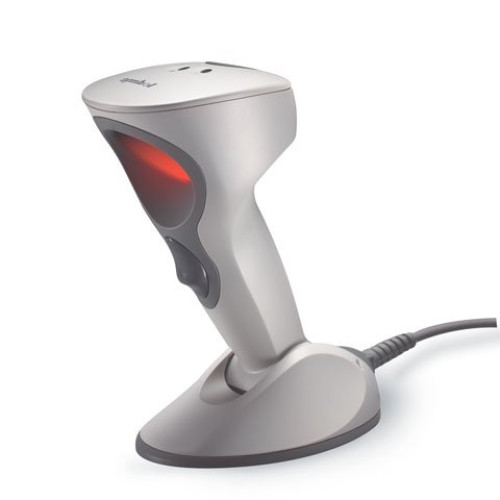

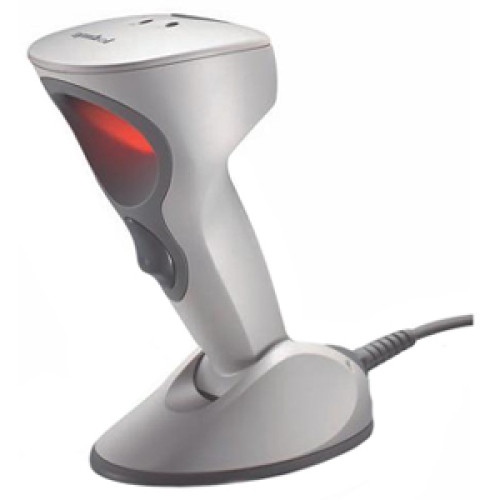

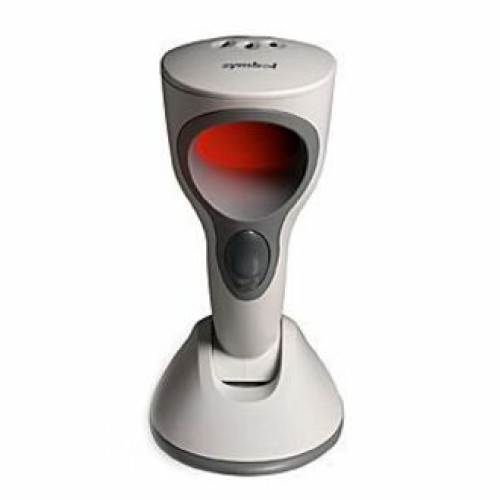

M2005-I400-0500ZNR - Symbol M2005 Cyclone Bar code Scanner

M2005 Cyclone, Adaptive Scanner (IBM Port 9B Coil Cable) - Color: Pearl White
InStock
Free Shipping

Description

A smart investment Symbol's innovative new scanner is future-ready now. The M2005 Cyclone scanner decodes existing new and emerging bar code symbologies instantly. The M2005 Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical the M2005 Cyclone's sleek design complements any store's decor. Large merchandise or small single or multiple bar code types this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive M2005 Cyclone Scanner Series from Symbol Technologies a standout for bar code scanning at point of sale.
  • Built-in, adjustable stand - Operators adjust the Cyclone to their preference to optimize efficiency for maximum throughput
  • Cyclone uses the latest, brightest visible laser diode technology - Scanner is easy to aim, even in brightest sunlight
  • Handheld or hands-free operation - Operators can scan heavy and bulky items without lifting them onto the checkstand, scan smaller items without lifting the scanner
  • Reads 1-D, 2-D, and Composite UCC/EAN and RSS barcode symbologies - Capture more data and future-proof your investment
  • Scan pattern switches and mode indicator LEDs are top-mounted for easy viewing - Switching scan patterns is easy and convenient for operations with a mix of applications, barcodes and merchandise

Additional Information

Manufacturer Symbol

Technical Information

  • Form Factor: Presentation Scanner
  • Barcode Dimension: 1D/2D
  • Resolution:
    • 6.6 mil(s) - Raster/Single Line
    • 5.5 mil(s) - Omni-directional
  • Symbologies Supported:
    • UPC/EAN/JAN
    • NW7
    • Code 128
    • Code 39 Full ASCII
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • UCC/EAN
    • Codabar
    • PDF 417
    • RSS
  • Scanner Type: Laser
  • Interface Options:
    • IBM 46XX
    • Synapse
  • Interface Connectivity: Corded
  • Scan Pattern:
    • Single Line
    • 2-D Raster
    • Omnidirectional
    • Semi-omni-directional
  • Input Voltage: 5.2 V DC
  • Depth of Field:
    • 0 - 2"@6mils - Code 39 (Omni Zone)
    • 0 - 5.3" - 80 % UPC (Omni Zone)
    • 0.3 - 11" - 100 % UPC (Omni Zone)
    • 0.5 - 12"@20mils - Code 39 (Omni Zone)

General Information

  • Manufacturer: Motorola
  • Product Line: Cyclone
  • Product Name: Cyclone M2005 Barcode Scanner

Physical Characteristics

  • Dimensions: 3.4" (86.36mm) x 7.8" (198.12mm) x 5.4" (137.16mm)
  • Weight: 12 oz
  • Color: White

Agency Approvals

  • Agency Approvals:
    • RoHS Compliant
    • Certified to UL 1950
    • CSA C22.2 No. 950 EN60950/IEC950
    • Australian SMA
    • ICES-003 Class B
    • FCC Part 15 Class B
    • European Union EMC Directive
    • IEC Class 2
    • CDRH Class ll

Other

  • Package Contents:
    • Cyclone M2005 Barcode Scanner
    • IBM 468X/9X Port 9B (8.5ft. Coiled) Cable
  • Cables Included: IBM 468X/469X

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
