Additional Information
| Manufacturer | Symbol |
|---|---|
| Model Name | M2004 Cyclone |
| Scanner Capability | 1D |

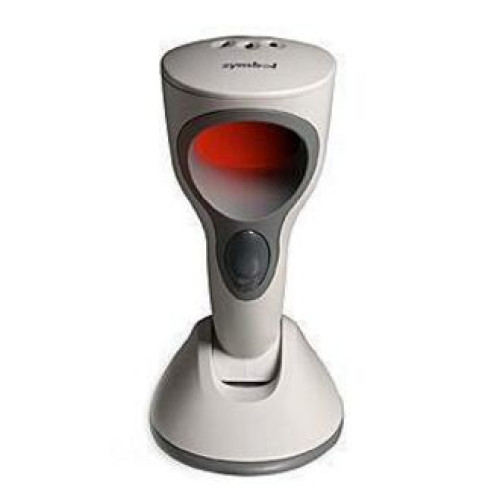

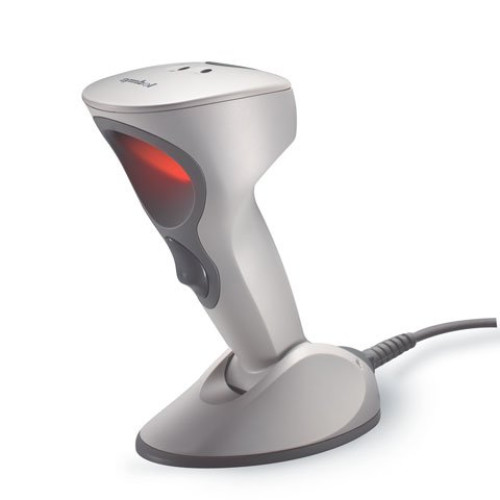

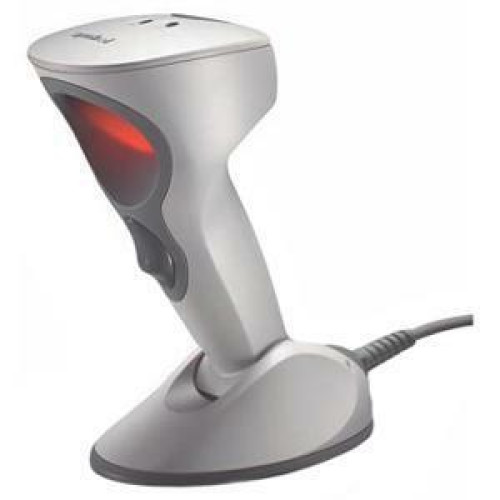

Symbol M2004 Cyclone Specs
Technical Information
- Form Factor: Presentation Scanner
- Barcode Dimension: 1D/2D
- Resolution:
- 6.6 mil(s) - Raster/Single Line
- 5.5 mil(s) - Omni-directional
- Symbologies Supported:
- UPC/EAN/JAN
- NW7
- Code 128
- Code 39 Full ASCII
- MSI/PLESSEY
- Interleaved 2 of 5
- Discrete 2 of 5
- UCC/EAN
- Codabar
- PDF 417
- RSS
- Scanner Type: Laser
- Interface Options: IBM 46XX - with EAS
- Interface Connectivity: Corded
- Scan Pattern:
- Linear
- 2-D Raster
- Omnidirectional
- Semi-omni-directional
- Input Voltage: 5.2 V DC
- Depth of Field:
- 0 - 2"@6mils - Code 39 (Omni Zone)
- 0 - 5.3" - 80 % UPC (Omni Zone)
- 0.3 - 11" - 100 % UPC (Omni Zone)
- 0.5 - 12"@20mils - Code 39 (Omni Zone)
General Information
- Manufacturer: Motorola
- Product Line: Cyclone
- Product Name: Cyclone M2005 Barcode Scanner
Physical Characteristics
- Dimensions: 3.4" (86.36mm) x 7.8" (198.12mm) x 5.4" (137.16mm)
- Weight: 12 oz
- Color: Black
Agency Approvals
- Agency Approvals:
- RoHS Compliant
- Certified to UL 1950
- CSA C22.2 No. 950 EN60950/IEC950
- Australian SMA
- ICES-003 Class B
- FCC Part 15 Class B
- European Union EMC Directive
- IEC Class 2
- CDRH Class ll
Environmental Conditions
- Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- -40°F (-40°C) to 140°F (60°C) Storage
- Humidity: 5 to 95% Non-condensing
Warranty
- Manufacturer Warranty: 3 Year(s)
