| Manufacturer | Symbol |
|---|---|
| Model Name | M2007 Cyclone |
| Scanner Capability | 1D |

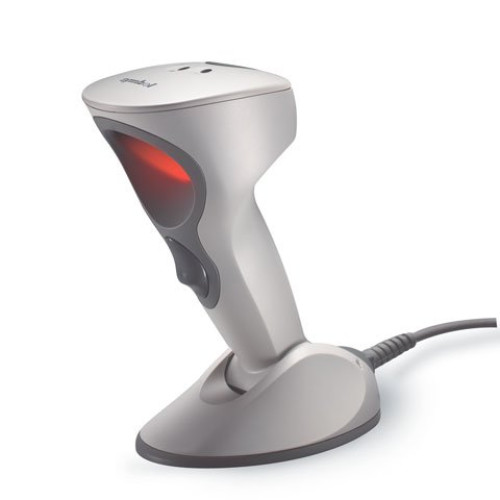

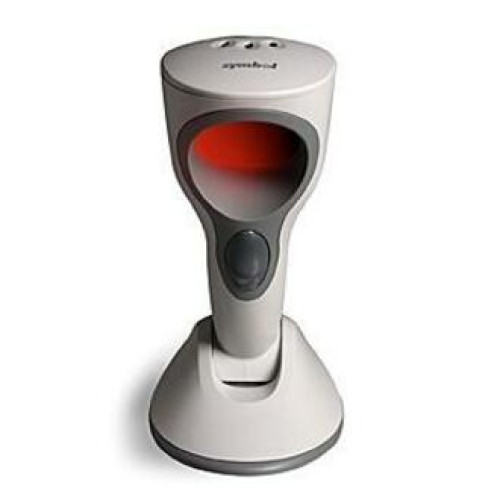

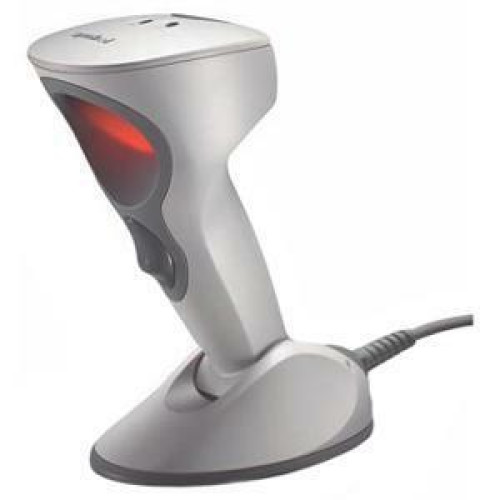

Symbol M2007 Cyclone Specs
Technical Information
- Form Factor: Handheld Scanner
- Barcode Dimension: 1D/2D
- Resolution: 5.5 mil(s)
- Symbologies Supported:
- UPC/EAN/JAN
- NW7
- Code 128
- Code 39 Full ASCII
- MSI/PLESSEY
- Interleaved 2 of 5
- Discrete 2 of 5
- UCC/EAN 128
- Codabar
- PDF 417
- UCC/EAN
- RSS Code
- Scanner Type: Laser
- Interface Options: USB
- Interface Connectivity: Corded
- Scan Pattern:
- Single Line
- Omnidirectional
- Depth of Field:
- 0 - 2.0"@6mils - Code 39
- 0.3 - 11" - 100% UPC
- 0.5 - 12"@20mils - Code 39
General Information
- Manufacturer: Symbol
- Product Line: Cyclone
- Product Name: Cyclone M2007 Barcode Scanner
Physical Characteristics
- Dimensions: 3.4" (86.36mm) x 7.8" (198.12mm) x 5.4" (137.16mm)
- Weight: 12 oz
- Color: White
Agency Approvals
- Agency Approvals:
- Certified to UL 1950
- CSA C22.2 No. 950 EN60950/IEC950
- FCC Part 15 Class B ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- CDRH Class ll
- IEC Class 2
Other
- Package Contents:
- Cyclone M2007 Barcode Scanner
- USB Series A Conn. (6ft. Straight) Cable (25-53492-22)
- Cables Included: USB
Environmental Conditions
- Temperature:
- 0°C (32°F) to 40°C (104°F) Operating
- -40°C (-40°F) to 60°C (140°F) Storage
- Humidity: 5 to 95%
Warranty
- Manufacturer Warranty: 3 Year(s)
