Additional Information
| Display Resolution | 240 x 320 |
|---|---|
| Keypad | 4 Keys |
| Manufacturer | Symbol |
| Model Name | MC50 |
| Operating System | Windows Mobile, Windows Mobile 2003 Second Edition |
| Operating Temperature | 32 F - 155 F (0 C - 68.33 C) |
| Processor | Marvell PXA270 (520 MHz) |
| RAM Memory | 64 MB |
| Scanner Capability | 2D |
| Scanner Type | Imager |
| Style | Phone-size |

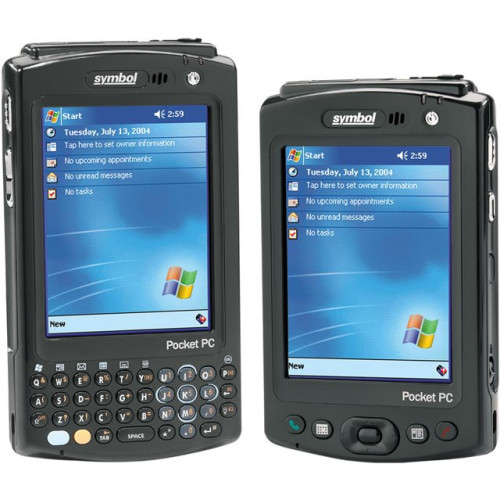

Symbol MC50 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 36" To Tile Over Concrete
- Barcode Symbology Supported:
- Australian 4-State
- Canadian 4 State
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Composite AB
- Composite C
- Coupon Code
- Data Matrix
- Discrete 2 of 5
- Dutch Kix
- EAN-8
- EAN-13
- Interleaved 2 of 5
- Japanese 4-State
- Macro PDF-417
- Micro PDF-417
- Macro Micro PDF-417
- Maxi Code
- MSI
- PDF 417
- QR Code
- RSS-Expanded
- RSS-Limited
- RSS-14
- TLC39
- Trioptic Code 39
- UK 4-State
- UPC/EAN Supplementals
- UPC-A
- UPC-E
- U.S. Planet
- U.S. Postnet
- Webcode
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC5040
- Product Name: MC5040 Mobile Computer
Physical Characteristics
- Height: 4.8"
- Width: 3"
- Length: 1.1"
- Weight (Approximate): 7.20 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC5040 Mobile Computer
- Two Battery
- Hand Strap
- Stylus
- Soft case
- MC5040 Mobile Computer
- Two Battery
- Hand Strap
- Stylus
- Soft case
- Certifications & Standards:
- Electrical Safety:
- UL60950 (UL Marking)
- CSA C22.2 No. 60950 (c-UL Marking)
- EN60950/IEC 950
- EMI/RFI:
- EU/International
- EN 301 489-1, -17
- EN61000-4-2: 1995, ESD ±8kV Air/ ±4kV Contact
- EN61000-4-3: 1997, Radiated Immunity 3V/m
- EN61000-4-4: 1995, EFT ± 0.5kV
- EN61000-4-5: 1995, Surge ± 0.5kV
- EN61000-4-6: 1
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
- Additional Information: Keys: Nav/PIM
Network & Communication
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11b
- Wireless Security:
- Airbeam Safe (VPN)
- CCX
- EAP-TLS
- FIPS 140-2
- Kerberos
- KeyGuard - (SBL TKIP)
- LEAP
- PEAP
- TKIP
- WEP 128 bit
- WPA Home (PSK)
- WPA Enterprise (EAP Authenticated)
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: QVGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 240 x 320
Memory
- Flash Memory: 64 MB
- Standard Memory: 64 MB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital (SD) Card
Battery Information
- Battery Capacity: 3600 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 520 MHz
- Processor Type: XScale
Keyboard/Keypad
- Number of Keys: 4
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Windows Mobile 2003 Second Edition
I/O Expansions
- Expansion Slot Type: SDIO
