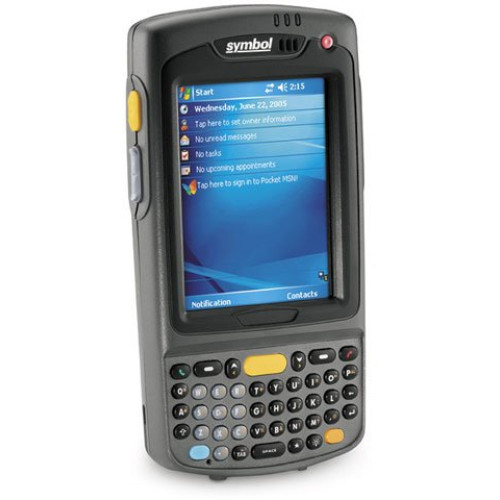

MC7004-PUCDJQHA70R - Symbol MC70 Handheld Computer

MC70, GSM/EDGE/eGPRS, 1D Laser-SE950, Generic GSM Carrier Support, Color QVGA Display, 64MB/128MB, QWERTY Keypad, Windows Mobile 5.0.0 Phone Edition, Bluetooth, 1X Battery
InStock
Free Shipping

Description

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.
  • WLAN: 802.11a/b/g tri-mode radio, comprehensive VoIP support - Cost-effective voice and data connectivity in the office
  • Multiple keyboard options: QWERTY or numeric - Flexibility to meet diverse user and application needs
  • On-board advanced data capture: 1D and 2D barcode scanning from 4 in. to 40 in., image capture - Automate and error proof data collection and increase productivity
  • Intels latest processor, designed for mobility: XScale PXA270 at 624 MHz - Desktop-like multimedia performance with lower power requirements
  • Symbols industry-leading double impact testing (drop and tumble), IP54 sealing, integrated antennas - Lightweight yet rugged, built for year-round use in nearly any environment
  • 3.5 in. QVGA color screen - Easy to view in any lighting
  • Support for standard and extended cards - Provides additional memory and expandable functionality
  • High quality speakerphone, microphone and transducer - Superior voice quality and performance
  • Microsofts latest operating system: Windows Mobile 5.0 Premium or Phone Edition - Integrated multimedia, persistent memory and FIPS-140-2 security certification
  • WPAN: Bluetooth v1.2, Class II - Wireless modem, printing synchronization, and more
  • Multiple battery options: standard and extended - Ample power for full shifts in nearly any environment
  • WWAN: eGPRS/GSM Compatibility - Voice and high-speed wireless data

Additional Information

RAM Memory 64 MB
Operating System Windows Mobile
Style Phone-size
Network Connectivity 802.11a/b/g
Display Resolution 240 x 320
Scanner Type Imager
Data Collection Type Wireless
Manufacturer Symbol

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Phone Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Batch
  • Scanner Type: Laser
  • Symbologies Supported:
    • Codabar (NW7)
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UPC/EAN/JAN
    • UCC/EAN 128

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 44 Key QWERTY Integrated
  • Battery Capacity: 1900 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.5" (38mm) x 3" (76mm) x 6" (152mm)

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 68°C (154°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 4' To Concrete
    • 5' To Concrete 23°C
  • Tumble: 1000 1.6 ft./.5 m tumbles (2000 drops)

Other

  • Additional Information:
    • Communication Option: Audio Voice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
    • Communication Option: AudioVoice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
  • Package Contents:
    • MC70 Mobile Computer Lithium-Ion Battery Battery Cover Hand Strap Tethered Stylus Protective Overlay Regulatory Guide Quick Start Guide
    • MC70 Mobile ComputerLithium-Ion BatteryBattery CoverHand StrapTethered StylusProtective OverlayRegulatory GuideQuick Start Guide

Wireless Data Communications

  • Network Connectivity:
    • WWAN GSM/eGPRS (Quad Band 850/900/1800/1900 Mhz)
    • WPAN Bluetooth
  • Antenna Connectors: External

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL / cUL 60950-1
    • IEC / EN60950-1

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
