Newer Version Is Available

MC70, WLAN, 802.11a/b/g, GSM/EDGE/eGPRS, 1D Laser - SE950, Generic GSM Carrier, Color QVGA Display, 64MB/128MB, QWERTY Keypad, Windows Mobile 5.0.0 Phone Edition, Bluetooth, 2X Battery
Free Shipping

Product was successfully added to your shopping cart.
26410 Symbol

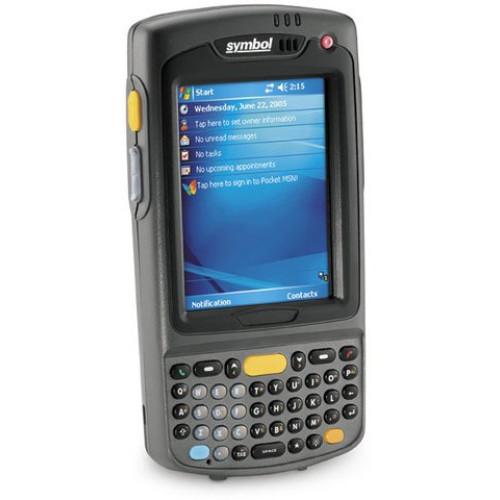

MC7004-PUCDJQHA80R - Symbol MC70 Handheld Computer

MC70, GSM/EDGE/eGPRS, 1D Laser-SE950, Generic GSM Carrier Support, Color QVGA Display, 64MB/128MB, QWERTY Keypad, Windows Mobile 5.0.0 Phone Edition, Bluetooth, 2X Battery
InStock
Free Shipping

Description

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.
  • WLAN: 802.11a/b/g tri-mode radio, comprehensive VoIP support - Cost-effective voice and data connectivity in the office
  • Multiple keyboard options: QWERTY or numeric - Flexibility to meet diverse user and application needs
  • On-board advanced data capture: 1D and 2D barcode scanning from 4 in. to 40 in., image capture - Automate and error proof data collection and increase productivity
  • Intels latest processor, designed for mobility: XScale PXA270 at 624 MHz - Desktop-like multimedia performance with lower power requirements
  • Symbols industry-leading double impact testing (drop and tumble), IP54 sealing, integrated antennas - Lightweight yet rugged, built for year-round use in nearly any environment
  • 3.5 in. QVGA color screen - Easy to view in any lighting
  • Support for standard and extended cards - Provides additional memory and expandable functionality
  • High quality speakerphone, microphone and transducer - Superior voice quality and performance
  • Microsofts latest operating system: Windows Mobile 5.0 Premium or Phone Edition - Integrated multimedia, persistent memory and FIPS-140-2 security certification
  • WPAN: Bluetooth v1.2, Class II - Wireless modem, printing synchronization, and more
  • Multiple battery options: standard and extended - Ample power for full shifts in nearly any environment
  • WWAN: eGPRS/GSM Compatibility - Voice and high-speed wireless data

Additional Information

RAM Memory 64 MB
Operating System Windows Mobile
Style Phone-size
Network Connectivity 802.11a/b/g
Display Resolution 240 x 320
Scanner Type Laser
Data Collection Type Wireless
Manufacturer Symbol

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC70
  • Product Name: MC70 Mobile Computer

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Drop Specification:
    • 48" To Concrete
    • 72" To Concrete73.4°F (23°C)

Physical Characteristics

  • Width: 3.1"
  • Depth: 1.5"
  • Length: 6"
  • Weight (Approximate): 11.20 oz

Network & Communication

  • Bluetooth: Yes
  • Cellular Network Supported: GSM
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP (40 or 128 bit)
    • WPA2

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Other

  • Additional Information:
    • Communication: Audio
    • Form Factor: EDA
    • Tumble Spec: 1,000 1.6 ft./.5 m tumbles (2,000 drops)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes

Battery Information

  • Battery Capacity: 3800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes

I/O Expansions

  • Expansion Slot Type: SDIO

Software

  • Operating System: Windows Mobile 5.0 Phone Edition
