30097 Symbol

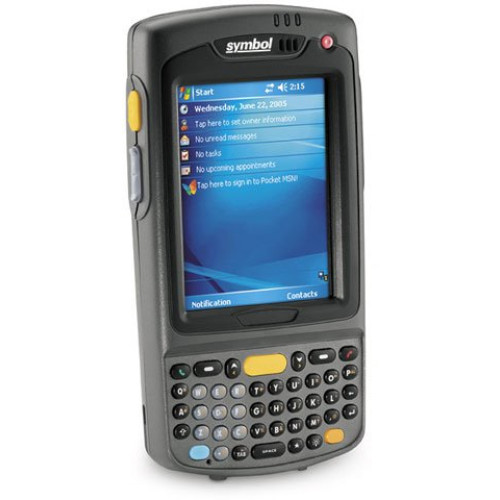

Symbol MC70 Hand Held Computer Part # MC7090-PU0DJRFA7WR

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.

MC7090-PU0DJRFA7WR - Symbol MC70 Handheld Computer

Part Details: MC70, WLAN 802.11a/b/g, 1D Laser-SE950, Color QVGA Display, 64MB/128MB, Numeric Keypad, Windows Mobile 5.0.0 Premium Edition, Bluetooth, 1X Battery

Additional Information

Data Collection Type Wireless
Display Resolution 240 x 320
Drop Rating 4 ft.1.2 m
IP Rating IP54
Keypad 15
Manufacturer Symbol
Network Connectivity 802.11a, 802.11a/b/g, 802.11g, Bluetooth
Operating System Windows Mobile, Windows Mobile 5.0 Premium
Operating Temperature 14 F - 122 F
Processor 624 MHz Intel XScale
Product Condition New
RAM Memory 64 MB
Scanner Capability 1D
Scanner Type Laser
Style Phone-size
  • WLAN: 802.11a/b/g tri-mode radio, comprehensive VoIP support - Cost-effective voice and data connectivity in the office
  • Multiple keyboard options: QWERTY or numeric - Flexibility to meet diverse user and application needs
  • On-board advanced data capture: 1D and 2D barcode scanning from 4 in. to 40 in., image capture - Automate and error proof data collection and increase productivity
  • Intels latest processor, designed for mobility: XScale PXA270 at 624 MHz - Desktop-like multimedia performance with lower power requirements
  • Symbols industry-leading double impact testing (drop and tumble), IP54 sealing, integrated antennas - Lightweight yet rugged, built for year-round use in nearly any environment
  • 3.5 in. QVGA color screen - Easy to view in any lighting
  • Support for standard and extended cards - Provides additional memory and expandable functionality
  • High quality speakerphone, microphone and transducer - Superior voice quality and performance
  • Microsofts latest operating system: Windows Mobile 5.0 Premium or Phone Edition - Integrated multimedia, persistent memory and FIPS-140-2 security certification
  • WPAN: Bluetooth v1.2, Class II - Wireless modem, printing synchronization, and more
  • Multiple battery options: standard and extended - Ample power for full shifts in nearly any environment
  • WWAN: eGPRS/GSM Compatibility - Voice and high-speed wireless data

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2
  • Scanner Type: Laser
  • Symbologies Supported:
    • Codabar (NW7)
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UCC/EAN 128

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 26 Key Numeric Integrated
  • Battery Capacity: 1900 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.5" (38mm) x 3" (76mm) x 6" (152mm)
  • Weight: 11.2 oz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 68°C (154°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 4' To Concrete
    • 5' To Concrete 23°C
  • Tumble: 1000 1.6 ft./.5 m tumbles (2000 drops)

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:
    • AS/NZ 2772.1

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz


  • Additional Information:
    • Communication Option: Audio Region: Worldwide Voice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
    • Communication Option: AudioRegion: WorldwideVoice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
  • Package Contents:
    • MC70 Mobile Computer Lithium-Ion Battery Battery Cover Hand Strap Tethered Stylus Protective Overlay Regulatory Guide Quick Start Guide
    • MC70 Mobile ComputerLithium-Ion BatteryBattery CoverHand StrapTethered StylusProtective OverlayRegulatory GuideQuick Start Guide


  • RAM Memory: 64MB
  • Flash Memory: 128MB


  • Manufacturer Warranty: 1 Year(s) Limited
