Additional Information
| Manufacturer | Symbol |
|---|---|
| Model Name | MC75A |

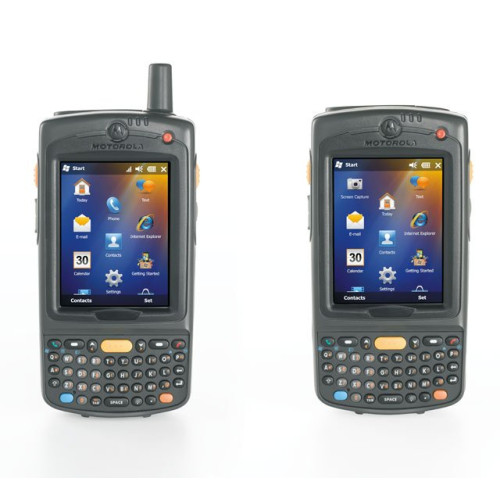

Symbol MC75A Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- 15 kV DC Air Discharge
- 8 kV DC Direct Discharge
- Drop Specification: 70.87"
- Barcode Symbology Supported:
- 1D
- 2D
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC75A0-HC
- Product Name: MC75A0-HC Handheld Terminal
Physical Characteristics
- Width: 3.3"
- Depth: 1.7"
- Length: 6"
- Weight (Approximate): 14.04 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC75A0-HC Handheld Terminal
- LI-Ion Battery
- MC75A0-HC Handheld Terminal
- LI-Ion Battery
- Certifications & Standards:
- MIL-STD 810G
- Wi-Fi-certified
- CCX v4 Certified
- FIPS 140-2 Certified
- Environmental Sealing:
- IP54
- EMI/RFI:
- FCC Part 15
- Class BCanada
- ICES 003 Class BEU
- EN55022 Class B
- EN301 489-1
- EN301 489-3
- EN301 489-7
- EN301 489-17
- EN301 489-24
- EN60601-1-2
- Electrical Safety:
- UL / cUL 60950-1
- EN 60950-1
- IEC 60950-1
- Laser Safety:
- EN 60825-1
- IEC 60825-1
- IEC Class2/FDA Class II
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65
- Supplement C
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2
- WEP (40 or 128 bit)
- TKIP
- TLS
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS (CHAP)
- TTLS-MD5
- TTLS-PAP
- PEAP-TLS
- PEAP (MS-CHAP v2)
- AES
- LEAP
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- microSD Card
- Secure Digital High Capacity (SDHC)
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: VGA
- Screen Size: 3.5"
- Display Color: Color
- Screen Resolution: 640 x 480
Processor & Chipset
- Processor Manufacturer: Marvell
- Processor Speed: 806 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 3600 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Windows Mobile 6.5
Keyboard/Keypad
- Keyboard Layout: QWERTY
