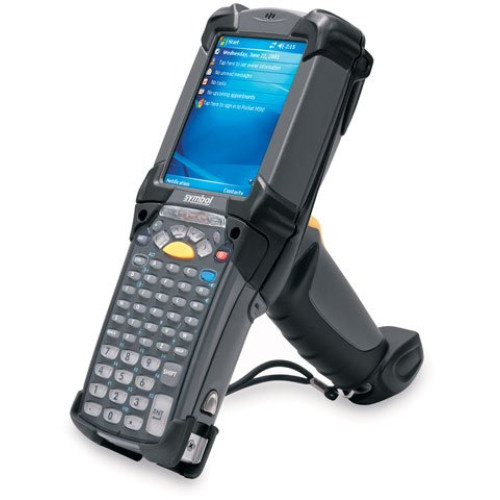

Symbol MC9090-G Mobile Computer
Part #: MC9090-GJ0HBFGA2WW | SKU: SYM20202

The MC9090-G rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the MC9090-G is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The MC9090-G with Bluetooth supports wireless printing and use of wireless headsets. Those with scan intensive applications such as price audits and inventory management will enjoy the comfort of the pistol grip handle. The MC9090-G gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy this single device in many business areas.

Symbol MC9090-G Mobile Computer

Part Details: MC9090-G, Wireless Gun Terminal: 802.11a/b/g, Extended Range Laser (Lorax), Color, 64MB, 43 key, Windows CE 5.0, Bluetooth

Additional Information

Display Resolution 240 x 320
IP Rating IP64
Interface Options Bluetooth, Wi-Fi.
Manufacturer AIDC Symbol
Model Name HT730
Operating System Windows CE 5.0
RAM Memory 64 MB
Scanner Type Laser
Style Gun

Technical Information

  • Operating System: Windows CE 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Laser Long Range - Lorax 1D
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Coupon Code
    • Discrete 2 of 5
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • Webcodes

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9090-G Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 43 Key Numeric Function Shift Alpha Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.1" (231mm)
  • Weight: 25 oz - Includes Battery, Scanner and Radio

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 6' To Concrete Multiple at -20° C to 50° C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: Region: Worldwide
  • Package Contents: MC9090-G Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Agency Approvals

  • Agency Approvals: Electrical Safety: Certified to UL60950-1 CSA C22.2 No. 60950-1 EN60950-1 IEC 60950-1 EMI/RFI: FFC Part2(SAR) FCC Part 15 RSS210 EN 300 328 EN 301 487 EN55022 EN55024 Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details
