Newer Version Is Available

MC9190-Z, Wi-Fi (802.11a/b/g), RFID Reader, Handheld, 2D Imager Scanner, Color, 256MB/1GB, 53 key Keypad, Windows Mobile 6.5, Bluetooth, US Frequency-based, ETSI 302-208. Interface cables and charging cradle sold separately.
$4,395.00 $3,164.40
Ships Today
Free Shipping
- +

Product was successfully added to your shopping cart.
147584 Symbol

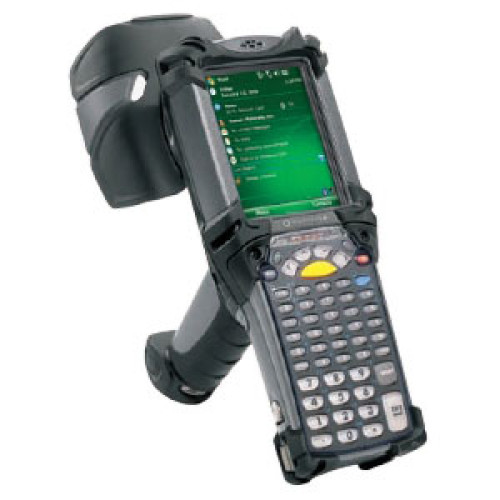

MC9090-GK0HJEQZ4ER - Symbol Motorola MC9090-G RFID RFID Reader

Motorola MC9090-G RFID, MC9090-Z RFID Imager 64/128 53 key Windows Mobile 6.1 Bluetooth 802.11a/b/g EU Only
Free Shipping


The Motorola MC9090-G RFID rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the Motorola MC9090-G RFID is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The Motorola MC9090-G RFID with Bluetooth supports wireless printing and use of wireless headsets. Those with scan intensive applications such as price audits and inventory management will enjoy the comfort of the pistol grip handle. The Motorola MC9090-G RFID gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy this single device in many business areas.
  • 3.8 inch large, bright, color display with backlit keypad - Allows easy viewing in many environments, such as ambient light
  • Extremely rugged design withstands multiple 6 ft. drops (1.8 m) to concrete, 2,000 1 m tumbles (4,000 hits) - Ensures less down time due to accidental drops
  • Intel XScaleTM PXA255 processor at 400 MHz - Delivers high-speed CPU performance for robust enterprise applications, including multimedia
  • IP64 sealing rating (electronic enclosure) - Protects against water and dust to ensure reliable performance in rough conditions
  • Modular 43- and 53 key field-replaceable keyboard options - Provides multiple modes of data entry for maximum efficiency
  • RS-232/USB client or wireless LAN communications - Enables real-time data exchange for maximum productivity
  • Variable range scan engine - Allows short- (4 in./0.10 m) or long-range (40 ft./12.2 m) barcode scanning in one device

Additional Information

Style Handheld
Manufacturer Symbol

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-Z
  • Product Name: MC9090-Z Handheld RFID Reader

Physical Characteristics

  • Height: 7.7"
  • Width: 4.7"
  • Depth: 10.8"
  • Weight (Approximate): 2.21 lb


  • Maximum Read Distance: 10 ft
  • Maximum Write Distance: 24"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 868 MHz
  • Minimum Read Distance: 2.40"
  • Minimum Write Distance: 12"
  • Minimum Operating Frequency: 865 MHz


  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale


  • Operating System: Windows Mobile 6.1
