46413 Symbol

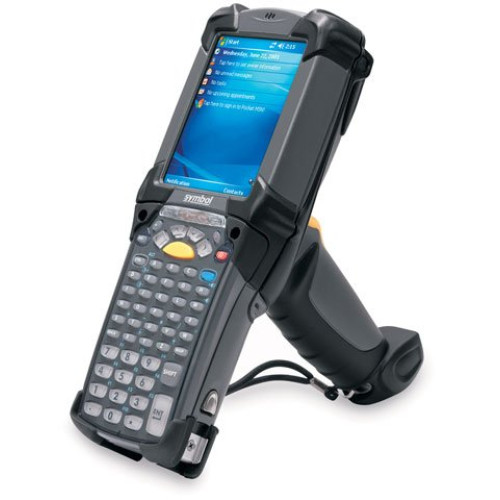

MC9090-GK0HJJFA6WR - Symbol MC9090-G Handheld Computer

MC9090-G, Wi-Fi (802.11a/b/g), 2D imager, Windows Mobile 5.0, 64MB RAM/128MB ROM, 53-5250 Emulation Key, Bluetooth.
InStock
Free Shipping

Description

The MC9090-G rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the MC9090-G is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The MC9090-G with Bluetooth supports wireless printing and use of wireless headsets. Those with scan intensive applications such as price audits and inventory management will enjoy the comfort of the pistol grip handle. The MC9090-G gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy this single device in many business areas.
  • 3.8 inch large, bright, color display with backlit keypad - Allows easy viewing in many environments, such as ambient light
  • Extremely rugged design withstands multiple 6 ft. drops (1.8 m) to concrete, 2,000 1 m tumbles (4,000 hits) - Ensures less down time due to accidental drops
  • Intel XScaleTM PXA255 processor at 400 MHz - Delivers high-speed CPU performance for robust enterprise applications, including multimedia
  • IP64 sealing rating (electronic enclosure) - Protects against water and dust to ensure reliable performance in rough conditions
  • Modular 43- and 53 key field-replaceable keyboard options - Provides multiple modes of data entry for maximum efficiency
  • RS-232/USB client or wireless LAN communications - Enables real-time data exchange for maximum productivity
  • Variable range scan engine - Allows short- (4 in./0.10 m) or long-range (40 ft./12.2 m) barcode scanning in one device

Additional Information

RAM Memory 64 MB
Operating System Windows CE 5.0 Pro
Style Gun
Network Connectivity 802.11a/b/g
Display Resolution 240 x 320
Scanner Type Imager
Data Collection Type Wireless
Manufacturer Symbol

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Composite AB
    • Composite C
    • Coupon Code
    • Data Matrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • Maxi Code
    • MSI
    • PDF-417
    • QR Code
    • RSS Expanded
    • RSS Limited
    • RSS-14
    • TLC39
    • Trioptic 39
    • UPC/EAN supplementals
    • UPCA
    • UPCE
    • US Planet
    • US Postnet
    • Webcode
    • Australian 4-state
    • Canadian 4-state
    • Japanese 4-state
    • UK 4-state

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Mobile Computer

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.1"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FFC Part2(SAR)
    • FCC Part 15
    • RSS210
    • EN 300 328
    • EN 301 487
    • EN55022
    • EN55024
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Region: Worldwide
    • Environmental Sealing: IP64 (electronic enclosure, display and keypad)
    • Tumble: 2,000 one-meter tumbles at room temperature (4,000 drops)
    • Communication: Audio
    • Keypad: 5250

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 5.0 Premium Edition

Keyboard/Keypad

  • Number of Keys: 53

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
